Right I/O Slave Board Block Diagram SP1D2
Page
SAMSUNG TECHWIN
309
SP1

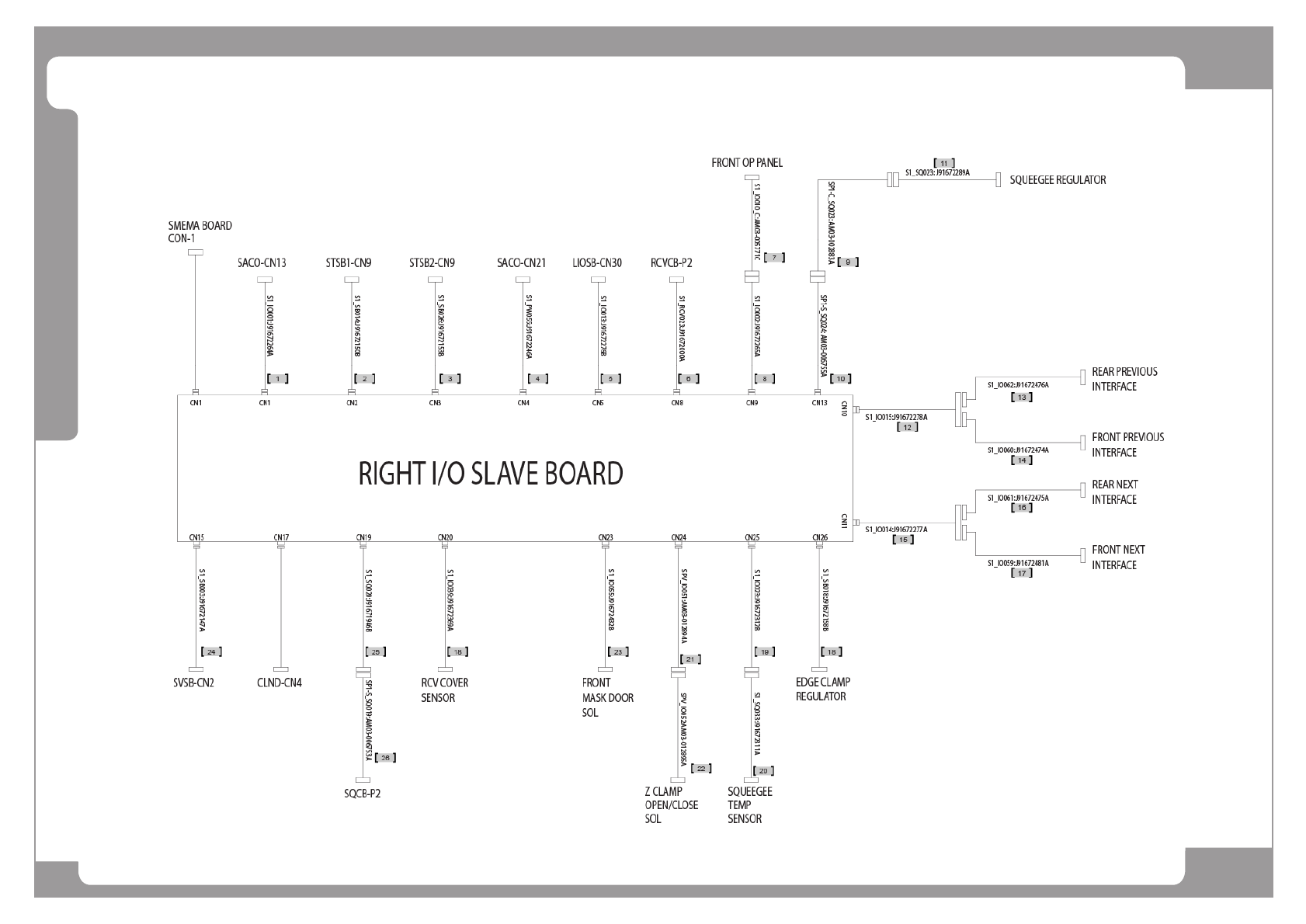

Right I/O Slave Board Block Diagram SP1D2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672264A SACO_CN13_CABLE_ASSY S1_IO001 1
2 J91672150B R_IOSB_STSB1_IO_CABLE_ASS'Y 1
3 J91672153B R_IOSB_STSB2_IO_CABLE_ASS'Y 1
4 J91672246A SAFETY_CONTROL_CN21_CABLE_ASSY S1_PW055 1
5 J91672276B IOSB_CUNET_CABLE_ASSY 1
6 J91672000A RCVCB_OUT_CABLE_ASSY S1_RCV023 1
7 AM03-005771C SP1_FRONT_OP_PANEL_C 1
8 J91672265A RIOSB_CN9_CABLE_ASSY S1_IO002 1
9 AM03-002883A CABLE ASSYSQG_REGULATOR_CABLE_ASSY 1
10 AM03-006755A SQG_REGULATOR_EXT_CABLE_ASSY 1
11 J91672289A SQG_REGULATOR_CABLE_ASS'Y S1_SQ023 1
12 J91672278A PREVIOUS_INTERFACE_CABLE_ASSY S1_IO015 1
13 J91672476A FRONT_PRE_IF_CABLE_ASS'Y 1
14 J91672474A FRONT_NEXT_IF_CABLE_ASS'Y 1
15 J91672277A NEXT_INTERFACE_CABLE_ASSY S1_IO014 1
16 J91672475A REAR_NEXT_IF_CABLE_ASS'Y 1
17 J91672481A REAR_PRE_IF_CABLE_ASS'Y 1
18 J91672158B CLND_R_IOSB_COMMAND_CABLE_ASSY 1
19 J91672312B SQ_TEMP_HUM_EXT_CABLE_ASSY 1
20 J91672311A SQ_TEMP_HUM_CABLE_ASSY S1_SQ033 1
21 AM03-012894A SPV_Z_CLAMP_EXT 1
22 AM03-012895A SPV_Z_CLAMP_SOL 1
23 J91672432B FRONT_MASK_DOOR_SOL_CABLE_ASS'Y 1
24 J91672147A R_IOSB_SVSB_IO_CABLE_ASS'Y S1_SB003 1
25 J91671946B SQCB_OUT_EXT_CABLE_ASSY 1
26 AM03-006753A SQCB_OUT_CABLE_ASSY 1
