SP1
Mask Ass’y (Right)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70661382A MASK_BTM_PLATE_L J70661382A 1
2 J70661384A MASK_SIDE_PLATE1 J70661384A 1 SP1 OPTION
3 J70661385A MASK_SIDE_PLATE2 J70661385A 1 SP1 OPTION
4 FC30-000053A PLATEMASK_F_GUIDE;ME1:Steel 2 J72651243A SP1 OPTION
5 J72651297A MASK_GIDBAR_TOP J72651297A 2 SP1 OPTION
6 FC30-002557A PLATE-PUSH SPRING PLATE 4 J70651398C
6-1 FC09-000761A BRACKETPL_SPRING 1 ONLY FOR SP1D2
7 J70653638A EX_MASK_MOUNT_BKT J70653638A 3
8 J71651592A MASK_GID_FRM_R J71651592A 1
8-1 FC30-001904B EX_MASK_GUIDE_FRM_R 1 ONLY FOR SP1D2
9 J72651241A MASK_GIDBAR_R 1
FC30-000054A PLATEMASK_RIGHT_G;ME1:Steel 1 ONLY FOR SP1D2
10 FC18-903195 PROFILE MOUNT [DIA4.0] 5
11 HP06-900194 ELBOW_FITTING SQL04M5AW 2
12 HP06-900197 UNION_Y_FITTING SQU0400W 2
13 HP14-900107 SPEED_CONTROLLER SP1211FM504 2
14 J71651589A MASK_CLAMP_BLOCK J71651589A 1
15 J71651590B MASK_CLAMP_ADAPT 1
16 FC10-000037A PAD,CHOCKSP1_MASK_CLAMP_PAD 1
17 M4*6(SUS) FLAT HEAD CAP SCREW 5
18 HP03-900098 CYLINDER TCDQ2B2020D 1
19 FC07-001699A BLOCK-PHSH BEARING BLOCK 4
20 MC19-001146A SHAFT-BEARING SHAFT 4
21 J6601125A BEARING[MR84ZZ(EZO)] 4
Page
SAMSUNG TECHWIN
66
SP1
Conveyor Entry Shuttle (1/2)
Page
SAMSUNG TECHWIN
67
SP1
Conveyor Entry Shuttle (1/2)

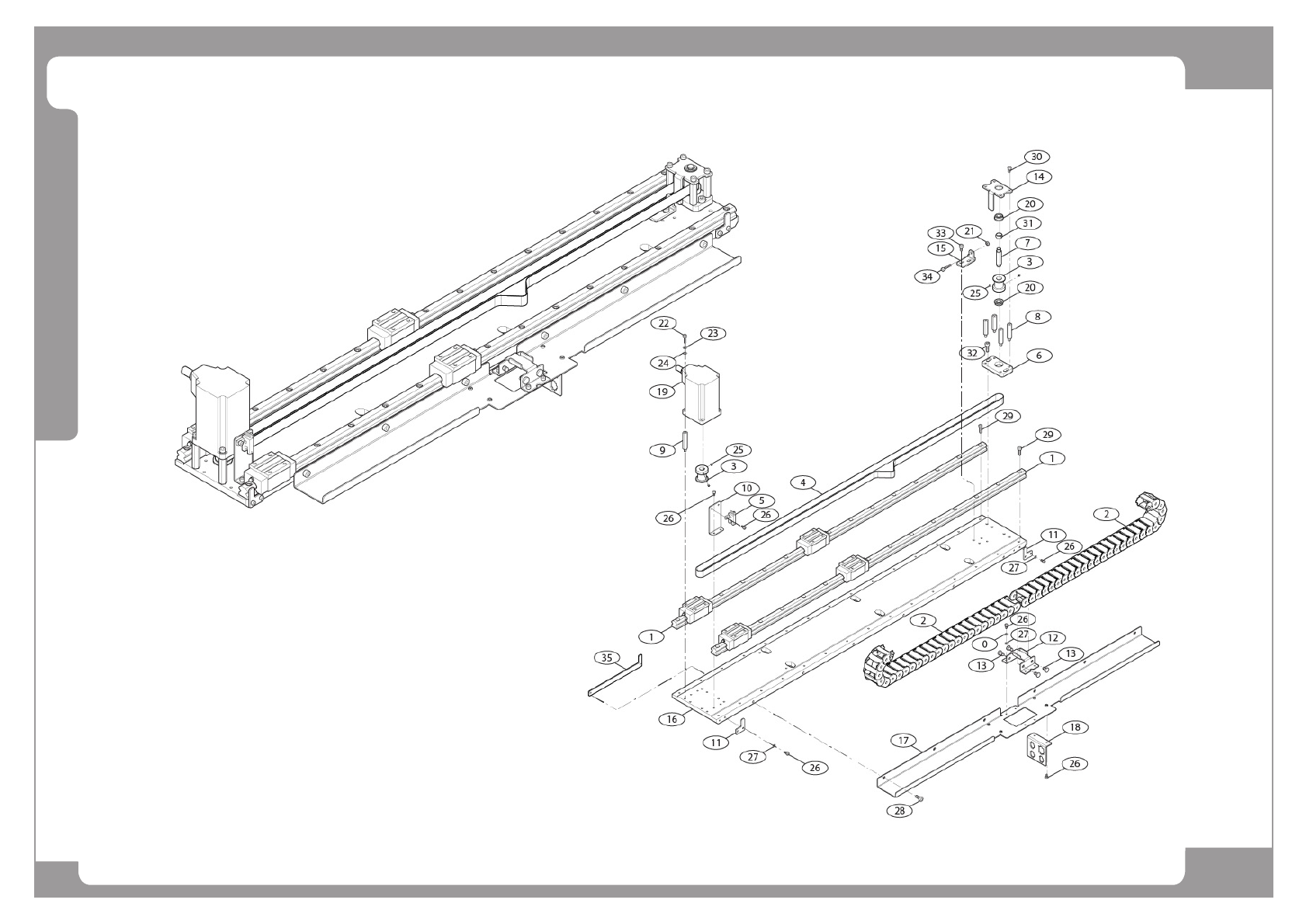

NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 MC13-900071 LM_GUIDE_860L 2
MC13-000155 BLOCK,GUIDELM_GUIDE_SBG15SL2K1560LN 2 ONLY FOR SP1S
2 EP03-000154 CABLE VEYOR 2 EP03-900071
MC14-000039 CHAIN,CONVEYORHSP 0180 2BN28R 2 ONLY FOR SP1S
3 J71531205A PULLEY10_P27_15 10_2GT_P27_15 2
4 MC05-900152 TIMING_BELT_2GT 17202GT15(OPEN TYPE) 1
MC05-000024A TIMING BELT11202GT15 1 ONLY FOR SP1S
5 EP19-900109 PHOTO SENSOR 1
6 J70531390A SHUTTLE_PULLEY_BASE J70531390A 1
7 J70531392A SHUTTLE_PULLEY_SHAFT J70531392A 1
8 J70531400B HEX_BAR_M4_L32_5_B 4
9 J70531401B HEX_BAR_M4_L37_B 4
10 J70531402A SHUTTLE_HOME_SENSOR_BKT J70531402A 1
11 J70661476A S1_SHUTTLE_STOP_PLATE J70661476A 2
12 J70531503A 180RINK_FIX_BKT J70531503A 1
13 J70531504A 180RINK_FIX_SHAFT J70531504A 4
14 J70531569A SHUTTLE_PULLEY_FIX_COVER J70531569A 1
15 J70531570A SHUTTLE_BELT_TENSION_BKT J70531570A 1
16 J70531674A SHUTTLE_BASE J70531674A 1
FC05-000196A BASESP1SSHUTTLE_BASE 1 ONLY FOR SP1S
17 FC09-004402A PLATESHUTTLE_CABLEVEYOR_PLATE 1 J70531697C /FC30-000458A
FC09-002041A BRACKETSHUTTLE_CABLEVEYOR_PLATE 1 ONLY FOR SP1S
18 J70531698A SHUTTLE_CONNECTOR_BKT J70531698A 1
19 EP08-900127 SERVO_MOTOR_PB PBM565DXC26 1
20 MC03-900081 BEARINGFL688ZZMISUMI FL688ZZ 2
21 M4 HEX_NUT 1
22 M4*15 (BL/ZN) SOCKET HEAD CAP SCREW 4
