Page SAMSUNG TECHWIN 27 SP1 Cleaner Ass’y SP1S /SP1D2 (3/3) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference
Page
SAMSUNG TECHWIN
26
SP1

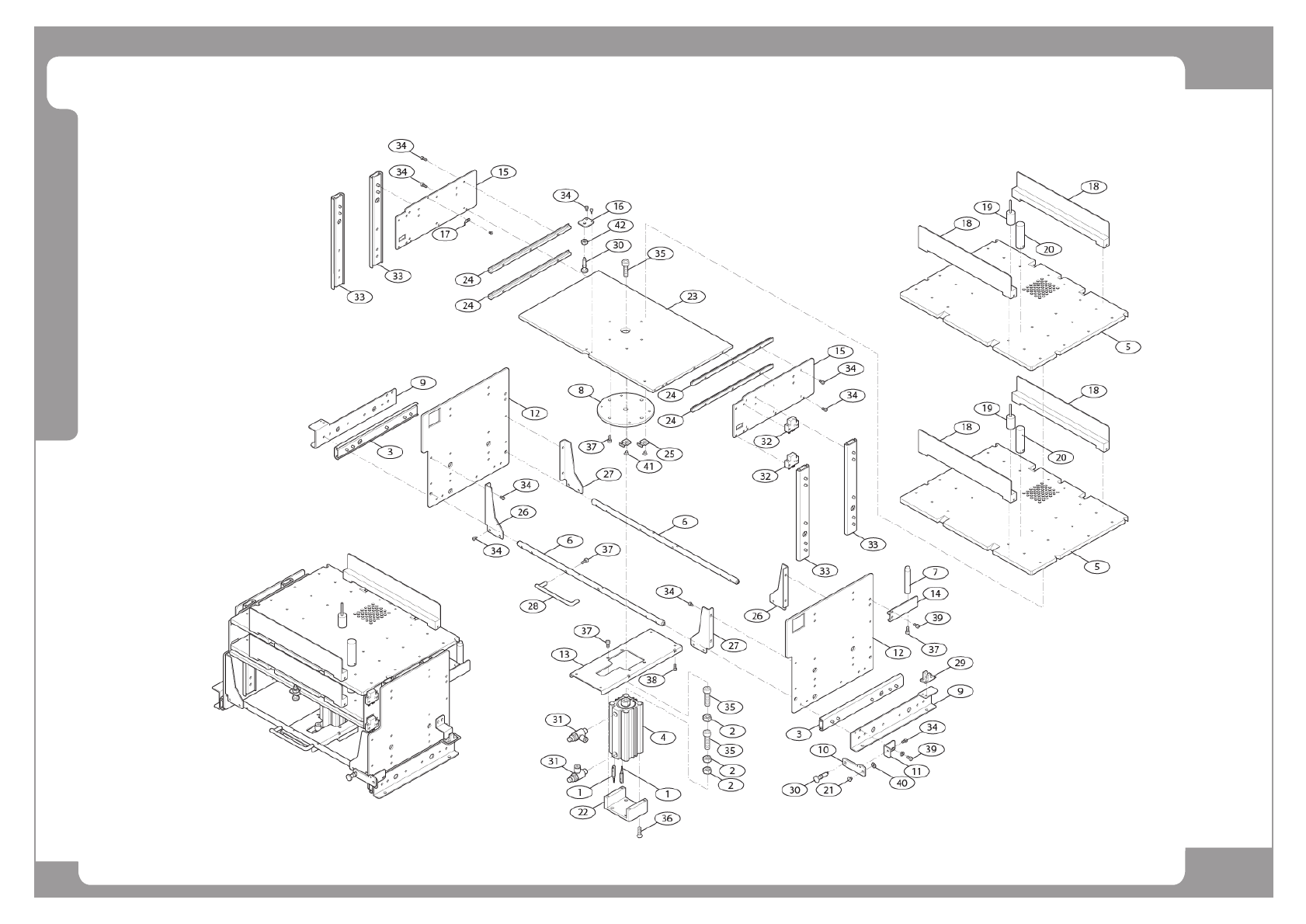

Cleaner Ass’y SP1S /SP1D2 (3/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 HP03-000064 CYLINDERAQ2B1215D;dual,5 bar,15,12 2
29 HP06-900194 ELBOW_FITTING SQL04M5AW 5
30 M4*8 (BL/Zn) FLAT HEAD CAP SCREW 11
31 M3*10 (BL/Zn) SOCKET HEAD CAP SCREW 8
32 M3*25 (BL/Zn) SOCKET HEAD CAP SCREW 6
33 M4*12 (NI/ZN) SOCKET HEAD CAP SCREW 4
34 M4*10 (BL/ZN) SOCKET HEAD CAP SCREW 2
35 M3*35 (BL/ZN) SOCKET HEAD CAP SCREW 8
36 M3*20 (BL/Zn) SOCKET HEAD CAP SCREW 2
37 M3*6 (BL/ZN) SOCKET HEAD CAP SCREW 8
38 M3*15 (BL/Zn) SOCKET HEAD CAP SCREW 1
39 M3 HEX NUT 2
40 M3*5 (BL/Zn) SOCKET_SET_SCREW 2
41 M3*30 (BL/ZN) SOCKET HEAD CAP SCREW 2
42 M3X10 (BL/Zn) FLAT HEAD SOCKET SCREW 8
43 M5*10 (BL/ZN) SOCKET HEAD CAP SCREW 22
44 FC07-000258A BLOCKCL HOLD BLK 1
Page
SAMSUNG TECHWIN
27
SP1
Cleaner Ass’y SP1S /SP1D2 (3/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
28
SP1
ATC Ass’y SP1 OPTION
