SP1_TRM(Ver6.8_CS14.25).pdf - 第302页
Page SAMSUNG TECHWIN 290 SP1 Left I/O Slave Board Block Diagram
Page
SAMSUNG TECHWIN
289
SP1
Left C/V Cross Board (2/2) SP1D2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672438B REAR_MASK_DOOR_SOL_CABLE_ASS'Y 1
2 J91672813A MASK_DOOR_SOL_EXT_CABLE_ASSY S1_IO077 1
3 AM03-006790A CABLE ASSYST_XLIMIT_EXT_CABLE_ASSY 1
4 AM03-002825A CABLE ASSYST_XLIMIT_CABLE_ASSY 1
5 AM03-002828A CABLE ASSYST_Y1LIMIT_CABLE_ASSY 1
6 AM03-002834A CABLE ASSYST_Z+LIMIT_CABLE_ASSY 1
7 AM03-002835A CABLE ASSYST_ZLIMIT_CABLE_ASSY 1
8 AM03-003075A CABLE ASSYST_Z_HOME_EXT_CABLE_ASSY 1
9 AM03-002836A CABLE ASSYST_Z_HOME_CABLE_ASSY 1
10 AM03-013334A CABLE ASSYMASK_FRM_CHK_STG30 1
11 AM03-013332A CABLE ASSYMASK_FRM_CHK_RF30 1
12 J91672031A MA_FRAME_CHECK_RR_EXT_CABLE_ASSY 1
13 AM03-013333A CABLE ASSYMASK_FRM_CHK_RR30 1
14 AM03-001533A R_DOOR_MASK_OPEN_EXT_CABLE_ASS'Y 1
15 AM03-001531A CABLE ASSYDoor_Mask_Open_Cable 1
Page
SAMSUNG TECHWIN
290
SP1

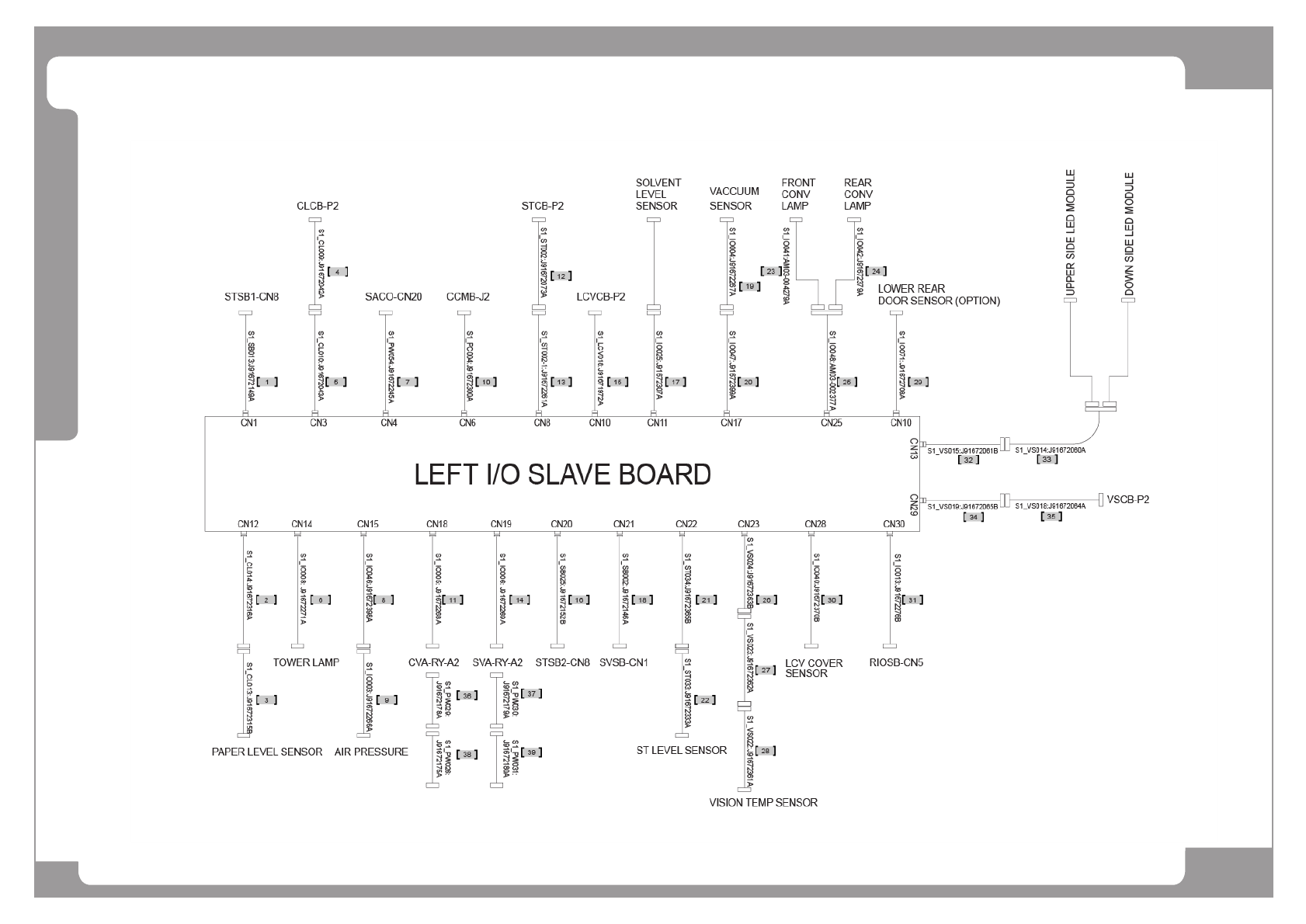

Left I/O Slave Board Block Diagram
Page
SAMSUNG TECHWIN
291
SP1
Left I/O Slave Board Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672149A L_IOSB_STSB1_IO_CABLE_ASS'Y S1_SB013 1
2 J91672316A PAPER_LEVEL_CHECK_EXT_CABLE_ASSY S1_CL01 1
3 AM03-008066A PAPER_LEVEL_CHECK_CABLE_ASSY 1 J91672315A
4 J91672042A CLCB_IO_CABLE_ASSY S1_CL009 1
5 J91672043A LIOSB_TO_CLCB_IO_CABLE_ASSY SQ_CL010 1
6 J91672429A TOWER_LAMP_CABLE_ASSY S1_IO008 1
7 J91672245A SAFETY_CONTROL_CN20_CABLE_ASSY S1_PW054 1
8 J91672398A AIR_DOWN_EXT_CABLE_ASSY S1_IO046 1
9 J91672266A AIR_PRESSURE_DOWN_CABLE_ASSY S1_IO003 1
10 J91672300A CCMB_CUNET_CABLE_ASS'Y S1_PC004 1
11 J91672268A LIOSB_CN18_CABLE_ASSY S1_IO005 1
12 J91672073A STCB_L_IOSB_INTER_CABLE_ASS'Y S1_ST002 1
13 J91672261A STCB_L_IOSB_INT_EXT_CABLE_ASS'Y S1_ST002 1
14 J91672269A LIOSB_CN19_CABLE_ASSY S1_IO006 1
15 J91671972A LCVCB_OUT_CABLE_ASSY S1_LCV018 1
16 J91672152B L_IOSB_STSB2_IO_CABLE_ASS'Y 1 J91672152A
17 J91672307A SOLVENT_LEVEL_CHK_EXT_CABLE_ASSY S1_IO02 1
18 J91672146A L_IOSB_SVSB_IO_CABLE_ASS'Y S1_SB002 1
19 J91672267A VACUMM_SENSOR_CABLE_ASSY S1_IO004 1
20 J91672399A VACUUM_SENSOR_EXT_CABLE_ASSY S1_IO047 1
21 J91672365B ST_LEVEL_SEN_AMP_EXT_CABLE_ASS'Y 1 J91672365A SP1S OPTION
22 J91672333A ST_LEVEL_SENSOR_AMP_CABLE_ASS'Y S1_ST033 1
23 AM03-004279A FRONT_CONV_LAMP_CABLE_ASS'Y S1_IO041 1
24 J91672379A REAR_CONV_LAMP_CABLE_ASS'Y S1_IO042 1
25 AM03-002377A CONV_LAMP_EXT_CABLE_ASSY 3
26 J91672363B VS_THERMOMETER_LIOSB_CABLE_ASSY 3 J91672363A SP1 OPTION
27 J91672362A VS_THERMOMETER_EXT_CABLE_ASSY S1_VS023 1 SP1 OPTION
