Page SAMSUNG TECHWIN 11 2 SP1 Stage UVW table
Page
SAMSUNG TECHWIN
111
SP1
Stage BUT SP1S /SP1D2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J71651742A SUPPORT_BLOCK J71651742A 2
2 FC30-000410A PLATEBUT_BASE 1
3 J71651743A SUPPORT_PIN_N J71651743A 1
4 J71651744A SUPPORT_PIN_T J71651744A 1
5 HP06-900086 FITTING_M5HL6_SMP300 M5HL6 4
6 FC18-000531 O_RING P29.5 1
7 FC18-000532 O_RING P25 12
8 FC18-000533 CLAMPZ_CLAMP 4
9 J70631011A AIR_SHAFT_HOUSING J70631011A 4
10 J70631020A STAGE_CLAMP_SPRING J70631020A 4
11 FC30-000412A PLATESPRING_PLATE 4
12 FC30-000411B PLATEZ_SENSOR_DOG 1 FC30-000411A
FC30-000411B PLATEZ_SENSOR_DOG 1 ONLY FOR SP1D2
13 FC10-000038A CUSHION,RUBBERZ_CLAMP_CUSHION 1
Page
SAMSUNG TECHWIN
112
SP1

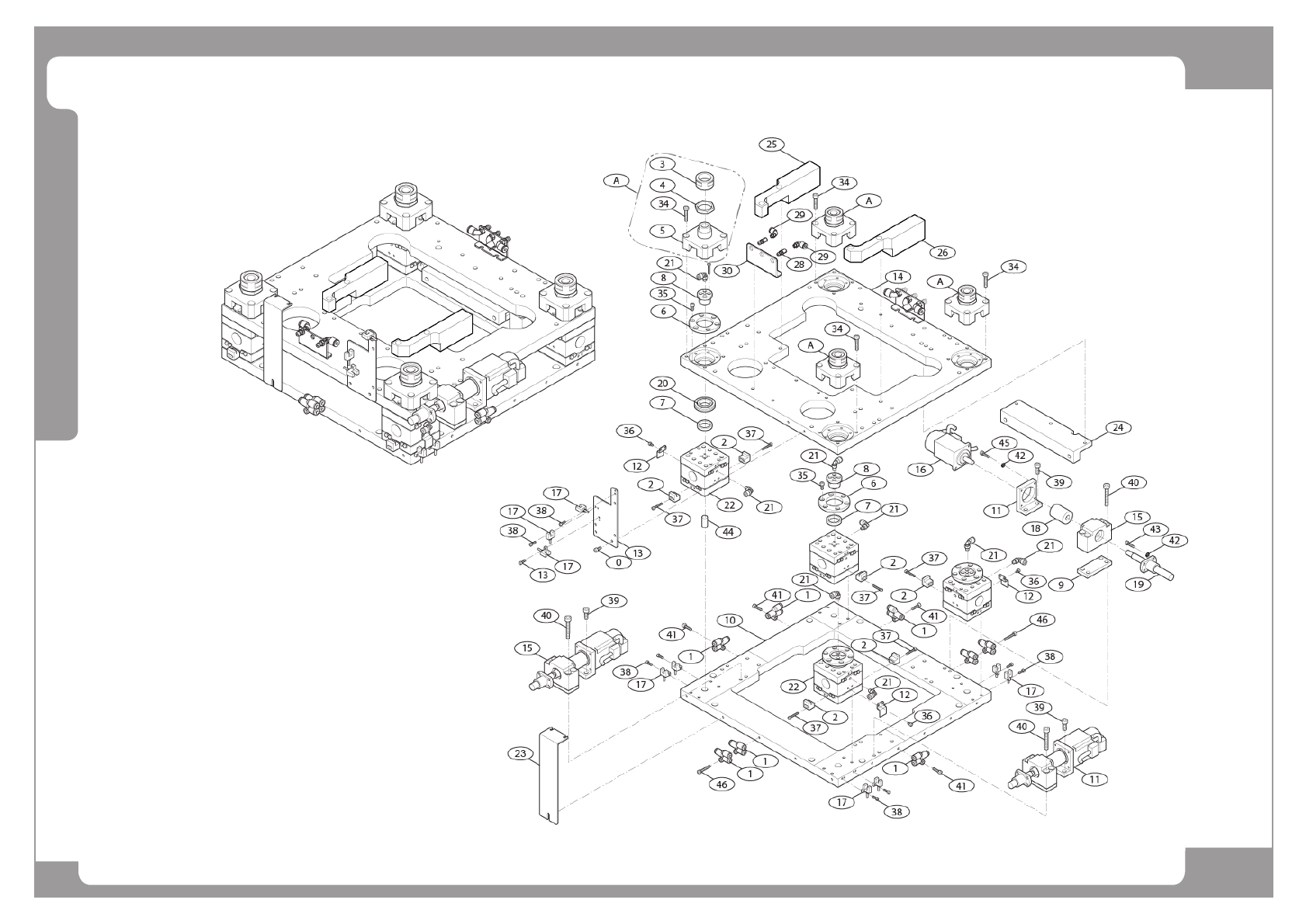

Stage UVW table
Page
SAMSUNG TECHWIN
113
SP1
Stage UVW table
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 HP06-900197 UNION_Y_FITTING SQU0400W 4
2 J70631009A STOPPER_UVW J70631009A 6
3 J70631013A Z_SUPPORT_BLOCK_UPPER J70631013A 4
4 J70631014A Z_SUPPORT_BLOCK_NUT J70631014A 4
5 J70631015A Z_SUPPORT_BLOCK J70631015A 4
6 J70653204A CRB_CAP J70653204A 4
7 J70653205A 31CRB_SPACER J70653205A 4
8 J70653206A CROSS_ROLLER_BRG_PIVOT J70653206A 4
9 J70653208A SPACER2_SUP_UNIT_UWV J70653208A 3
10 J70653209A UVW_BOTTOM_PLATE J70653209A 1
11 J70653210A UVW_MOTOR_SUPPORT J70653210A 3
12 J70653225A UVW_SENSOR_DOG J70653225A 3
13 J70653494A Z_SENSOR_PLATE J70653494A 1
14 J71651728A UVW_TOP_PLATE J71651728A 1
15 MC04-900020 SUPPORT_UNIT BK10 3
16 EP08-900128 SERVO_MOTOR CSMT01BR1ANT3 3
17 EP19-900141 EESX912R EESX912R 9
18 FC14-900264 COUPLING KSCWBS2288 3
19 MC13-900188 BALL_SCREW DP1202JSHDNR0110X0050 3
20 MC13-900138 CROSS_ROLLER_RING RE2008UUCC0 3
21 HP06-900078 ELBOW_UNION KQ2L04M6 8
22 J90651747A CROSS_ROLLER_TABLE J90651747A 1
23 FC30-000437A PLATELOCKING_PLATE 1
24 FC29-003821A Z_MOTOR_BASE_BKT J71621007A 1 J71621007A
25 FC29-002126A STOPPERSP1Z_BASE_STOPPER_R 1
26 FC29-002128A STOPPERSP1Z_BASE_STOPPER_L 1
27 MC13-900139 CROSS_ROLLER_RING RE2008UUC0 1
