Page SAMSUNG TECHWIN 344 SP1 Left Conveyor Bracket Block Diagram
Page
SAMSUNG TECHWIN
343
SP1
Cleaner Bracket Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-002976A CL_PAPER_MOTOR_CABLE_ASSY S1_CL001 1 J91672034A SP1S OPTION
2 J91672044A CLCB_POWER_CABLE_ASSY S1_CL011 1
3 J91672035A CL_PAPER_MOTOR_EXT_CABLE_ASSY S1_CL002 1
4 J91672042A CLCB_IO_CABLE_ASSY S1_CL009 1
5 AM03-008066A PAPER_LEVEL_CHECK_CABLE_ASSY 1 J91672315A
6 J91672045B SACO_TO_CLCB_POWER_CABLE_ASSY 1 J91672045A
7 J91672046B CL_PAPER_MOTOR_DRV_CABLE_ASSY 1 J91672046A
8 J91672043A LIOSB_TO_CLCB_IO_CABLE_ASSY SQ_CL010 1
9 J91672316A PAPER_LEVEL_CHECK_EXT_CABLE_ASSY S1_CL01 1
Page
SAMSUNG TECHWIN
344
SP1

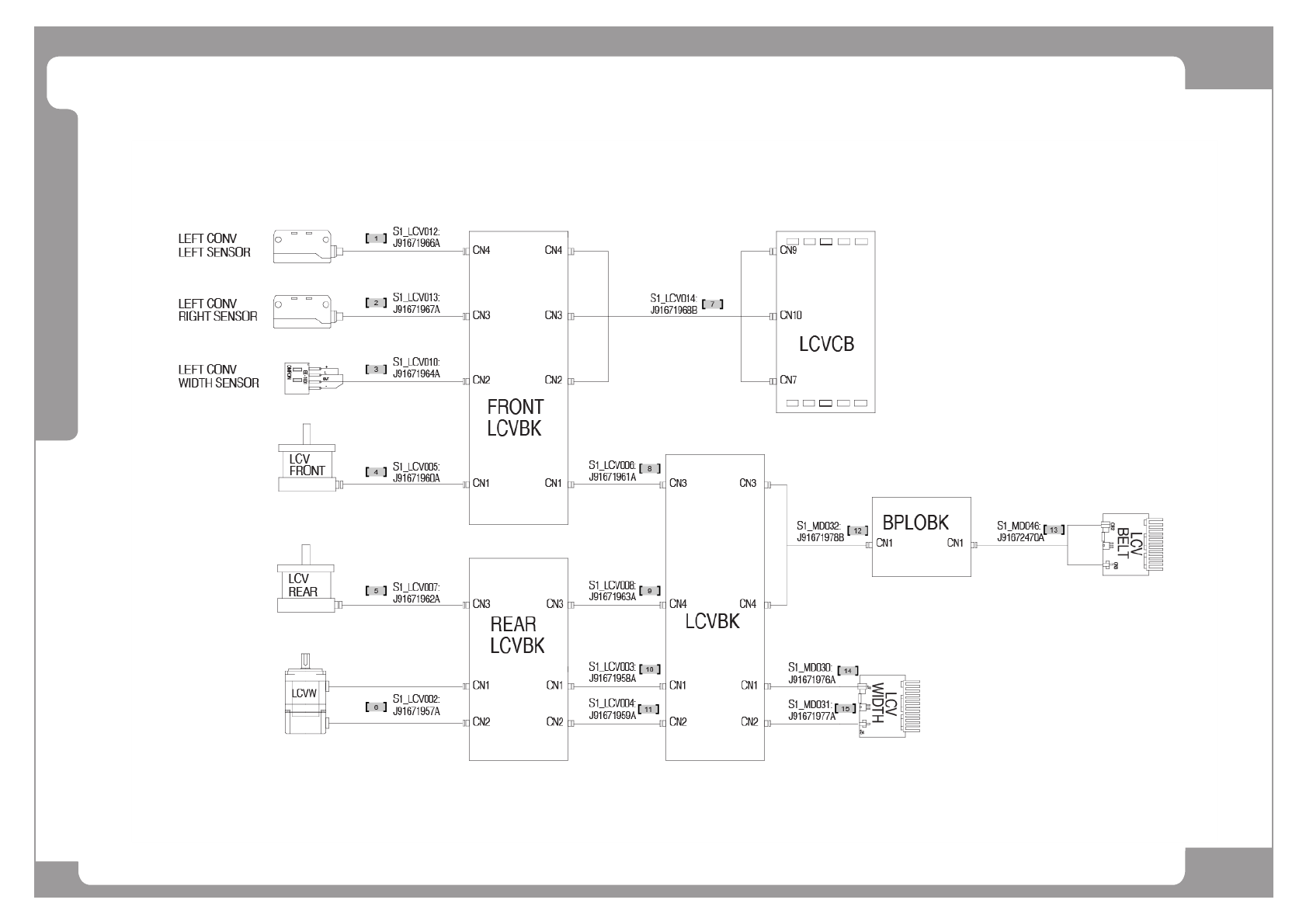

Left Conveyor Bracket Block Diagram
Page
SAMSUNG TECHWIN
345
SP1
Left Conveyor Bracket Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91671966A LEFT_CV_SENSOR_L_CABLE_ASSY S1_LCV012 1
2 J91671967A LEFT_CV_SENSOR_R_CABLE_ASSY S1_LCV013 1
3 J91671964A LEFT_CV_WIDTH_LIMIT_CABLE_ASSY S1_LCV010 1
4 J91671960A LEFT_CV_FRONT_MOTOR_CABLE_ASSY S1_LCV005 1
5 J91671962A LEFT_CV_REAR_MOTOR_CABLE_ASSY S1_LCV007 1
6 J91671957A LEFT_WIDTH_MOTOR_CABLE_ASSY S1_LCV002 1
7 J91671968B LEFT_CV_SENSORS_EXT_CABLE_ASSY 1 J91671968A
8 AM03-013542A LEFT_CV_FR_BELT_EXT_CABLE_ASSY S1_LCV006 1 J91671961A
9 AM03-013543A LEFT_CV_REAR_BELT_EXT_CABLE_ASSY S1_LCV0 1 J91671963A
10 AM03-013540A LEFT_WIDTH_M_PWR_EXT_CABLE_ASSY S1_LCV00 1 J91671958A
11 J91671959A LEFT_WIDTH_M_ENC_EXT_CABLE_ASSY S1_LCV00 1
12 J91671978B LCV_BP_BELT_EXT_CABLE_ASSY 1 J91671978A SP1 OPTION
13 J91671970A IPA_SOL_CABLE_ASSY S1_LCV016 1 SP1 OPTION
14 J91671976A LEFT_WIDTH_MOTOR_PWR_CABLE_ASSY S1_MD030 1
15 J91671977A LEFT_WIDTH_MOTOR_ENC_CABLE_ASSY S1_MD031 1
