Page SAMSUNG TECHWIN 335 SP1 Servo Slave Board Block Diagram NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 J91672165A AMC B1_SVSB_SED ES_CABLE_ASS'Y S1 _PC001 1 1A AM03-01247 6B CA BLE ASSY AMC…
Page
SAMSUNG TECHWIN
334
SP1
Servo Slave Board Block Diagram
Page
SAMSUNG TECHWIN
335
SP1
Servo Slave Board Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672165A AMCB1_SVSB_SEDES_CABLE_ASS'Y S1_PC001 1
1A AM03-012476B CABLE ASSYAMCB1_SVSB_SEDES 1 AM03-012476A ONLY FOR SP1D2
2 J91672146A L_IOSB_SVSB_IO_CABLE_ASS'Y S1_SB002 1
3 J91672147A R_IOSB_SVSB_IO_CABLE_ASS'Y S1_SB003 1
4 J91672164A SVSB_SACO_PW_CABLE_ASSY S1_SB001 1
5 J91672138A VISION_X_SERVO_CABLE_ASSY S1_SB004 1
6 J91672139A VISION_Y_SERVO_CABLE_ASSY S1_SB005 1
7 J91672140A ST_X_SERVO_CABLE_ASS'Y S1_SB006 1
8 J91672141B ST_Y1_SERVO_CABLE_ASS'Y 1 J91672141A
9 J91672142A ST_Y2_SERVO_CABLE_ASS'Y S1_SB008 1
10 J91672143A ST_Z_SERVO_CABLE_ASS'Y S1_SB009 1
11 J91672145A SQ_Y_SERVO_CABLE_ASS'Y S1_SB011 1
Page
SAMSUNG TECHWIN
336
SP1

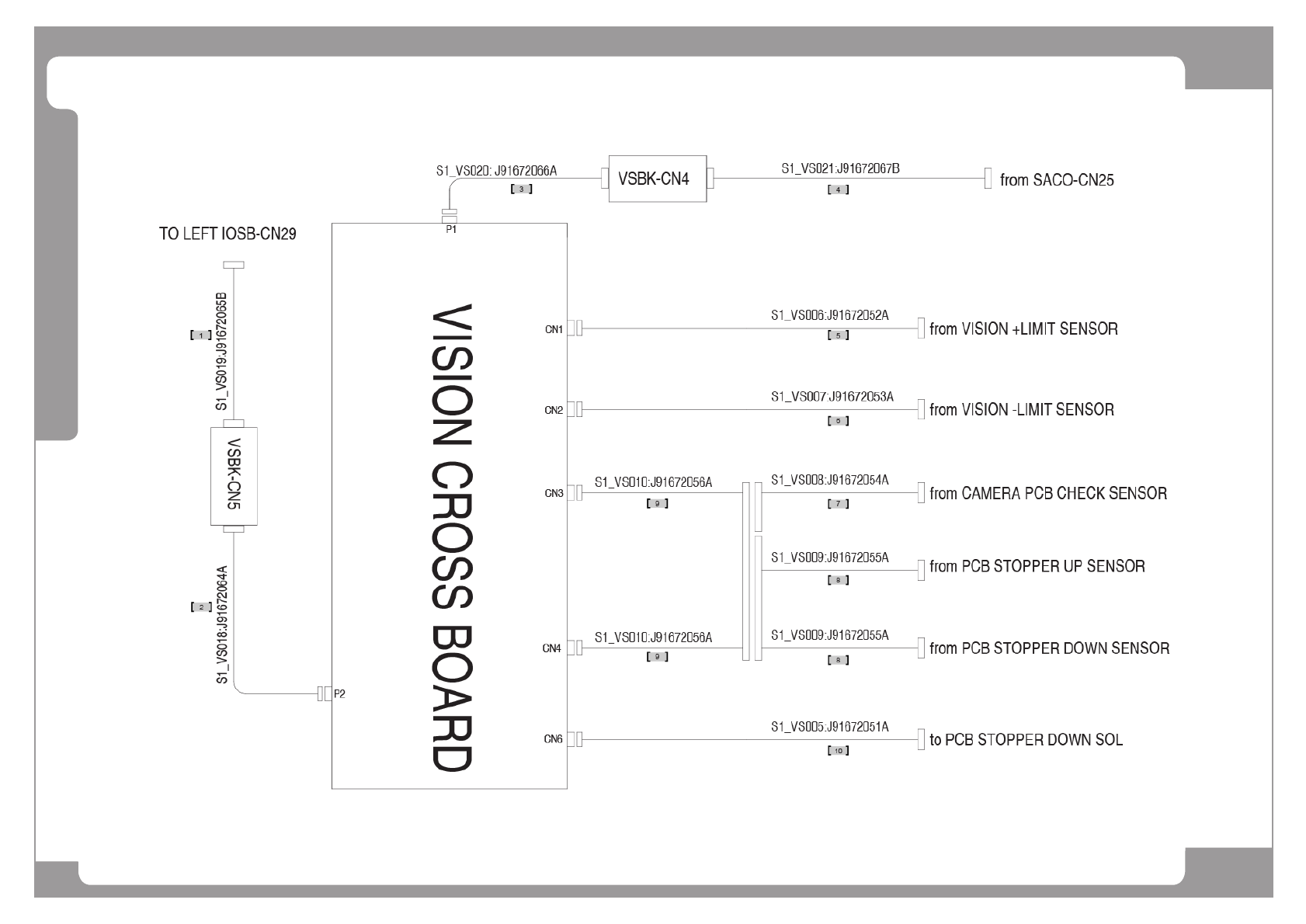

Vision Cross Board Block Diagram
