Page SAMSUNG TECHWIN 341 SP1 Bypass L/R Option Bracket Block Diagram (2/2) SP1 OPTION NO. P ART NO. P ART NAME Q'TY Old No. St oc k Apply Reference 1 J9167247 1C RCV_BP_BEL T_DR V_CABLE_ASSY 1 J9167247 1A 2 J9167246…
Page
SAMSUNG TECHWIN
340
SP1

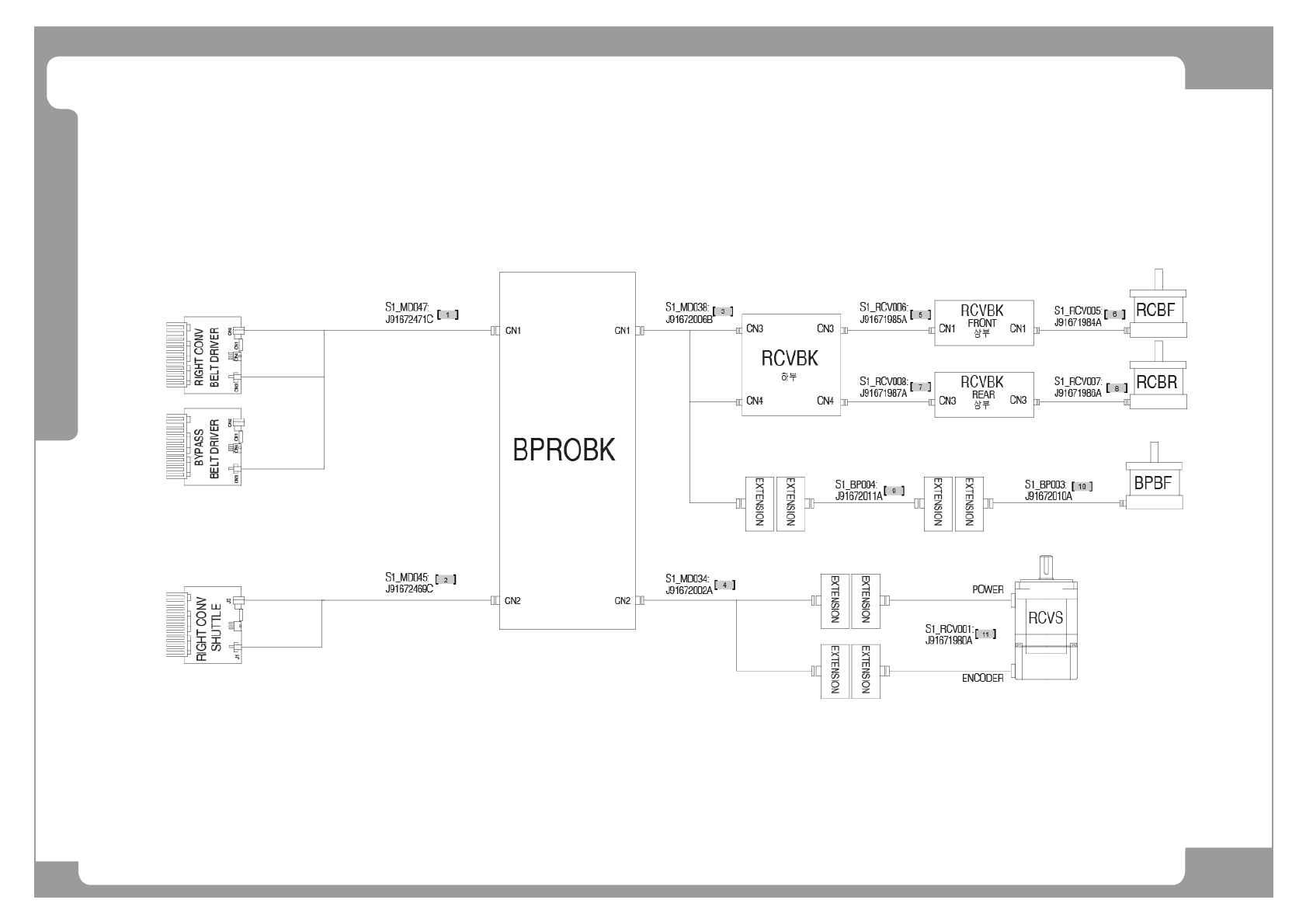

Bypass L/R Option Bracket Block Diagram (2/2) SP1 OPTION
Page
SAMSUNG TECHWIN
341
SP1
Bypass L/R Option Bracket Block Diagram (2/2) SP1 OPTION
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672471C RCV_BP_BELT_DRV_CABLE_ASSY 1 J91672471A
2 J91672469C RIGHT_SHUTTLE_DRV_CABLE_ASSY 1 J91672469A
3 J91672006B RCV_BP_BELT_EXT_CABLE_ASSY 1 J91672006A
4 J91672002A RIGHT_SHUTTLE_EXT_CABLE_ASSY S1_MD034 1
5 AM03-013549A R_CV_FRONT_BELT_EXT_CABLE_ASSY S1_RCV006 1 J91671985A
6 J91671984A RIGHT_CV_FRONT_MOTOR_CABLE_ASSY S1_RCV00 1
7 J91671987A R_CV_REAR_BELT_EXT_CABLE_ASSY S1_RCV008 1
8 J91671986A RIGHT_CV_REAR_MOTOR_CABLE_ASSY S1_RCV007 1
9 J91672011A BYPASS_REAR_BELT_EXT_CABLE_ASSY S1_BP004 1
10 J91672010A BYPASS_CV_REAR_MOTOR_CABLE_ASSY S1_BP003 1
11 J91671980A RIGHT_SUTTLE_MOTOR_CABLE_ASSY S1_RCV001 1
Page
SAMSUNG TECHWIN
342
SP1

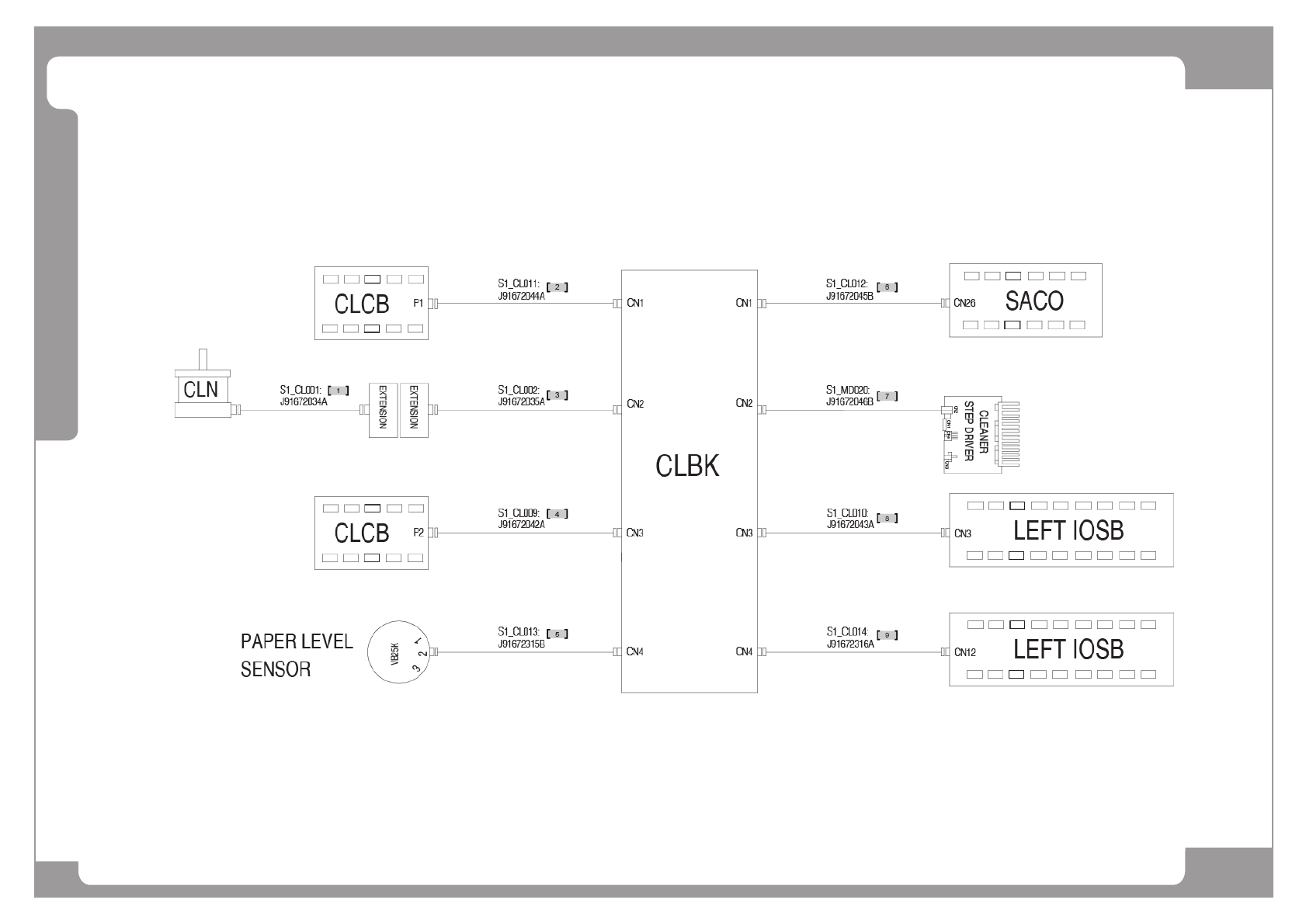

Cleaner Bracket Block Diagram
