Page SAMSUNG TECHWIN 48 SP1 Y1 Frame Ass’y
Page
SAMSUNG TECHWIN
47
SP1
Vision Ass’y SP1S /SP1D2 (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
48
SP1

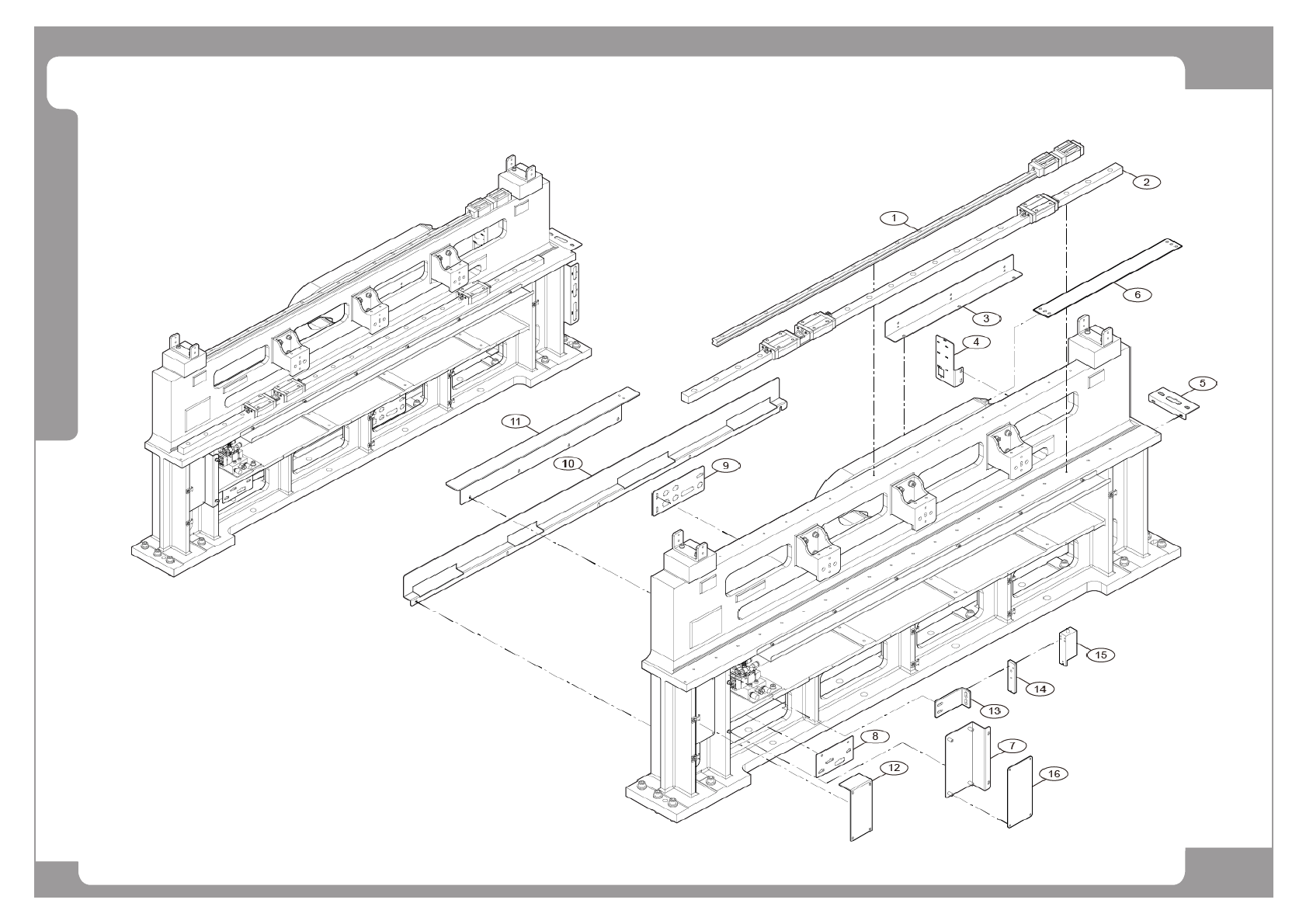

Y1 Frame Ass’y
Page
SAMSUNG TECHWIN
49
SP1
Y1 Frame Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 MC13-900089 LM_GUIDE SBG15SL2K11010N 1
MC13-000157 LM GUIDESBG15SLN2K11010NESII 1 ONLY FOR SP1D2
2 MC13-900073 Y_LM_GUIDE HSR20R4SS+1190LHII 1
MC13-000156 LM GUIDEHSR20R3SSE+1040LHII;1040,74,3 1 ONLY FOR SP1S /SP1D2
3 J70541364A Y_CABLE_GUIDE_S J70541364A 1
4 J70541362A CON_BKT_VSYBK J70541362A 1
5 J70661485A OP_CON_BKT_R J70661485A 1
6 FC36-000159A SHEET-TEFLON #7103AS;TEFLON,665,24 1
7 J70541337A CONV_CROSS_BD_BKT J70541337A 1
8 J70661487A CLN_CON_BKT J70661487A 1 ONLY FOR SP1 /SP1S
9 J70541361A CON_BKT_SLBK J70541361A 1
10 J70541364A Y_CABLE_GUIDE_S J70541364A 1
J70661495A SIDE_CABLE_COVER J70661495A 1 ONLY FOR SP1D2
11 J70541331A Y_CABLE_CHAIN_SUPPORT J70541331A 1
FC09-002149A BRACKETY_CABLE_CHAIN_SUPPORT;SPCC,t3 1 ONLY FOR SP1S
12 FC15-001207A COVERSP1Y_BOARD_COVER 1
13 FC09-002051A BRACKETCL_LOCK_BASE 1 ONLY FOR SP1D2
14 FC09-002052A BRACKETCL_LOCK_BKT 1 ONLY FOR SP1D2
15 HP14-900019 SOLENOID_LOCK LE3012(TAKIGEN) 1 ONLY FOR SP1D2
16 J91741242A S1_CVCB_BOARD_ASSY J91741242A 1
17 EP03-900064 Y_CABLE_CHAIN B17.2.063.019LK 117.2.12P 1
