Installing the MaterialManager

12 Installation Manual Material Manager V1.0

PDAServer (mandatory)

The PDA server is required to operate the mobile PDA devices. The PDA server controls the communi

cation between the single PDA devices and the central ApplicationServer and will usually be installed on

the central Material Manager server.

WebApplication (mandatory)

The WebApplication is the central GUI of the Material Manager. The WebApplication is hosted on the

Microsoft Internet Information Server (IIS) and starts over a compatible Web browser (e.g. Internet

Explorer). The WebApplication runs as HTML application completely within the browser, so there is no

need to install it on a client computer.

WebServices (optional)

The WebServices form the public interface of the SIPLACE Material Manager. The WebServices obey

the official ISA-95 and B2MML standard. E.g., the material master file or packaging units can be main

tained or retrieved via these WebServices. The WebServices are hosted on the Microsoft Internet

Information Server (IIS).

WebServicesClient (optional)

Data that has been created outside of the Material Manager (e.g. material or master data) can be

imported into the Material Manager database with the WebServicesClient.

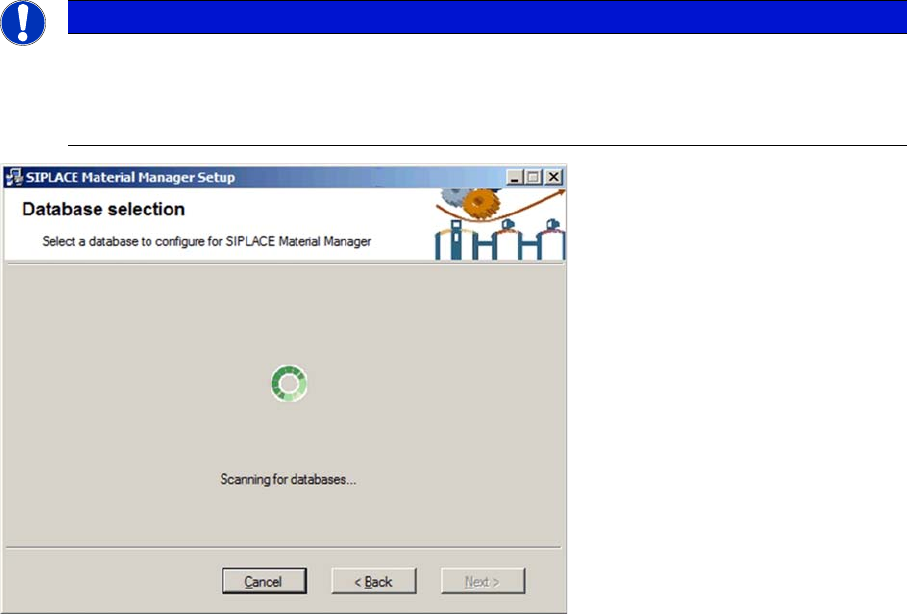

Searching for available SQL servers

The installation program searchs for already existing SQL servers in your network. Each detected SQL

server can be used as host for the Material Manager database later.

The search for SQL servers may take some minutes in a large network.

NOTICE

Optional components

The CustomerWebService, WebServices and WebServicesClient components are only

required if they have to be integrated in the system landscape of the customer. Registration

over the 3rd party portal is required.

Installing the MaterialManager

Installation Manual Material Manager V1.0 13

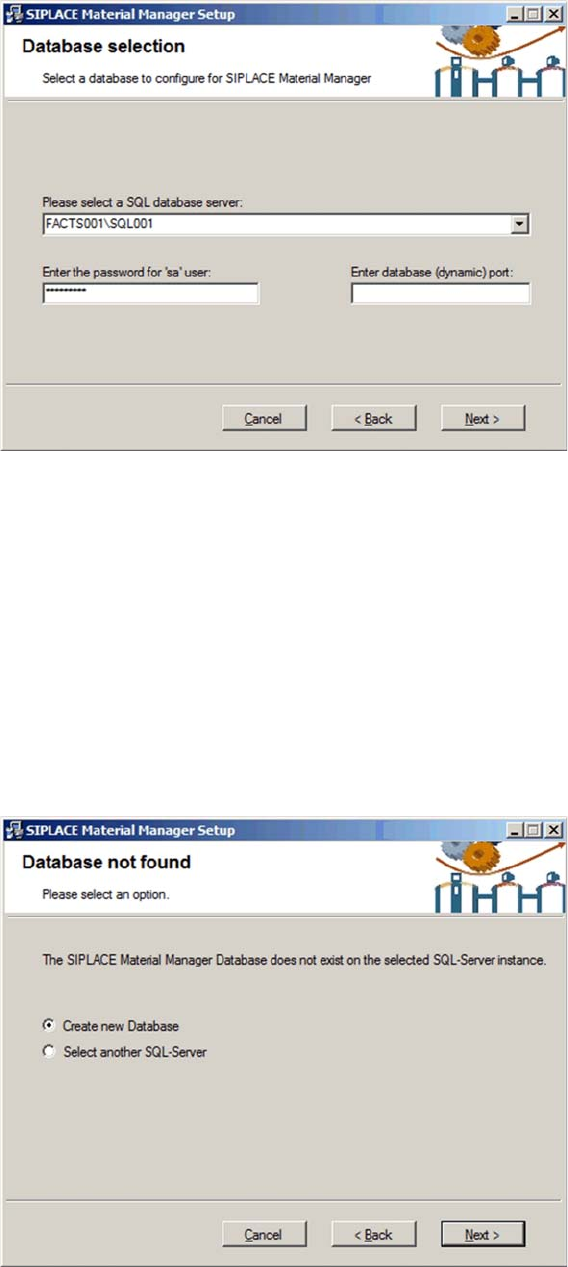

Selecting SQL server

► Select the server that you want to use as host for the Material Manager database from the drop-down

list.

► Enter the password for the "sa" user (administrator).

► Enter the port number for the database. Either you receive the port number from your system

administrator or you will find it in the Configuration Manager of the SQL server.

► Click on Next.

The installation program tries to establish a connection to the defined SQL server.

If a connection has been successfully established, the installation program checks if a Material Manager

database already exists on this SQL server. In this case, the database will be updated to the current state

(if necessary).

If no Material Manager database is available on the defined SQL server, a new one will be created.

Creating a new database

► Select the Create new Database option.

► Click on Next.

Installing the MaterialManager

14 Installation Manual Material Manager V1.0

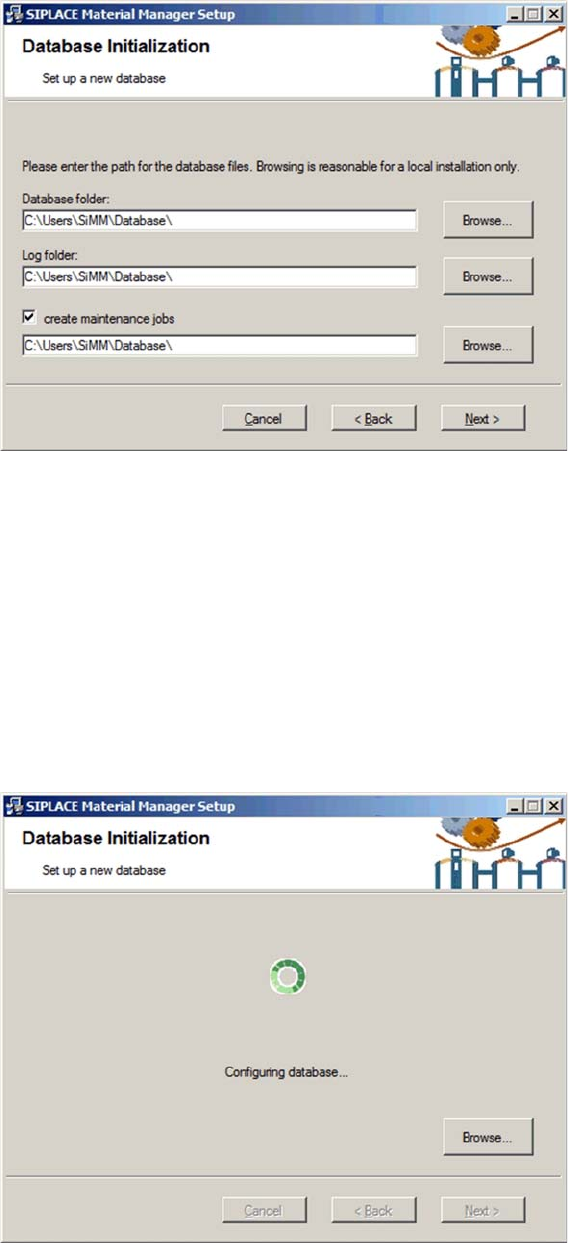

Initializing database

► Enter the folder in which the Material Manager database shall be installed under Database folder.

► Specify the folder in which the log files shall be stored under Log folder.

Routines are available in the Material Manager to help you maintaining the Material Manager database.

▪ CleanUp Consumed Lots

deletes the data of a used packaging unit after the set time.

▪ CleanUp Lot Log

deletes the history of a used packaging unit after the set time.

► Enable the Create maintenance jobs option if you want to use these routines and, in the entry field

below, specify the folder in which the log files created by the routines shall be stored.

► Click on Next.

Configuring database

The Material Manager database will be installed according to your specifications.
