Setting Up a PC for the PDA and the 2D Scanner

Configuring the PDA

Installation Manual Material Manager V1.0 33

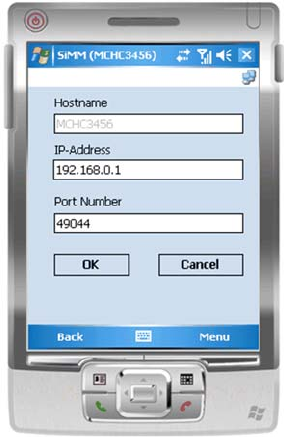

Entering IP address

The IP address of the server on which the SIPLACE Material Manager is installed has to be entered in

this dialog box.

► Enter the IP address in the IP-Address input box.

The Port Number is pre-set. If this has to be changed, ask your system administrator for the value to be

entered.

► Click on the OK button.

Setting Up a PC for the PDA and the 2D Scanner

Installing an Upgrade of the PDA Client Software

34 Installation Manual Material Manager V1.0

4.3

4.3 Installing an Upgrade of the PDA Client Software

Installing an Upgrade of the PDA Client Software

If a new version of the PDA client software gets installed on the PC, the installation program detects

whether a previous version has already been installed.

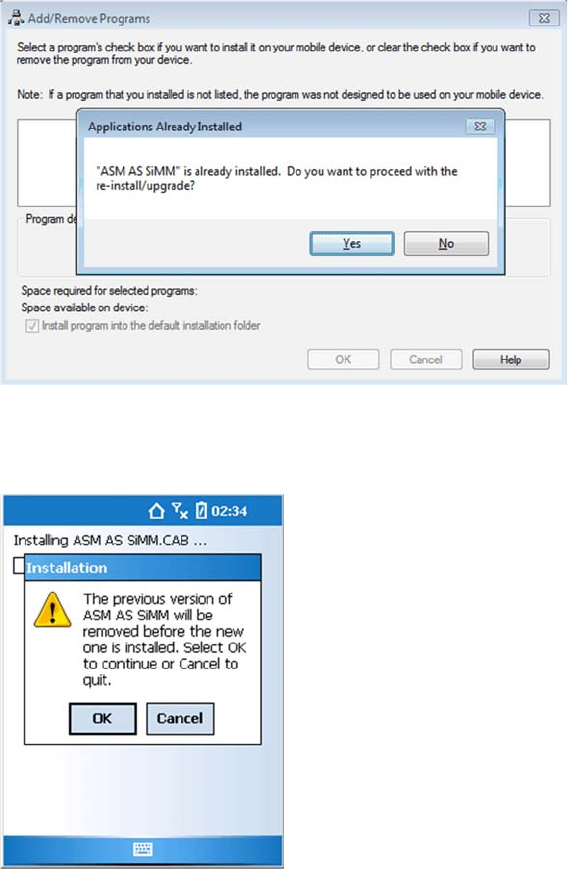

In this case, the following message is displayed.

Previous version present

► Click on Yes to remove the previous and install the new version.

The following message is displayed on the PDA:

Previous version present

► Click on OK to remove the previous and install the new version.

Setting Up a PC for the PDA and the 2D Scanner

Configuring the 2D Scanner

Installation Manual Material Manager V1.0 35

4.4

4.4 Configuring the 2D Scanner

Configuring the 2D Scanner

In this section you find a short description of the software configuration of the PowerScan M8500 2D

scanner from the DATALOGIC company.

This 2D scanner is required to read the 2D barcodes that are located on the various material containers.

In the Material Manager, the scanner is used for the Identify Incoming Material function in the Material

Receipt area.

► Start the ALADDIN software.

► Configure the scanner and the cradle as displayed in the following dialogs.

Selecting interface
