Installing the MaterialManager

Installation Manual Material Manager V1.0 25

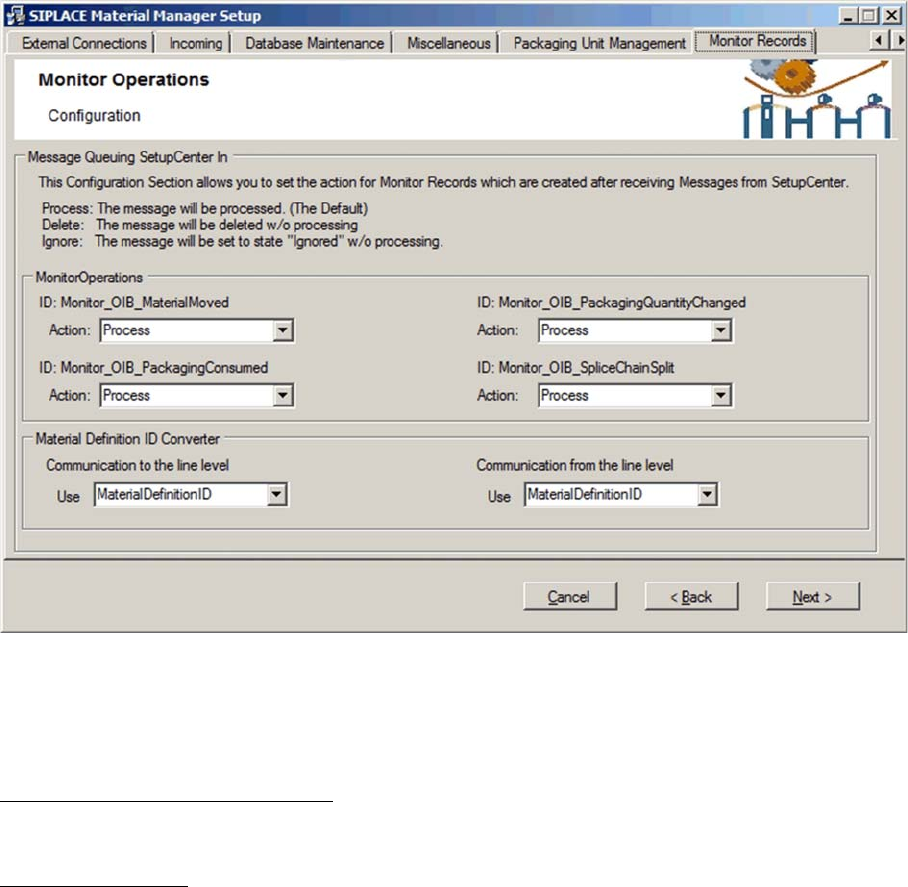

Configuring Material Manager – Monitor Records tab

In this tab you configure the type of reaction by the Material Manager to certain Setup Center messages.

The Setup Center messages will be classified according to type, stored in the Material Manager data

base as monitor records and then processed according to the settings in this dialog box.

Message Queuing SetupCenter In

Display area for Setup Center messages.

Monitor Operations

In this area, the different Setup Center message types (IDs) and the specific processing behavior are

displayed. Set the appropriate processing behavior for the messages under Action.

ID: Monitor_OIB_MaterialMoved

These messages will be generated if a packaging unit is moved in Setup Center, e.g. during setup.

ID: Monitor_OIB_PackagingQuantityChanged

These messages will be generated if the quantity of components has changed within a packaging unit.

ID: Monitor_OIB_PackagingConsumed

These messages will be generated if a packaging unit is consumed in Setup Center.

ID: Monitor_OIB_SpliceChainSplit

These messages will be generated if a packaging unit chain gets splitted in Setup Center.

Installing the MaterialManager

26 Installation Manual Material Manager V1.0

Action

Here you set the processing behavior for a specific message type.

▪ Process

The message will be processed in the Material Manager, gets the Processed state and remains in

the database.

If the message cannot be processed, it gets the Failed state and remains in the database.

▪ Delete

The message will NOT be processed and is deleted in the database.

▪ Ignore

The message will NOT be processed, gets the Ignored state and remains in the database.

Material Definition ID Converter

With the following settings you synchronize the usage of part numbers and article numbers for process

ing material data. This makes sure that the transferred data is used with the same meaning in the com

munication between the Material Manager and the external Setup Center and SIPLACE Pro systems.

Communication to the line level

Communication / data export from the Material Manager to Setup Center.

Under Use, set if the Material Manager shall send the part number or the article number to Setup Center

to be processed.

Communication from the line level

Communication / data import from Setup Center or SIPLACE Pro to the Material Manager.

Under Use, set if the Material Manager shall interpret the information to be processed sent by Setup

Center or SIPLACE Pro as part number or article number.

Use

▪ Material Definition ID (part number )

Internal material number for technical usage, e.g. in SIPLACE Pro and Setup Center. This number

agrees with the component number of the material as used in SIPLACE Pro.

▪ ArticleNumber (article number )

Alias material name for the commercial usage. Usually, the entry is identical to the part number but

an alias name may be defined.

Installing the MaterialManager

Installation Manual Material Manager V1.0 27

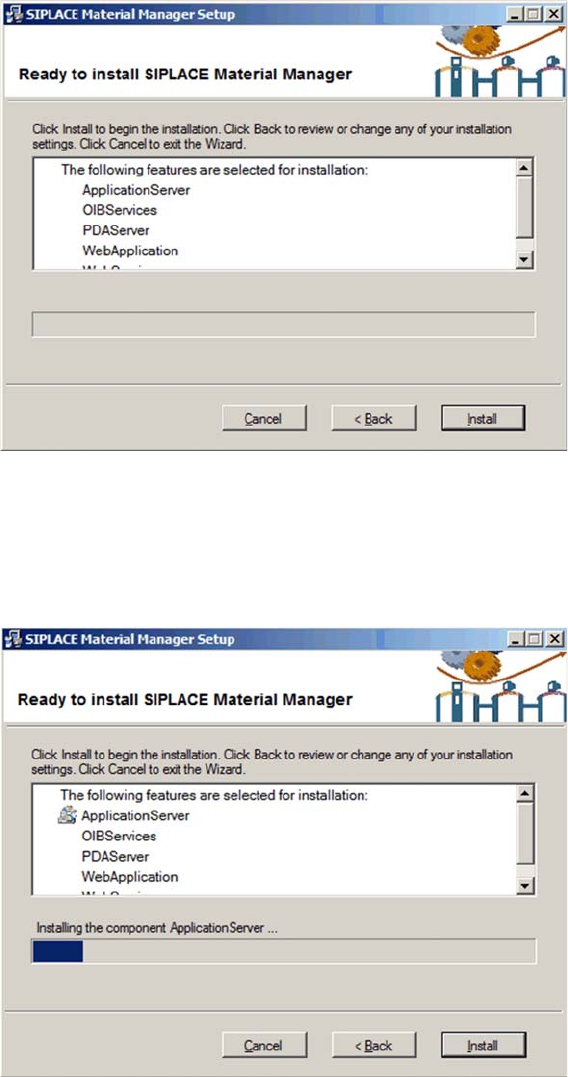

Displaying settings

The settings you have made are displayed for checking.

► Click on Back to correct your settings.

► Click on Install to perform the installation with your settings.

► Click on Cancel to cancel the installation.

Installing components

The installation runs and a progress bar displays the current installation state.
