GV Series Automated Dispensing Systems 16 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide. G8V Series System Component Identification Ope…
GV Series Automated Dispensing Systems
15www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Pencil
camera
DispenseMotion
controller
Syringe barrel for fluid dispensing
Operating Features
G4V Series System Component Identification
Post (size
varies)
Fixture plate
Monitor and keyboard
(mouse not shown)
GV operation boxStart / stop box
X axis
Z axis
Y axis
GV Series Automated Dispensing Systems
16 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

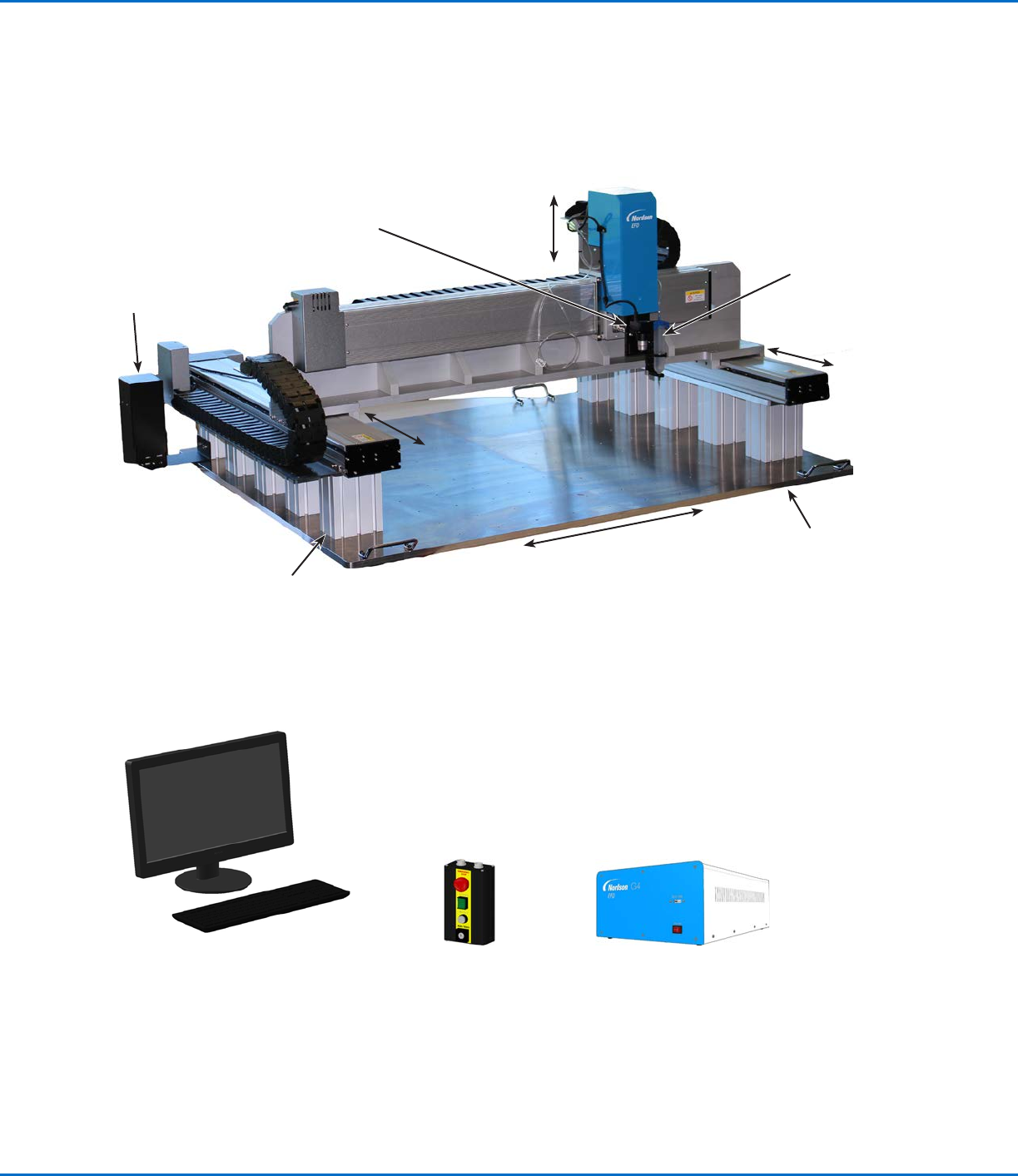

G8V Series System Component Identification
Operating Features (continued)
CCD smart
camera
Syringe barrel for
fluid dispensing
Post (size
varies)
Fixture plate
DispenseMotion
controller
Monitor and keyboard
(mouse not shown)
GV operation boxStart / stop box
X axis
Y1 axis
Y2 axis
Z axis
GV Series Automated Dispensing Systems
17www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Operating Features (continued)

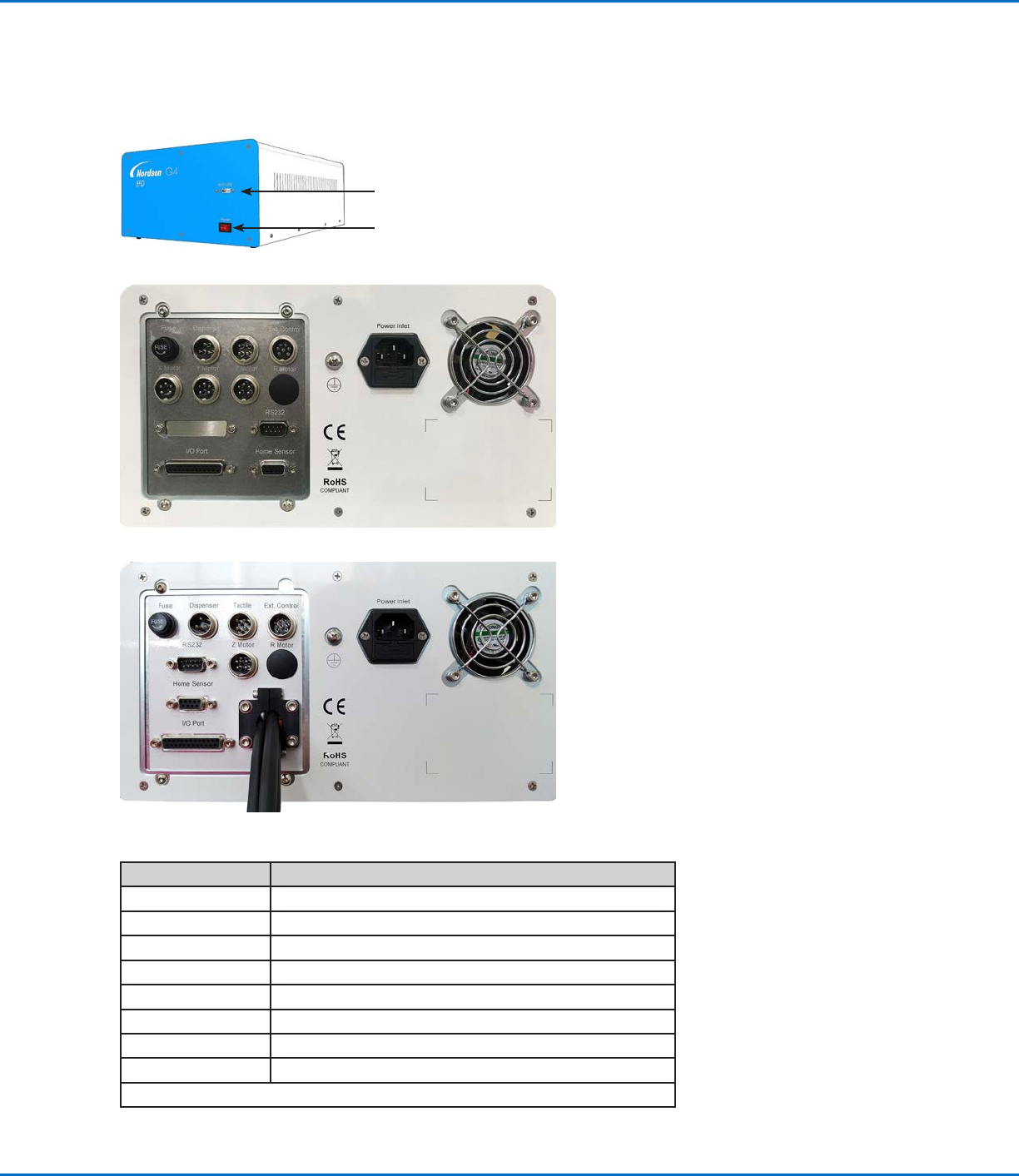

GV Operation Box
SVC USB port (for software upgrades)
Power Switch
Port Function
Dispenser For dispenser / controller initiation
Tactile For the tip detector (if present)
Ext. Control For the start / stop box
Home Sensor Connects to the Home Sensor port on the robot
I/O Port For input / output connections
RS232 Connects to the DispenseMotion controller
Power Inlet Power cord connection
X, Y, or Z Motor Connects to the motor for the respective axis
NOTE: For pin position details, refer to “Wiring Diagrams” on page94.
