GV Series Automated Dispensing Systems
91www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Lens Kit
The lens kit contains lenses for different focal lengths, fields of view, etc., for the high-precision camera.
Item Part # Description
7360867 Lens accessory kit, high-precision camera
OptiSure Software Key
Nordson EFD’s OptiSure Automated Optical Inspection (AOI) software is available within the current DispenseMotion
software as an optional add-on. The AOI feature inspects fluid deposit widths and diameters with exceptional
certainty and determines if dispense requirements have been met. The OptiSure feature also includes advanced
functions for augmenting mark images to make them easier for the system find.
Item Part # Description
7365229 Software key, OptiSure Automated Optical Inspection (AOI)
Accessories (continued)
GV Series Automated Dispensing Systems
92 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Accessories (continued)
Item Part # Description
7360610
Syringe barrel mounting
bracket
7361815
Mounting bracket for PICO
Pµlse valves
7360613
Mounting bracket for all
valves with mounting holes
(752, 725, 741, 736, 781,
787, and 782 Series valves)
7361758
Universal valve mounting
bracket for all valves
without mounting holes
(702, 754, 794, and 784S-
SS Series valves)
7363518
Mounting bracket for 794-
TC Series auger valves
7361114
Mounting bracket for
xQR41 and 745 Series
valves
7361757
Mounting bracket for radial
spinner valves
7360952
Mounting bracket for the
Ultimus
™
IV dispenser
Mounting Brackets
Item Part # Description
7362177
Mounting bracket for
Liquidyn P-Jet and P-Dot
valves
7360796 Equalizer
™
bracket
7360609
EV Series simple vision
bracket
7364423
Mounting bracket 797PCP
(single pump)*
*For G8V robots, also use
P/N7364856
7364529
Mounting bracket 797PCP-
2K (two-component pump)*
*For G8V robots, also use
P/N7364856
7364856
Camera mounting bracket,
797PCP / 797PCP-2K*
*On G8V robots, required
for P/N7364423 or
P/N7364529 . This bracket
is attached to the robot
camera.
GV Series Automated Dispensing Systems
93www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

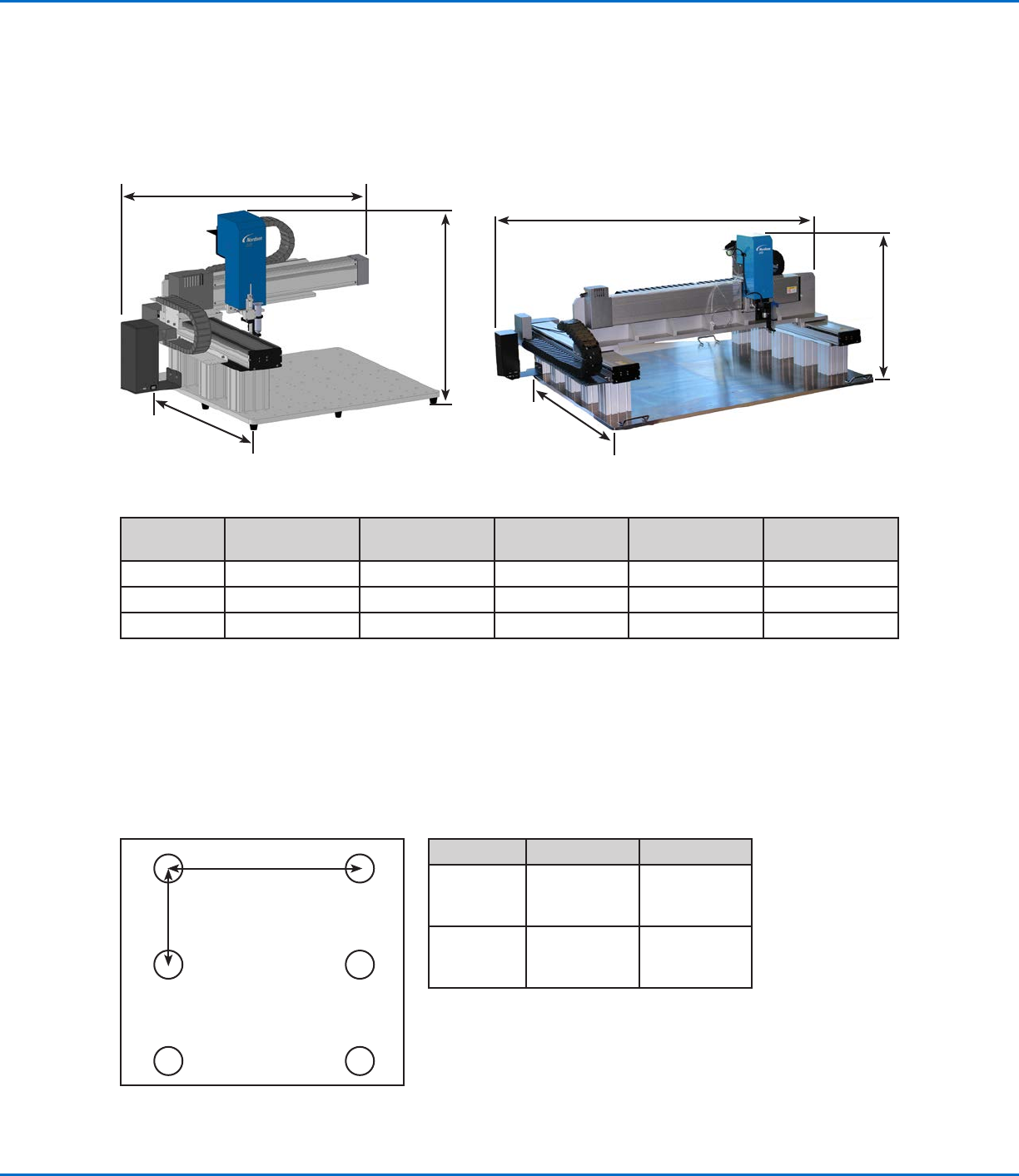

Technical Data
Dimensions
Dimension
G4V
100 mm post
G4V
150 mm post
G4V
250 mm post
G8V
100 mm post
G8V
150 mm post
A (width) 937 mm (37") 937 mm (37") 937 mm (37") 1,581 mm (62") 1,581 mm (62")
B (height) 561 mm (22") 611 mm (24") 711 mm (28") 650 mm (26") 700 mm (28")
C (depth) 760 mm (30") 760 mm (30") 760 mm (30") 1,190 mm (47") 1,190 mm (47")
NOTE: These dimensions include the DispenseMotion controller, fixture plate, and posts.
Robot Feet Mounting Hole Template
Use these dimensions to drill mounting holes for the robot feet.
6 x M5 tapped holes
Dimension G4V G8V
A
(Center to
center)
709mm
(28")
n/a
B
(Center to
center)
326mm
(13")
n/a
G4V
A
G8V
B
C
B
A
B
C
A
