GV Series Automated Dispensing Systems
92 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Accessories (continued)
Item Part # Description
7360610
Syringe barrel mounting
bracket
7361815
Mounting bracket for PICO
Pµlse valves
7360613
Mounting bracket for all
valves with mounting holes
(752, 725, 741, 736, 781,
787, and 782 Series valves)
7361758
Universal valve mounting
bracket for all valves
without mounting holes
(702, 754, 794, and 784S-
SS Series valves)
7363518
Mounting bracket for 794-
TC Series auger valves
7361114
Mounting bracket for
xQR41 and 745 Series
valves
7361757
Mounting bracket for radial
spinner valves
7360952
Mounting bracket for the
Ultimus
™
IV dispenser
Mounting Brackets
Item Part # Description
7362177
Mounting bracket for
Liquidyn P-Jet and P-Dot
valves
7360796 Equalizer
™
bracket
7360609
EV Series simple vision
bracket
7364423
Mounting bracket 797PCP
(single pump)*
*For G8V robots, also use
P/N7364856
7364529
Mounting bracket 797PCP-
2K (two-component pump)*
*For G8V robots, also use
P/N7364856
7364856
Camera mounting bracket,
797PCP / 797PCP-2K*
*On G8V robots, required
for P/N7364423 or
P/N7364529 . This bracket
is attached to the robot
camera.
GV Series Automated Dispensing Systems
93www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Technical Data
Dimensions
Dimension
G4V
100 mm post
G4V
150 mm post
G4V
250 mm post
G8V
100 mm post
G8V
150 mm post
A (width) 937 mm (37") 937 mm (37") 937 mm (37") 1,581 mm (62") 1,581 mm (62")
B (height) 561 mm (22") 611 mm (24") 711 mm (28") 650 mm (26") 700 mm (28")
C (depth) 760 mm (30") 760 mm (30") 760 mm (30") 1,190 mm (47") 1,190 mm (47")
NOTE: These dimensions include the DispenseMotion controller, fixture plate, and posts.
Robot Feet Mounting Hole Template
Use these dimensions to drill mounting holes for the robot feet.
6 x M5 tapped holes
Dimension G4V G8V
A
(Center to
center)
709mm
(28")
n/a
B
(Center to
center)
326mm
(13")
n/a
G4V
A
G8V
B
C
B
A
B
C
A
GV Series Automated Dispensing Systems
94 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
2
1 3
1
7
Maximum Voltage Maximum Current
125 VAC 15A
250 VAC 10A
28 VDC 8A
Pin# Description
1 NOM (Normally open)
2 COM (Common)
3 EARTH (Ground)
Pin 1
Pin 2
Pin 3
+24V
Relay
Ext. Control Port
NOTES:
• Inputs are not polarity-sensitive.
• The optional start / stop box accessory facilitates input / output connections to this port. Refer to “Start / Stop
Box” on page90 for part numbers.
Pin Description
1 Ground
2 Start signal
3 Motor power
4 Motion idle
5 Run / Teach
6 Emergency stop
7 Emergency stop
Technical Data (continued)

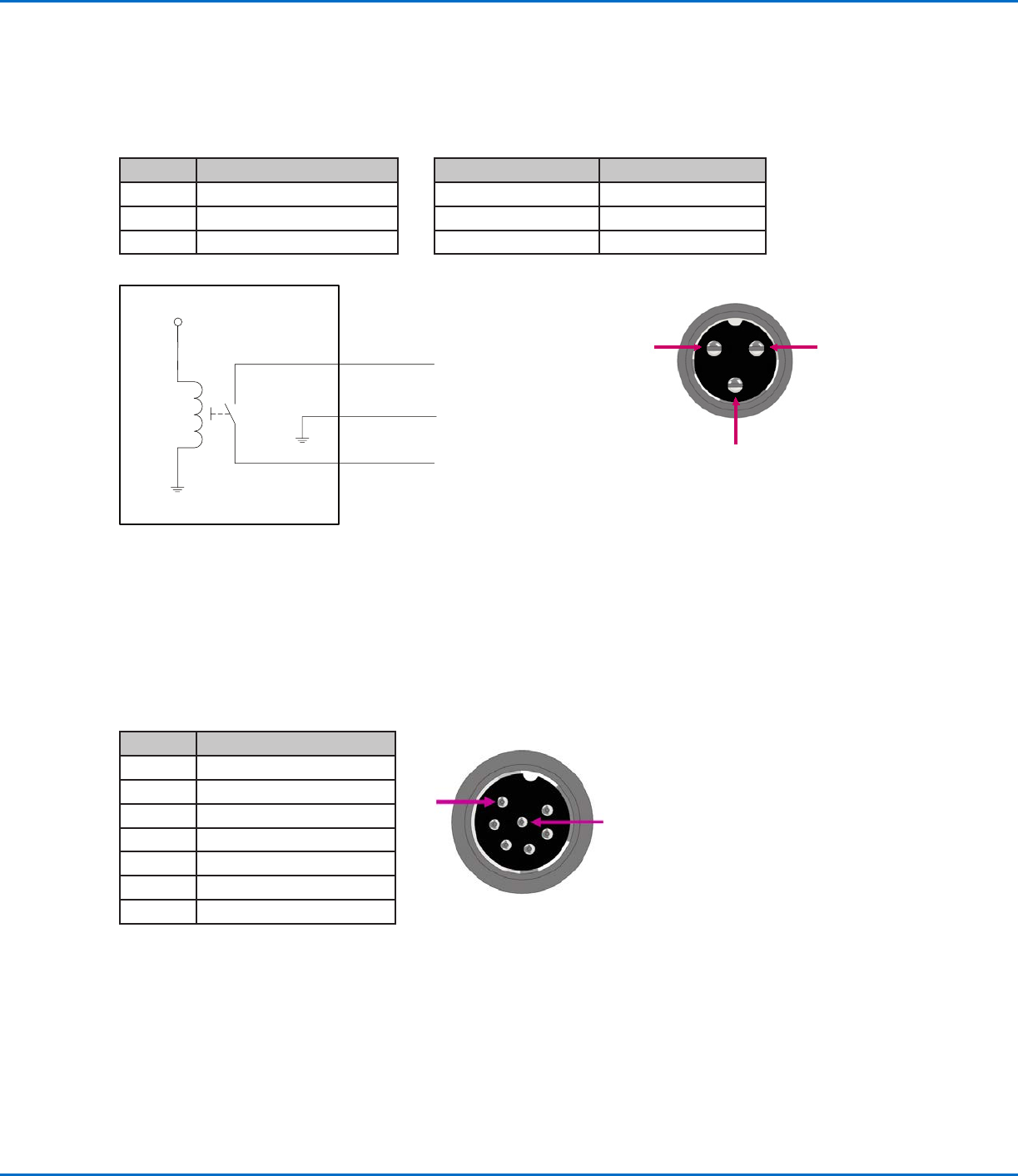

Wiring Diagrams
Dispenser Port
