2 Brief Description 2.2 Prerequisites and restrictions Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 57 2.2 Prerequisites and restrictions Requirements ● SIPLACE TX2/TX2i V2 from…
2 Brief Description
2.1 Product Description
56 Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021
2.1.1 Configurations
SIPLACE TX2i V2
Fig.6: Configuration SIPLACE SPS TX2i
SIPLACE TX2 V2
Fig.7: Configuration SIPLACE SPS TX2
NOTICE
New magazine with 3 fiducials
We recommend using the new magazine with 3 fiducials.
Nozzle magazine type 20xx/20 3 pos. fiducials [03226630‑xx]
Nozzle magazine type 40xx assy. / NCS [03218226‑xx]
This allows the magazines which would otherwise be unreachable to be reached in part
and also makes additional nozzles available.
► SIPLACE TX2i V2: additional 14 nozzles
► SIPLACE TX2 V2: additional 28 nozzles
2 Brief Description
2.2 Prerequisites and restrictions
Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 57
2.2 Prerequisites and restrictions
Requirements
●
SIPLACE TX2/TX2i V2 from serial number TB072G
●
SIPLACE CPP / SIPLACE C&P20P2
●
Station software 712.0x / SIPLACE Pro 16.x

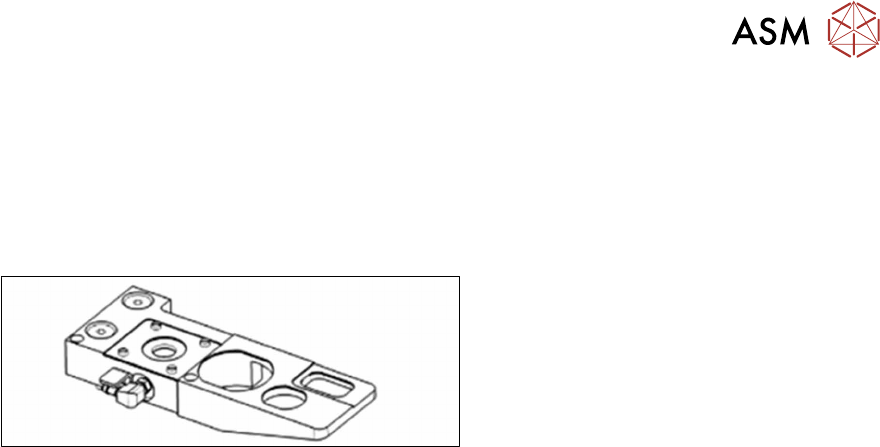

Fig.8: Nozzle station CPx complete
●
Nozzle station CPx assembly
[03106821‑xx]
All SIPLACE TX V2 machines with station-
ary camera and the large reject bin have this
nozzle station.
If this nozzle station has not yet been fitted,
you will need to replace the existing one.
Restrictions
●
Assembly is not possible on SIPLACE TX1 V2 machines.
●
In SIPLACE TX2i V2 machines, the NC magazine on the left in each case can either not be
used at both locations or can only be partially used.
●
In SIPLACE TX2 V2 machines, the two left NC magazines in each case can either not be
used at both locations or can only be partially used.
●
The six left lanes on each of the two component tables are occupied by a "Smart Pin
MagazineT5" (pin feeder). These may not be removed during operation as the table fiducial is
located on them.
Additional pin feeders can be placed up to and including track 25 and, if necessary, can be
removed.
2 Brief Description
2.3 Scope of Delivery
58 Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021
2.3 Scope of Delivery
Smart Pin Support SIPLACE TX [00588320-xx]
Quantity Designation Item no.
1 Upgrade kit SPS P1 TX V2 03171221-xx
2 ISO 4762 - M 3 x 22-A2-70 03064919-xx
1 Air connection X-Motor SPS P1 TX 03210185-xx
1 SPS P1 TX V2
Contains, for example, connection cable SPS TX V2
[03208588‑xx]
03165096-xx
1 Y center stop assembly SPS TX V2 03167896-xx
1 Space to bottom buffer complete SPS P1 03210576-xx
2 ISO 4762 - M 3 x 12-A2-70 03042544-xx
2 TORX-ISO7380-2 - M3x6 - A2-70 03119157-xx
1 ISO 4762 - M 4 x 14-A2-70 03043116-xx
0.31 m Silicone hose. Di 8 Da 12 electrically conductive 03006727-xx
1 Upgrade kit SPS P2 TX V2 03171222-xx
1 SPS P2 TX V2
Contains, for example, connection cable SPS TX V2
[03208588‑xx]
03164367-xx
1 Spacer top buffer SPS P2 03170394-xx
1 Spacer bottom buffer SPS P2 03170316-xx
2 ISO 4762 - M 3 x 12-A2-70 03042544-xx
2 TORX-ISO7380-2 - M3x6 - A2-70 03119157-xx
1 ISO 4762 - M 4 x 14-A2-70 03043116-xx
2 Pin garage X 03170868-xx
2 Smart Pin Support set standard pins 5 pieces 00119995-xx
1 Reference position with SPS TX V2 03169888-xx
You also need the following:
Quantity Designation Item no.
1 Allen key shortened (5 mm)
Optional
You can order the following parts separately:
Designation Item no.
Pin magazine T5 Plus (pin feeder, (1 piece) 00588322-xx
Smart Pin Support set standard pins (5 pieces) 00119995Sxx
