3 Installation
3.4 Gantry 2
Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 71
Fig.35: Fitting the top spacer
► Fit the longer spacer at the top (hand-
tight, Loctite243).
Fig.36: Fitting the bottom spacer
► Fit the shorter spacer at the bottom
(hand-tight, Loctite243).
Fig.37: Fitting the top buffer
► Fit a previously removed rubber buffer
to the top spacer (Loctite243).
► Fit the other previously removed rubber
buffer to the bottom spacer (Loc-
tite243).
3 Installation
3.4 Gantry 2
72 Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021
3.4.2 Preparing the gantry
Fig.38: Board cover (using gantry1 as example)
► Remove the five fastening screws and
lift the board cover(1) off.
Fig.39: Unplugging the cable
► Loosen the cable ties.
► Unplug the cable at the head inter-
face(1).
Fig.40: Removing the side plate
► Remove the two screws(1) (M3x6,
Torx10).
► Remove the two screws(2) (M3x12,
Allen2.5).
► Remove the three screws(3) (M6x14,
Allen5) and lift off the side plate(4).
3 Installation
3.4 Gantry 2
Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 73

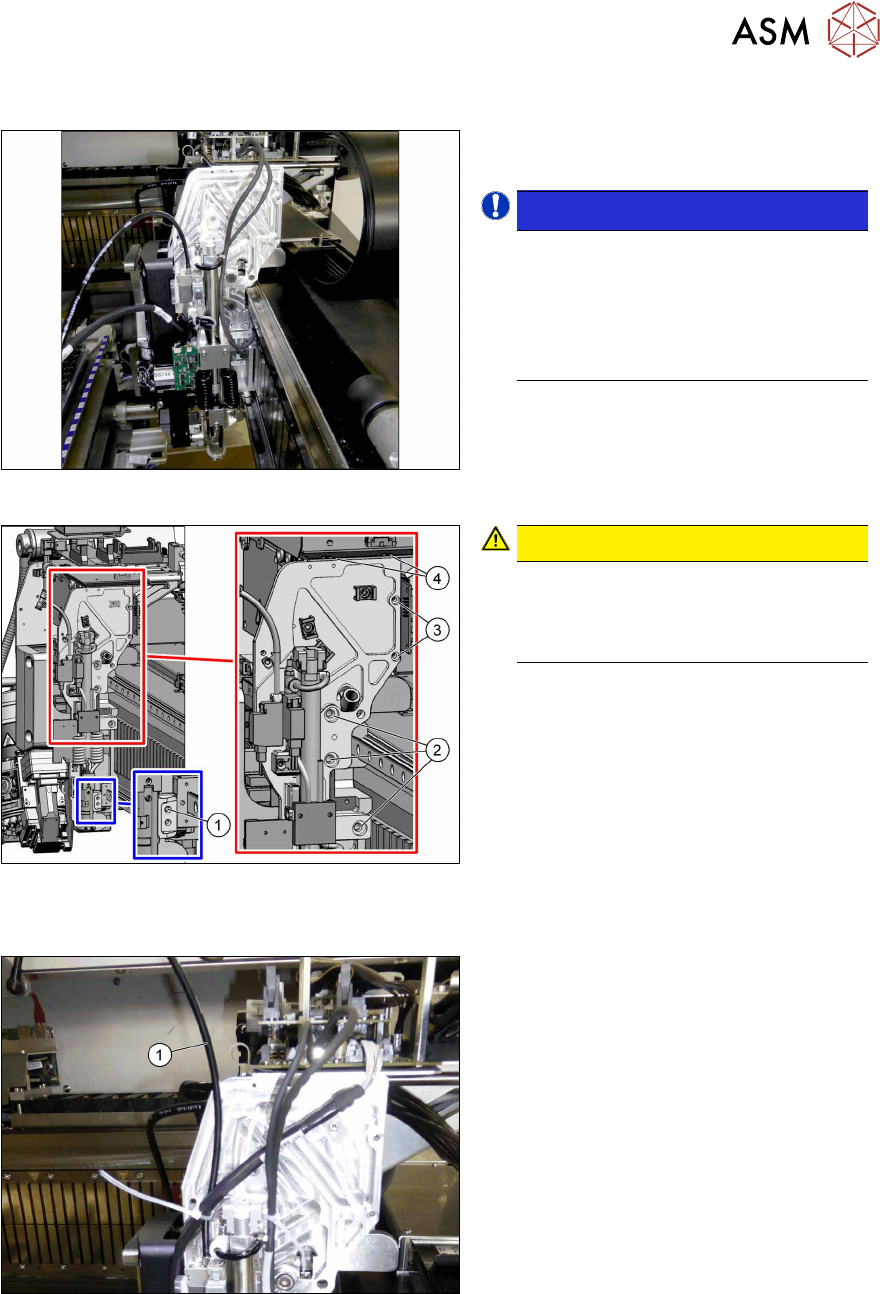

3.4.3 Installing the pin picker
Fig.41: Inserting the pin picker
► Place the pin picker (including the side
plate) on the gantry.
 NOTICE!
Centering pins
The pin picker has two centering pins.
First, position the bottom centering pin
and after that the top one.
The base plate of the pin picker must
fit closely.
.
Fig.42: Fastening the pin picker
 CAUTION!
Observe the specified order
To minimize tension, first tighten the
screws(1) to(3) and after that the top
screws(4).
.
► Fasten the pin picker with eight screws:
1. 1x M4x14, Allen3
Torque 2.9Nm, Loctite243
2. 3x M6x14, Allen5
Torque 10Nm, Loctite243
3. 2x M3x12, Allen2.5
Torque 1.3Nm, Loctite243
4. 2x M3x6, Torx10, button head
[03119157‑xx]
Loctite243
Fig.43: Shortening the hose
► Lift off the T piece and shorten the
hose(1) (4x2.5PUN) of the pin picker
by 70mm to a length of 280mm.
