3 Installation 3.2 Converting the machine zero point 62 Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 Fig.12: Checking/adjusting the machine zero point ► Check if the new machin…
3 Installation
3.1 Preparatory Steps
Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 61
3 Installation
DANGER
Observe the safety instructions!
When performing the following tasks, especially observe the safety instructions about work-
ing with strong magnetic fields.
► 1.1.2 "Safety instructions for working with strong magnetic fields" [}46]
3.1 Preparatory Steps
NOTICE
Preparation
Also read section 1.2 "Preparatory work..." [}49]
3.2 Converting the machine zero point
When a SIPLACE Tray Unit is installed, always observe the information in section 2.3.1 "Parts re-
quired for the SPS option in SIPLACE TX V2 machines with SIPLACE Tray Unit installed" [}59].

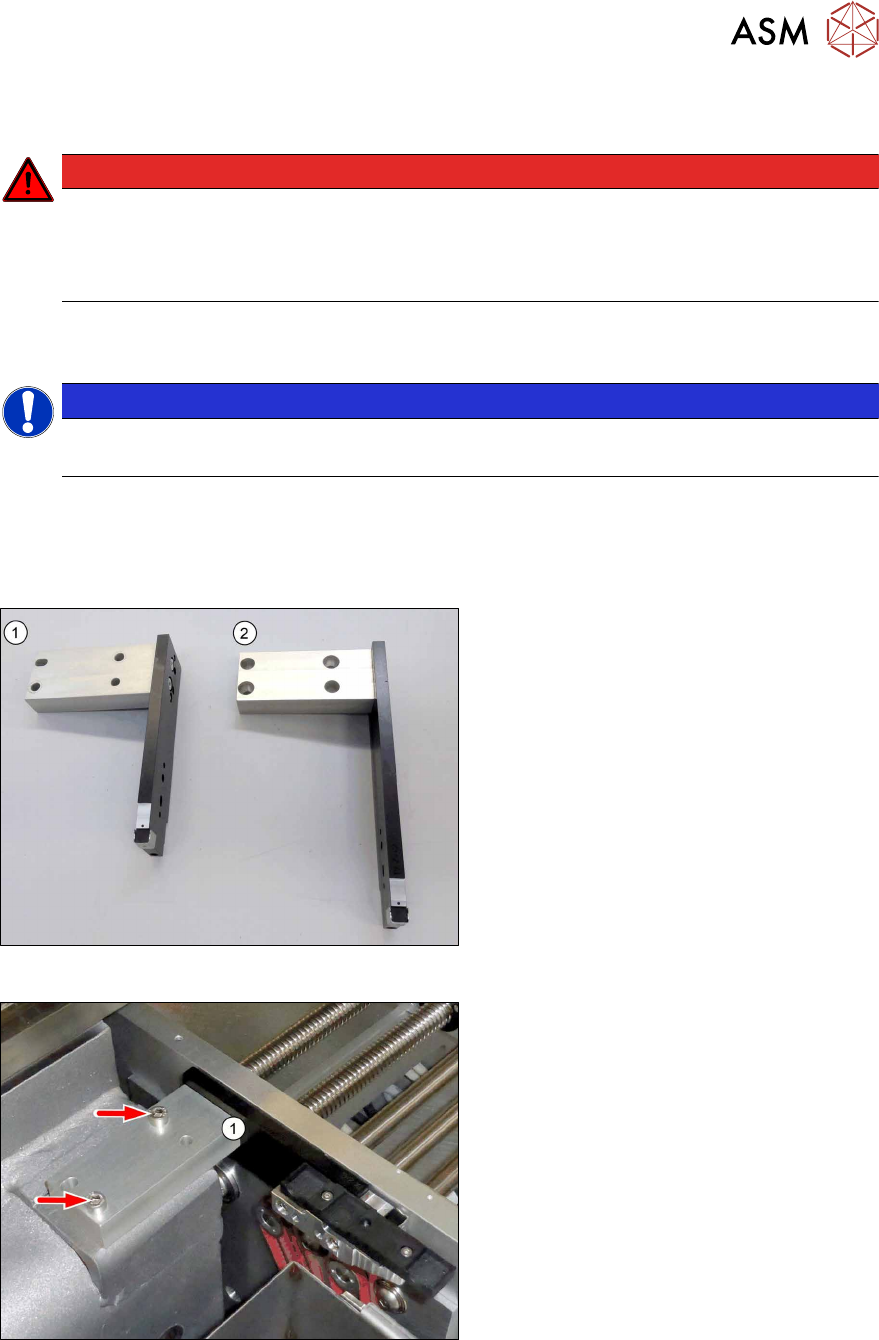

Fig.10: Overview of machine zero points
For operation with Smart Pin Support, the
machine zero point at location1 must be re-
placed.
1. Standard machine zero point
2. Smart Pin Support machine zero point
Fig.11: Dismantling the machine zero point
► Remove the two screws (M6xM16,
Allen5) and lift off the machine zero
point(1).
3 Installation
3.2 Converting the machine zero point
62 Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021

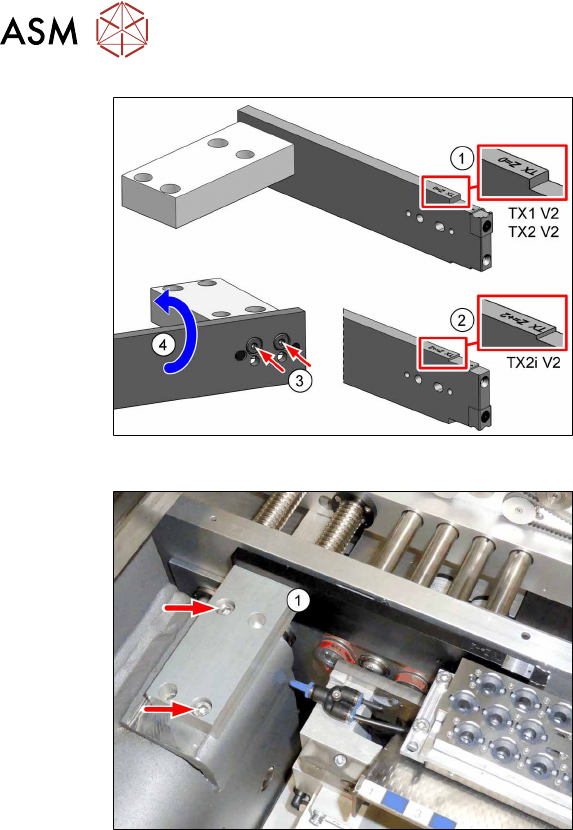

Fig.12: Checking/adjusting the machine zero point
► Check if the new machine zero point is
correctly configured for your machine.
1. TX Z = 0
for SIPLACE TX1 V2
and SIPLACE TX2 V2
2. TX Z = +2
for SIPLACE TX2i V2
The value for your machine must be located
on top.
If the machine zero point does not match the
machine type, proceed as follows:
► Remove the two screws(3) (ISO8734
M5x18) and lift off the rail(4).
► Rotate the rail by 180° and refit it.
Fig.13: Fitting the machine zero point
► Fasten the new machine zero point(1)
with two screws (Loctite243).
If possible, use new screws.
3 Installation
3.3 Gantry 1
Assembly Instructions / Montageanleitung SIPLACE TX V2 Series Smart Pin Support 07/2021 63
3.3 Gantry 1
3.3.1 Converting the Y axis buffer

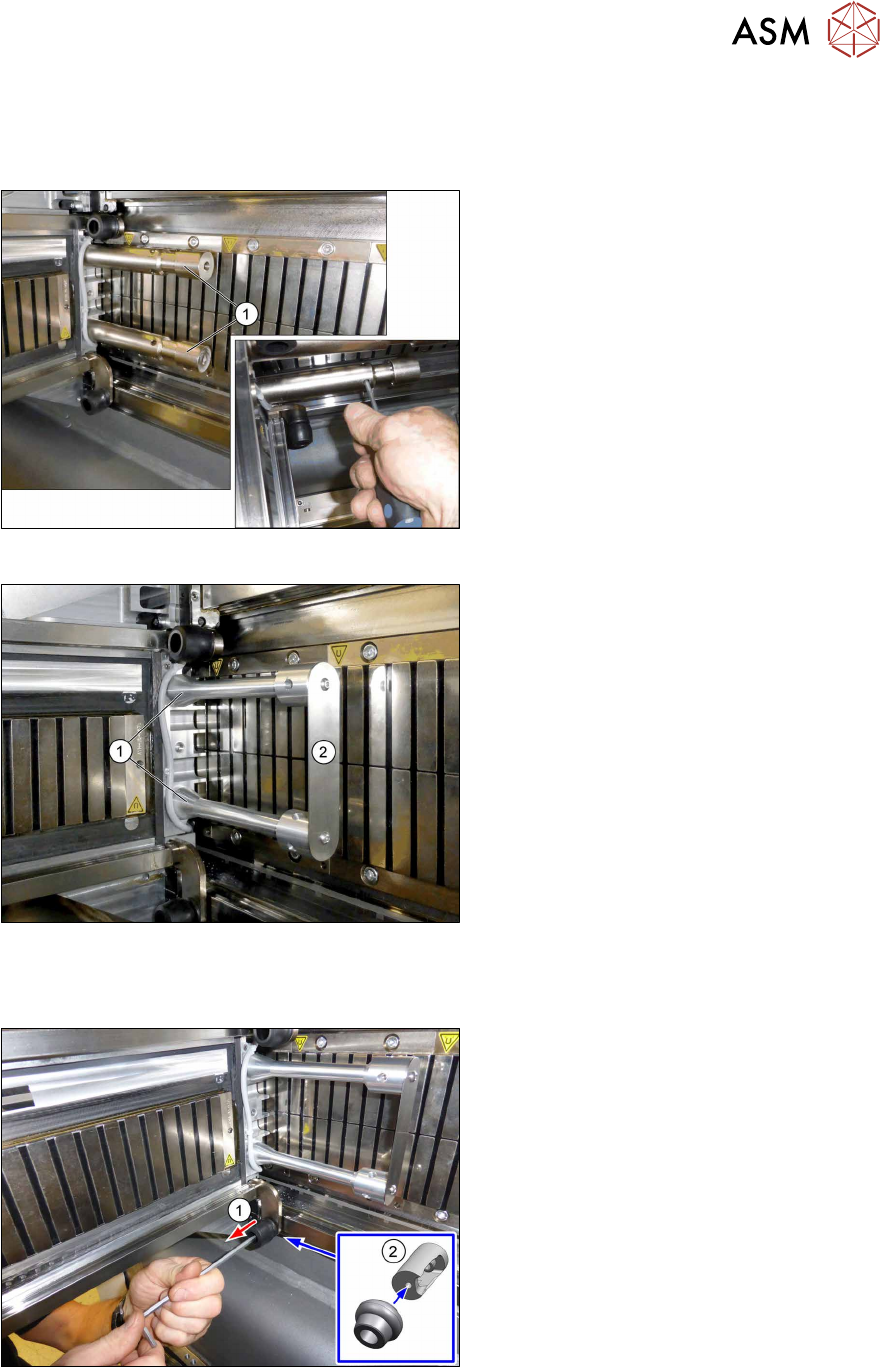

Fig.14: Removing the old buffers
► Remove the two buffers(1).
Fig.15: Fitting the new buffers
► Screw the new buffers on(1) (Loc-
tite243).
► Fit the support plate(2) with two
screws (M4x6, Allen2.5, Loctite243).
3.3.2 Converting the X axis buffer
Fig.16: Bottom rubber buffer
► Dismantle the bottom rubber buffer(1)
at the gantry root (Allen, M6).
► At the gantry root, attach the spacer(2)
[03210576‑xx] with a screw (M6x35).
Use the shortened Allen key for this.
► Refit the previously removed rubber
buffer on the spacer (Allen5, M6).
