4 Working with the OSC Features

4.4 Special Position Evaluation (from R16-2)

Bedienungsanleitung OSC Package User Guide OSC-Paket 11/2018 79

4.4 Special Position Evaluation (from R16-2)

For OSC components it is often difficult to find the X-/Y-position and determine the rotation of a

component by using the same feature. Therefore, a new function has been introduced that allows

using one feature for the X-/Y-alignment and another feature for the rotational alignment.

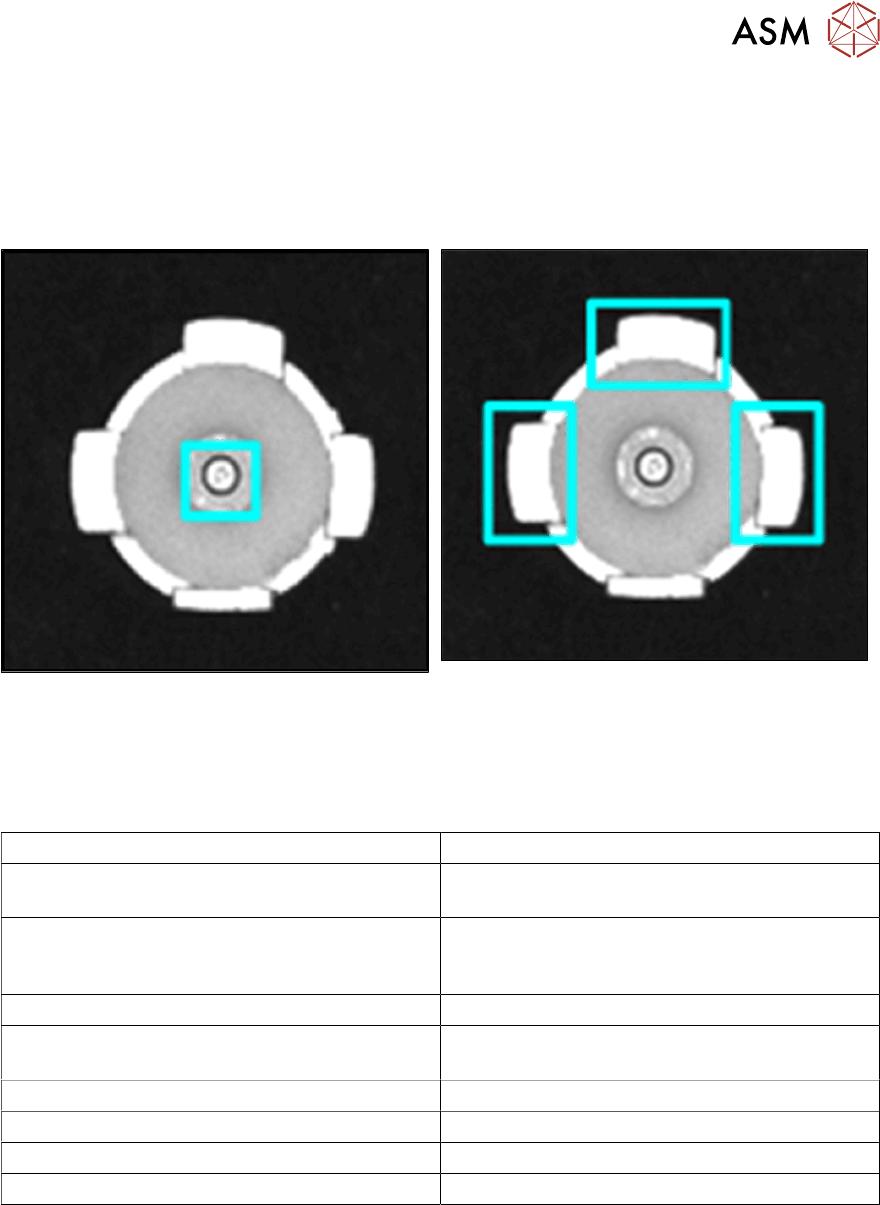

Example

Using a pin to determine the X-/Y-alignment Using 3 leads to determine the angle for the ro-

tational alignment

The new Evaluation of position attribute is displayed as parameter of the respective feature group

on the GUI and is only visible in SIPLACE Vision.

Following settings are available for the special position evaluation:

Setting Evaluation

Standard Default value, normal evaluation

(X, Y, angle)

None Group is not used to determine the component

position

(but for inspection)

Angle Group is only used to determine the angle

X and Y Group is only used for X and Y, not for the

angle

X Group is only used for X, not for Y and angle

Y Group is only used for Y, not for X and angle

X and angle Group is only used for X and angle, not for Y

Y and angle Group is only used for Y and angle, not for X

The X- and Y-coordinates always refer to the component coordinate system.

4 Working with the OSC Features

4.4 Special Position Evaluation (from R16-2)

80 Bedienungsanleitung OSC Package User Guide OSC-Paket 11/2018

4.4.1 Procedure

The following overview lists the single work steps that have to be performed in the specified order

to perform the special position evaluation.

Performing position evaluation

Step Action SIPLACE program

1) Enabling OSC package SIPLACE Pro

2) Defining the alignment for the first group (Default) SIPLACE Vision

3) Defining alignment for the second group (None) SIPLACE Vision

4 Working with the OSC Features

4.4 Special Position Evaluation (from R16-2)

Bedienungsanleitung OSC Package User Guide OSC-Paket 11/2018 81

4.4.2 Application Example

Step 1: SIPLACE Pro

► In the Station Editor under Placement Station,

enable the OSC Package option under Installed

options.

Step 2: SIPLACE Vision

► Define the alignment of the two Rectangle

features in the Geometry data under

Evaluationofposition.

In this example: Default (X, Y, angle for

"Rectangle" feature).

Step 3: SIPLACE Vision

► Define the alignment of all Wraparound groups in

the Geometry data under

Evaluationofposition.

In this example:

None for "Wraparound" feature.

All features are searched for and inspected during the measurement. Therefore, all features have

to be available and set correctly. Only in the last step, the position of these features is taken into

account in the calculation of the component position. In the example above, only the positions of

the two rectangle features are used for the calculated component position.
