5. Lower the tape leaf. While checking that the parts tape feeding holes and the sprocket are engaged, take up the slack of the top-film. Lock the tape leaf with the tape leaf lock. Locking the T ape Leaf 6. Tie a knot i…

3. Slide the parts tape under the raised tape leaf and pull to the front of the feeder.

Peel the top-film off the tape and insert into the slit in the tape leaf.

Parts Tape Set (position 1)

4. Match the feeding holes on the tape with the sprocket gear. At this time, consider

the pick-up position.

Parts Tape Set (position 2)

Pickup point

CP6M8009

Tape leaf

Parts tape

Slit

Top-film

CP6M8008

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-6 CP-6 Series Mechanical Reference

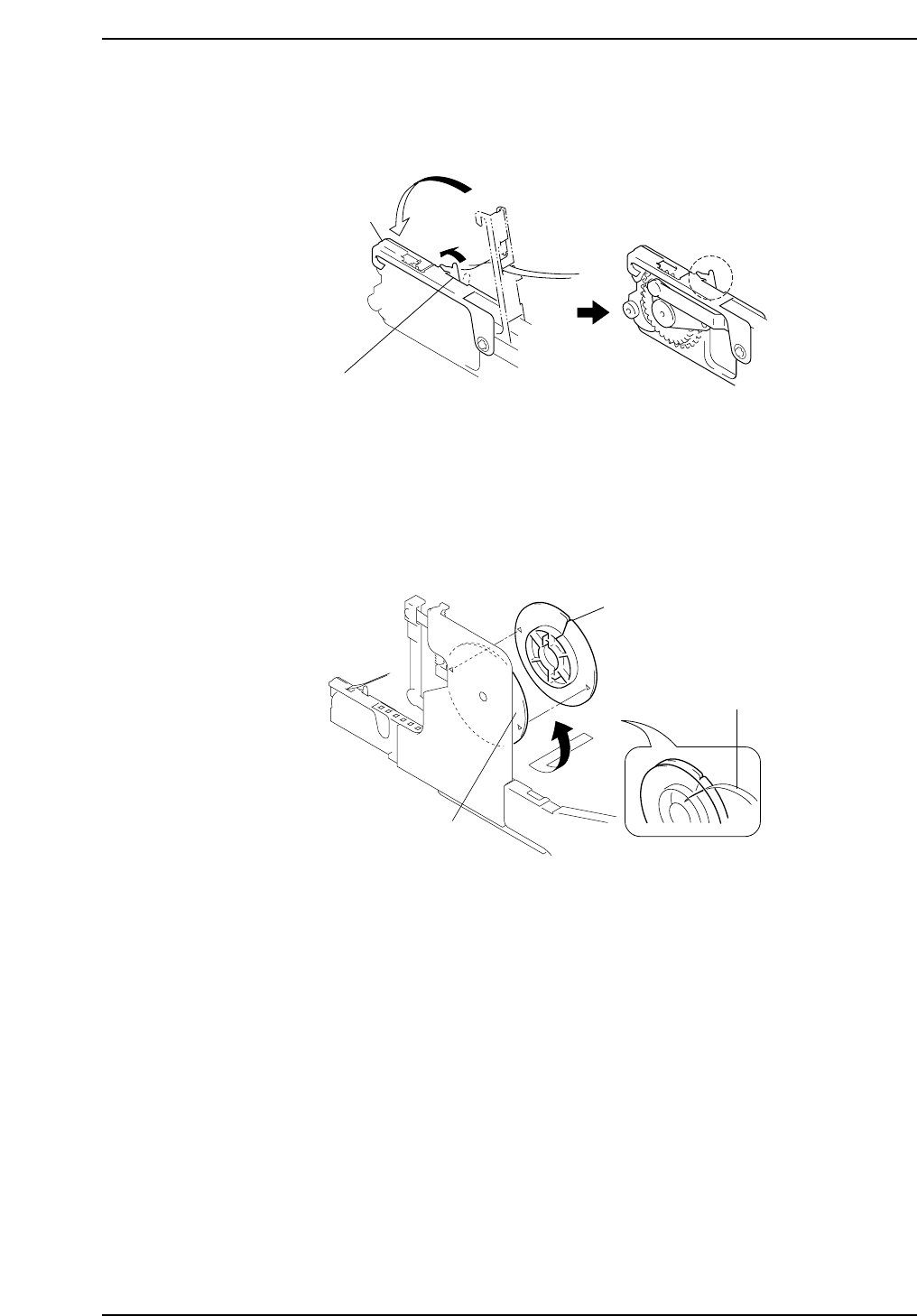

5. Lower the tape leaf. While checking that the parts tape feeding holes and the

sprocket are engaged, take up the slack of the top-film. Lock the tape leaf with the

tape leaf lock.

Locking the Tape Leaf

6. Tie a knot in the end of the top-film, insert into the slit on the take-up reel cover

and pull until snug. On the take-up reel there are two arrows. When locking the

take-up reel, align the arrows and turn in the direction as shown below.

Setting the Top-film

Slit

Top-film

Take-up reel

CP6M8011

Tape leaf

Tape leaf lock

CP6M8010

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-7 CP-6 Series Mechanical Reference

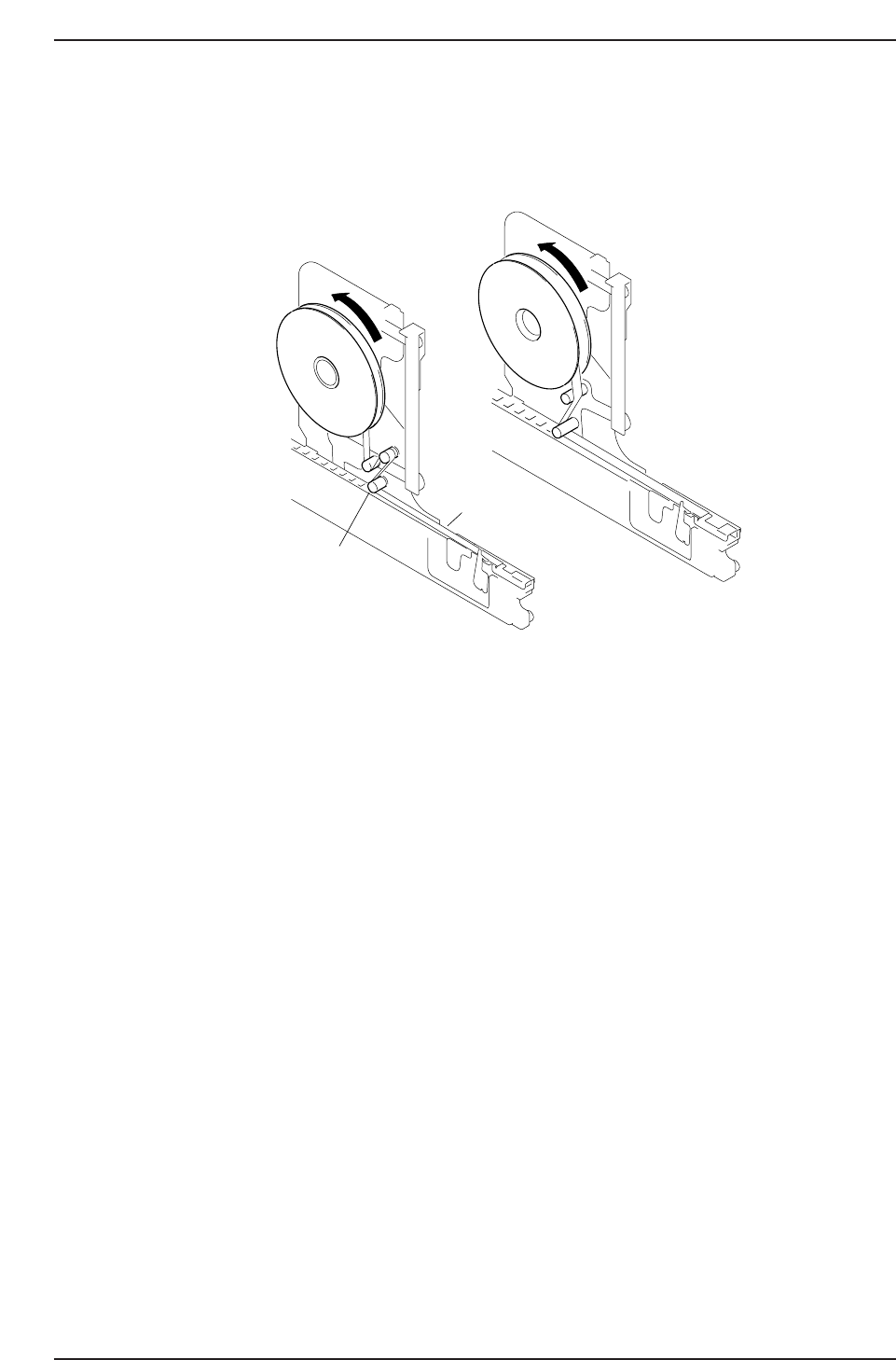

7. After feeding the top-film through the rollers, turn the take-up reel in the direction

of the arrow as shown. When the top-film is wound too tight, it is necessary to

turn the take-up reel in the opposite direction. Because there is resistance in the

take-up reel axis, it is necessary to use a little force when turning.

Setting the Top-film

Note: Take-up problems may occur if the top-film is not set properly.

W8, W12 x P4

W12 x P8

Roller

Top-film

CP6M8012

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-8 CP-6 Series Mechanical Reference
