1.7 Cleaning the Tapered Clutches at Nozzle Rotation

Axes (Every Month)

Point

Following extended periods of operation, the tapered clutches at the nozzle rotation axes

can become spattered with grease, etc., from the machine, causing the clutches to slip. A

slipping clutch makes it difficult to rotate and position a nozzle at the proper mounting

angle. The clutches should therefore be cleaned regularly, using the grease cleaner

(ThreeBond 2706) provided with the machine.

Procedure

WARNING

• Always be sure to cut off the 200 V power before carrying out any

work.

• Exercise extreme caution when working on the machine if the cam is

not at its origin (0 deg.). Recoil of the cam axis can endanger the

operator.

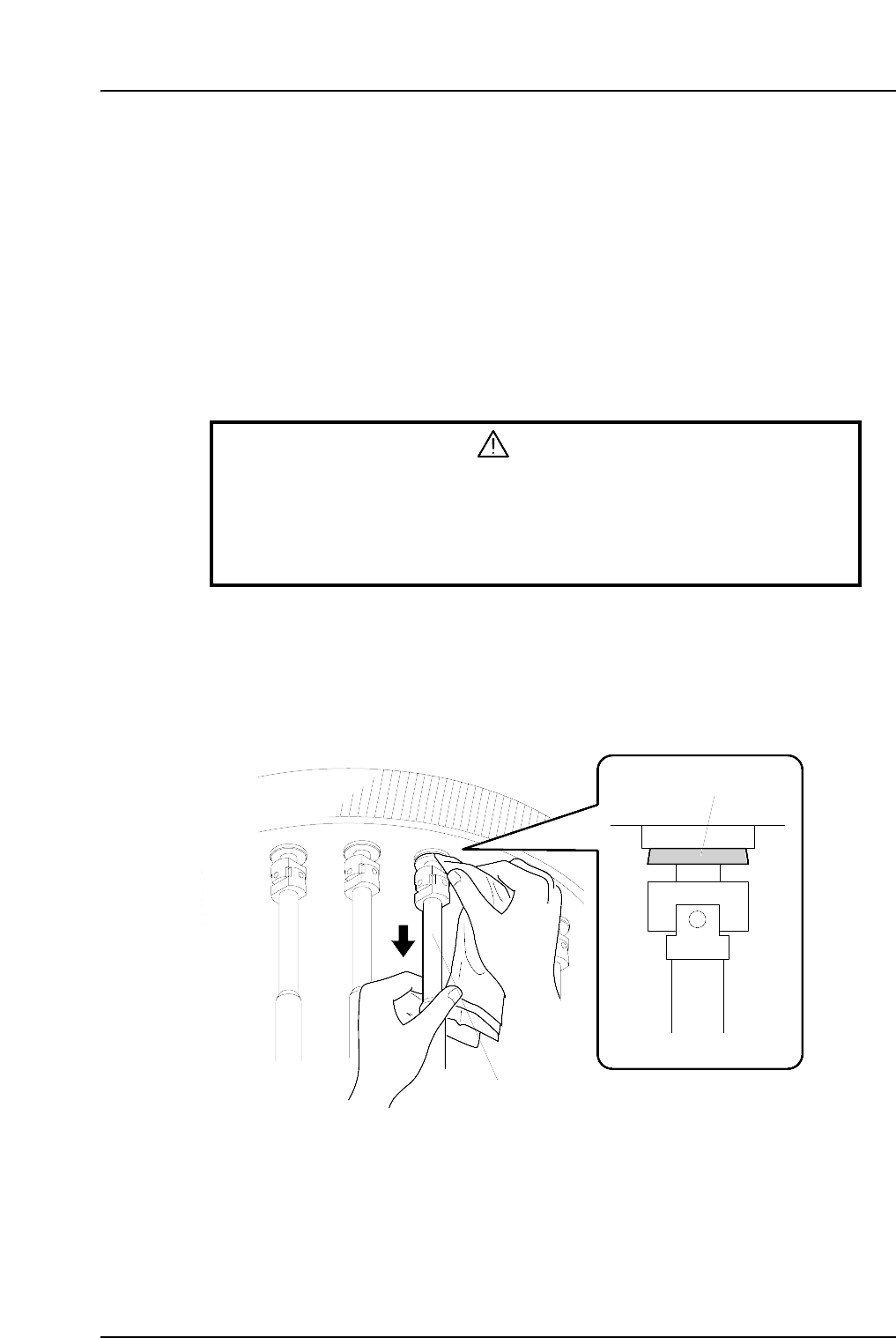

Pull the outer shaft of the nozzle rotation axis downward, then wipe the tapered clutch

clean using a cloth which has been wetted with grease cleaner.

Note: Do not spray the grease cleaner directly on the tapered clutch because the cleaner could

land on other parts as well, removing their lubricant.

Tapered clutch

Outer shaft

CP6M3005

Part 3 Chapter 1 Cleaning

Edition 1.1 3-1-6 CP-6-series Mechanical Reference

1.8 Control Box Air Filter Cleaning (Every Month)

Point

If the air filter is clogged the effectiveness of the cooling fan will be reduced, and the

temperature in the control box will rise. If the machine is operated in this condition there

is a danger that the servo amplifiers and VME board will not function correctly.

In order to prevent clogging, clean off dust and dirt every month.

Part 3 Chapter 1 Cleaning

Edition 1.1 3-1-7 CP-6-series Mechanical Reference

1.9 Cleaning the Filter Regulator (Every Week)

Point

The air flowing within the pneumatic piping needs to be clean at all times.

A dirty filter element may make it impossible to supply clean air and lead to equipment

breakdown.

Procedure

WARNING

Always be sure to cut off the main power before carrying out any work.

Hold down the lock knob and remove the filter case. Wash the filter case with a mild,

non-alkaline detergent.

Note: The element should be replaced every two years.

O-ring

Element

Lock knob

Filter case

O-ring

Element

Lock knob

Filter case

CP6M3006

Part 3 Chapter 1 Cleaning

Edition 1.1 3-1-8 CP-6-series Mechanical Reference
