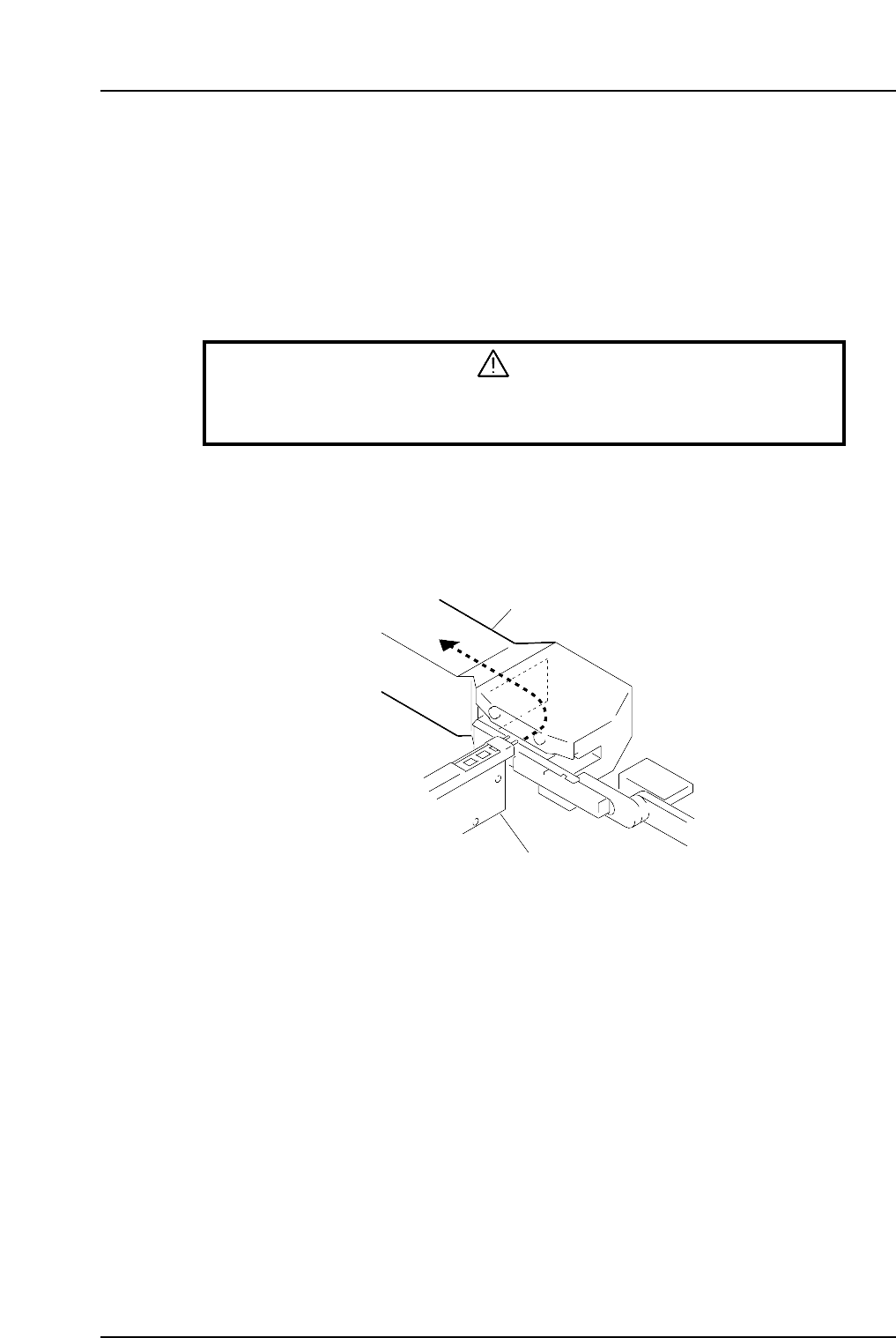

1.5 Cleaning the Tape Suction Path (Every 8 Hours)

Point

After the end of the tape is cut off by the cutter, it is drawn into the suction path in the

course indicated by the arrows. If this area becomes blocked by waste tape, tape feed

will be impeded and part pick-up will be unreliable.

Procedure

WARNING

Always be sure to cut off the 200 V power before carrying out any

work.

Inspect this area for blockage if tape feed abnormalities cause pick-up errors during

automatic production.

Do not use an air gun to blow out any waste tape that becomes clogged in the duct but

rather use a vacuum cleaner to suck the waste tape out.

Duct pipe

Feeder

CP6M3004

Part 3 Chapter 1 Cleaning

Edition 1.1 3-1-4 CP-6-series Mechanical Reference

1.6 Cleaning the Prism Surfaces (Every Week)

Point

Oil or dirt on the surfaces of the prisms can lead to problems such as reduced light

strength and distortion of the image. This may affect the placing accuracy.

Procedure

WARNING

Always be sure to cut off the 200 V power before carrying out any

work.

Wipe the prism surfaces clean with clean gauze once a week.

Part 3 Chapter 1 Cleaning

Edition 1.1 3-1-5 CP-6-series Mechanical Reference

1.7 Cleaning the Tapered Clutches at Nozzle Rotation

Axes (Every Month)

Point

Following extended periods of operation, the tapered clutches at the nozzle rotation axes

can become spattered with grease, etc., from the machine, causing the clutches to slip. A

slipping clutch makes it difficult to rotate and position a nozzle at the proper mounting

angle. The clutches should therefore be cleaned regularly, using the grease cleaner

(ThreeBond 2706) provided with the machine.

Procedure

WARNING

• Always be sure to cut off the 200 V power before carrying out any

work.

• Exercise extreme caution when working on the machine if the cam is

not at its origin (0 deg.). Recoil of the cam axis can endanger the

operator.

Pull the outer shaft of the nozzle rotation axis downward, then wipe the tapered clutch

clean using a cloth which has been wetted with grease cleaner.

Note: Do not spray the grease cleaner directly on the tapered clutch because the cleaner could

land on other parts as well, removing their lubricant.

Tapered clutch

Outer shaft

CP6M3005

Part 3 Chapter 1 Cleaning

Edition 1.1 3-1-6 CP-6-series Mechanical Reference
