1.13 Feeder Setting Restrictions
Because there are restrictions when setting feeders on the device table, refer to the
following tables for limitations.

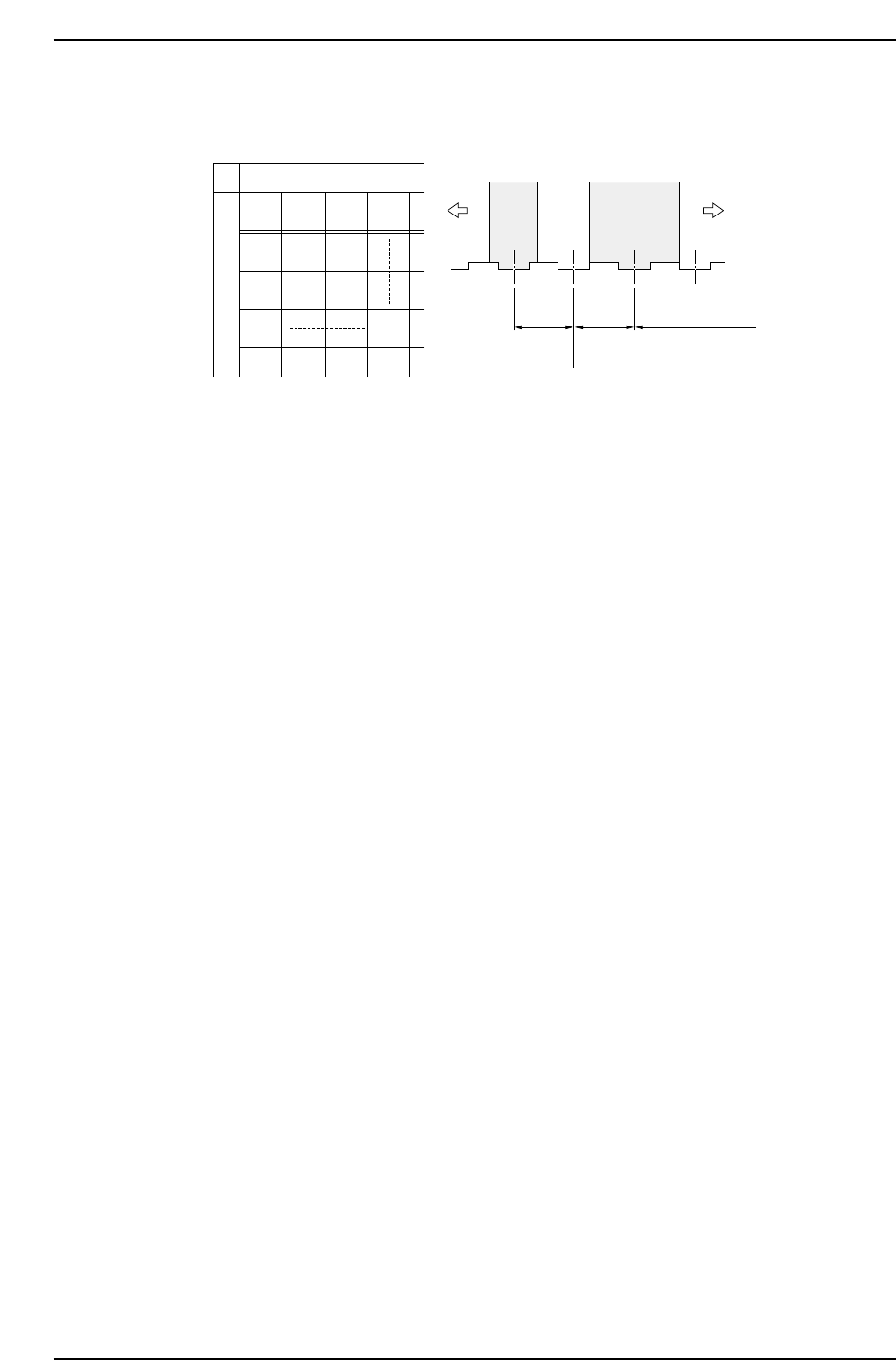

Device Table Edge Restrictions
Pitch Requirements between Feeders
Note : 1. The expressions “Left side” and “Right side” refer to the feeder mounting positions
when viewed from the back of the machine.
2. The numbers in the table (1P, 2P, 3P) refer to the number of device slots required
from the center of one feeder to the center of the next.
3. The numbers in parentheses indicate the number of empty device spaces between
feeders.
W8
W12
W16
W24
W32(J )
W32(E)
W44
W8
1P(0)
2P(1)
2P(1)
2P(1)
3P(2)
2P(1)
3P(2)
W12
2P(1)
2P(1)
2P(1)
2P(1)
3P(2)
3P(2)
3P(2)
W16
2P(1)
2P(1)
2P(1)
2P(1)
3P(2)
3P(2)
3P(2)
W24
2P(1)
2P(1)
2P(1)
3P(2)
3P(2)
3P(2)
3P(2)
Left side
Right side
W32(J)
2P(1)
3P(2)
3P(2)
3P(2)
3P(2)
3P(2)
3P(2)
W32(E)
2P(1)
3P(2)
3P(2)
3P(2)
3P(2)
3P(2)
3P(2)
W44
3P(2)
3P(2)
3P(2)
3P(2)
4P(3)
3P(2)
4P(3)
CP6M8069a
Device No.
D1
D70
D71
D140
W8
W12
X
X
X
X
W16
X
X
X
X
W24
X
X
X
X
W32(J)
X
X
X
X
W32(E)
X
X
X
X
W44
X
X
X
X
CP6M8069
Part 8 Chapter 1 WC Feeders
Edition 1.0 8-1-45 CP-6 Series Mechanical Reference
Table Explanation Example
On the right side of the W16 feeder is a W24 feeder (viewed from the rear).
Table Explanation Example
W24
W16
2 P(1)
Left side
Right side
Left
Right
Feeder pitch 2P
Open slot (1)
CP6M8070
Part 8 Chapter 1 WC Feeders
Edition 1.0 8-1-46 CP-6 Series Mechanical Reference
2. Feeder Maintenance
2.1 Disassembling the Feeder (WC type)
This section describes disassembly for the link assembly, sprocket and replacing the
feeding lever springs.

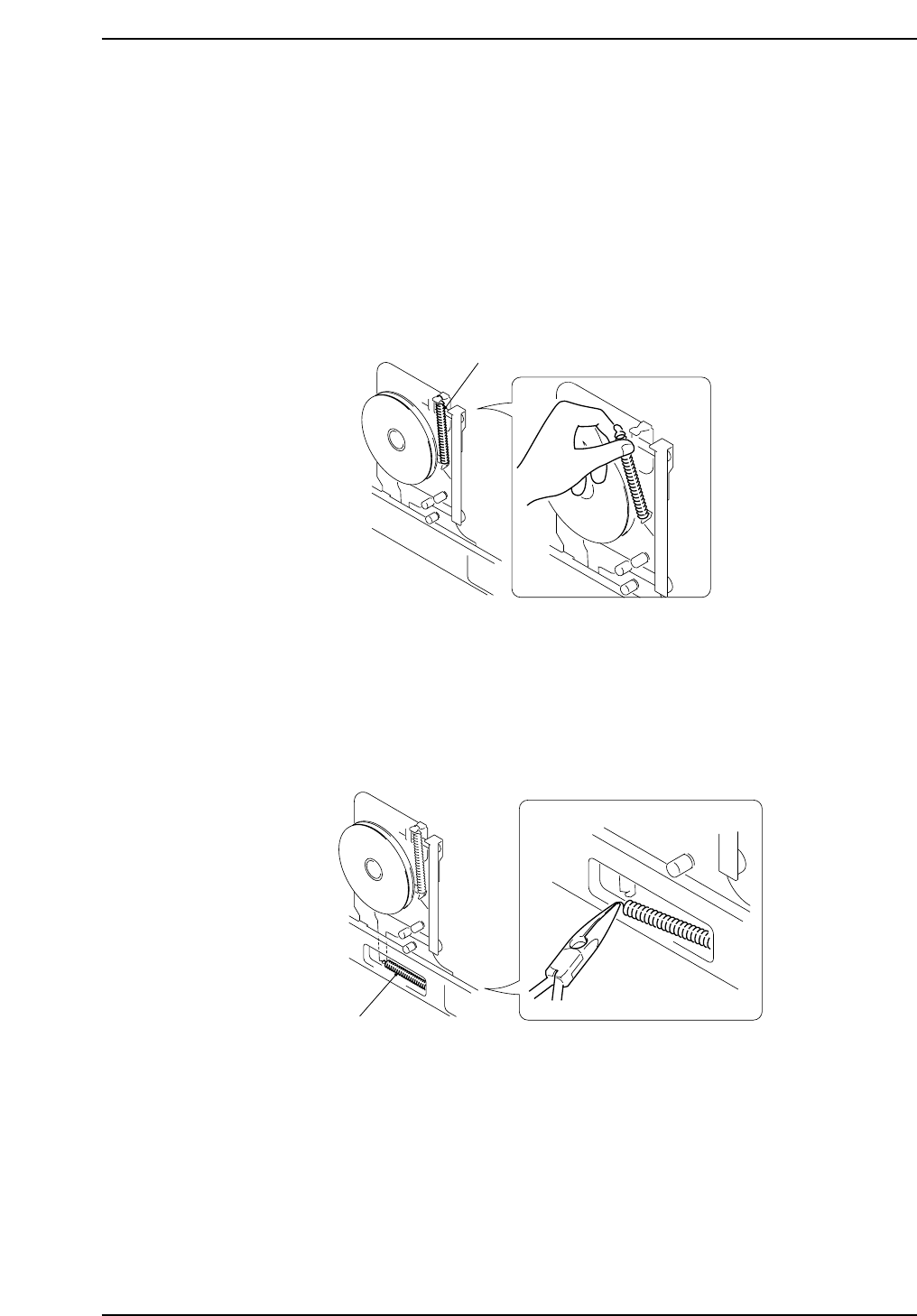

1. Remove the tape leaf. Unlock the tape leaf lock. When the E-ring and the pin are
removed, the tape leaf can be removed.
2. Remove the spring used for top-film take-up. Because this spring is weak, it is OK
to remove using your fingers.
Removing Top-film Take-up Spring
3. Remove the spring used for tape feed. Use needle nose pliers or other similar type
tool to remove the spring from the bracket. Because the spring is strong, do not
use your fingers to remove.
Replacing the Tape Feed Spring
Tape feed spring
CP6M8072
Top-film take-up spring
CP6M8071
Part 8 Chapter 2 Feeder Maintenance
Edition 1.0 8-2-1 CP-6 Series Mechanical Reference
