9
Tg1097-ID-OP

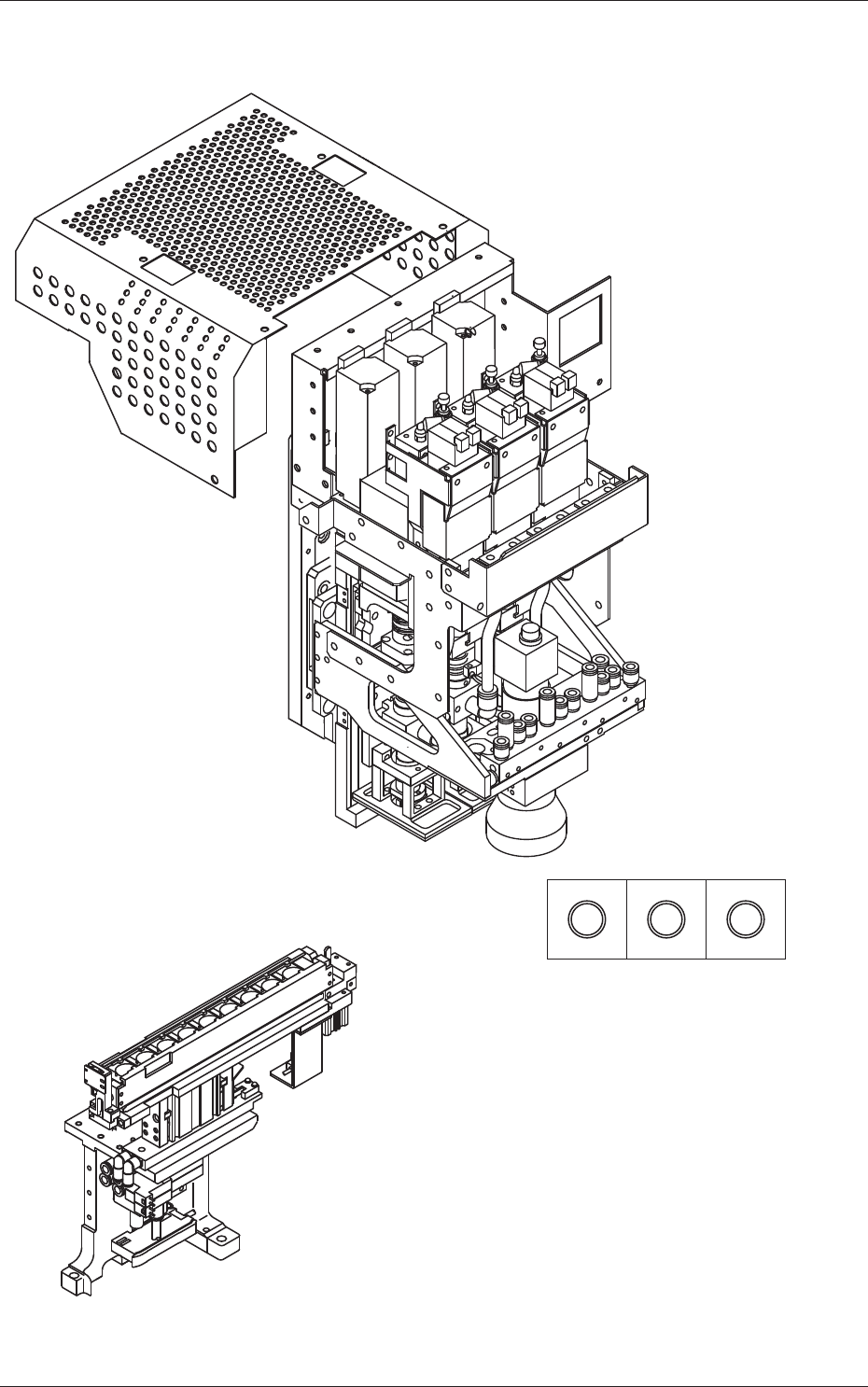

3. Rough View
0708-003
3. Rough View
Nozzle Arrangement on Head
(Three nozzles connected in series)
Fig. 1
10
Tg1097-ID-OP
4. Installation Position
0411-002

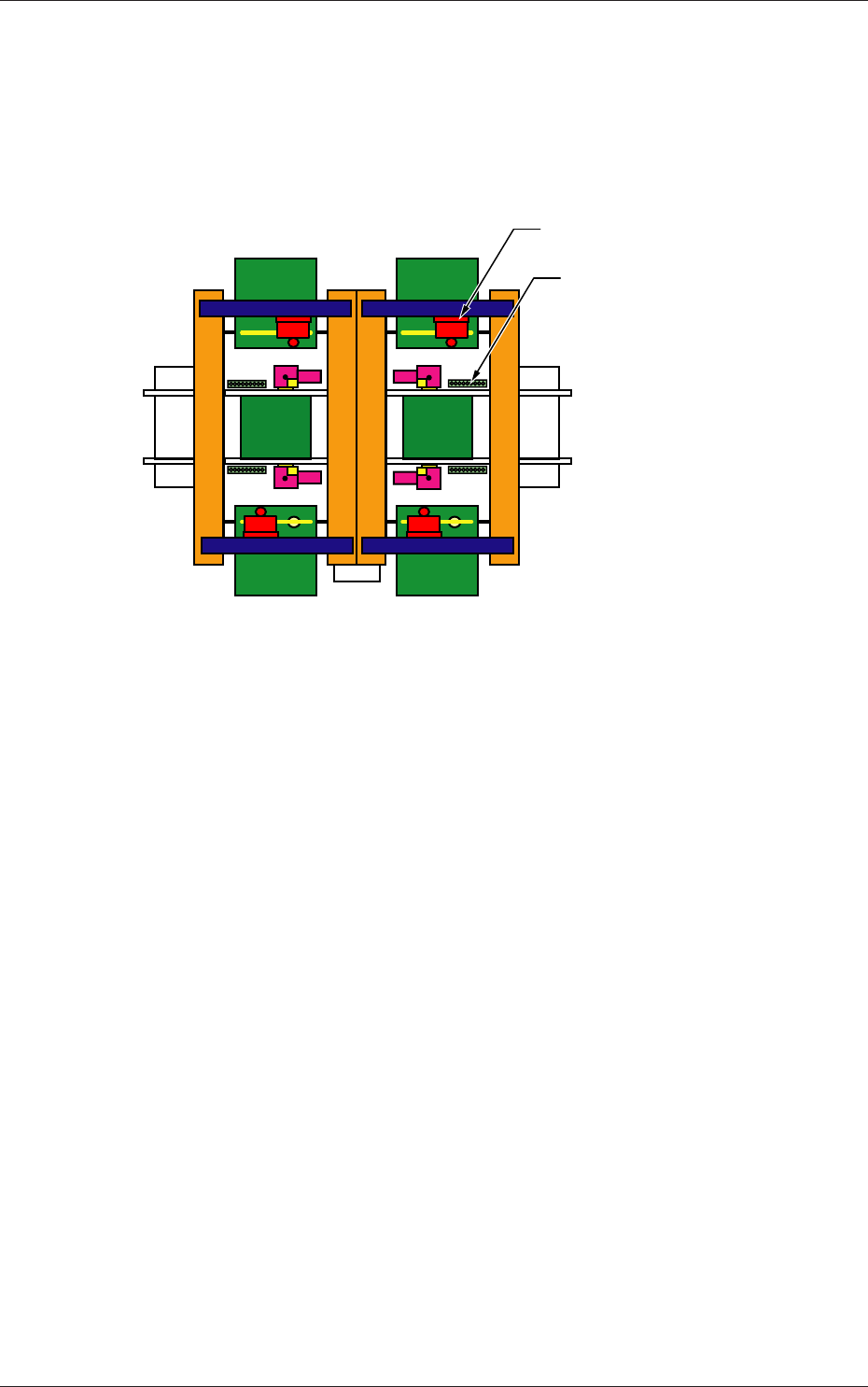

4. Installation Position
A multi-functional head can be attached to any beam to replace a high-speed
head.
Also, a multi-functional head can be combined with a high-speed head in a
single stage.
(Front Side of Machine)
(Rear Side of Machine)
Nozzle Stocker
Multi-Functional Head
Fig. 2
11
Tg1097-ID-OP
0411-002
5. Nozzle Change in the "Set-up" Operation
5. Nozzle Change in the "Set-up" Operation
(1) Check the nozzles to be used in the placement head/nozzle data of the
pattern program for the production model.
(2) Check the placement head/nozzle data (nozzle stockers) in the "Nozzle
Data" window.
Note
When the nozzles to be used are not registered, search them in the
list of nozzle types and register them.

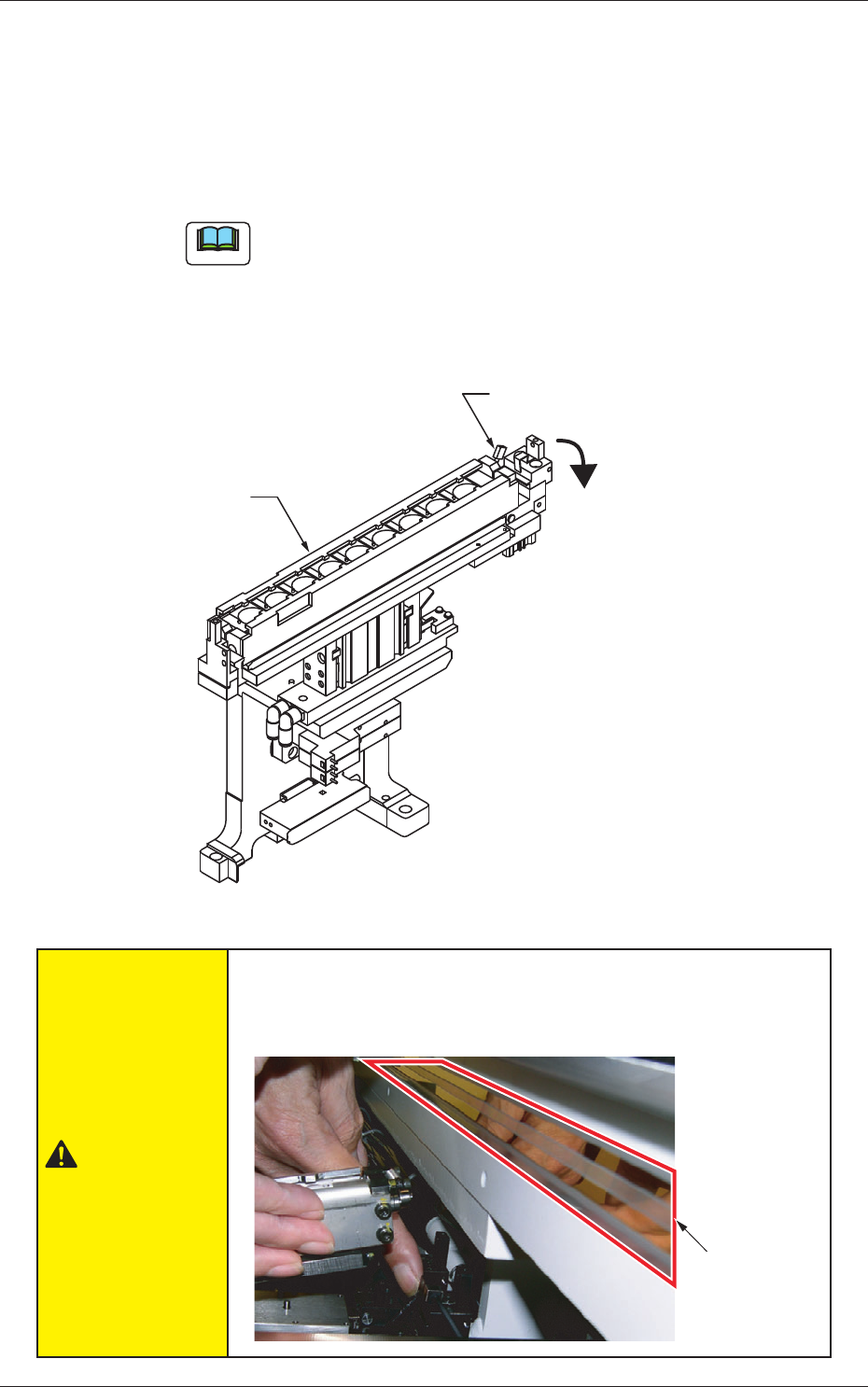

(3) While holding the nozzle stocker by hand, push down the lever of the
nozzle stocker section and detach the nozzle stocker from the nozzle
stocker section.
Fig. 3
CAUTION
Take care so that your finger or the nozzle stocker does not
touch the linear scale when the nozzle stocker is removed or
attached, because it might cause system breakdown or injury.
Linear Scale
.
