5
Tg1097-ID-OP
1. Scope
This unit manages the multi-functional components in the Direct Drive
Modular Mounter GXH series.
There are three nozzles, placed in series, for each head.
2. Specifications
Item Description Special Item
1. Model Name
HM-G100
2. Construction
•Multi-Functional Head : HM-G100
• Multi-Functional Nozzle Stocker : G-S003-06 (For the Blocks 1 and 4)
: G-S003-07 (For the Blocks 2 and 3)
• For attaching to the main body : G-S050-07
(GXH-1, 1S
For the Blocks 1 and 4)
: G-S050-08
(GXH-1, 1S For the Blocks 2 and 3)
3. Throughput Chip-Type Components : 24,000 CPH/4 Head
QFP : 20,000 CPH/4 Head
Note
: Excluding the PCB transition time under optimum conditions.
4. Conditions of
PCB before
Placement
(Regulation
of Component
Height)
Note :
The dimensions are those for design reference.
Leave some room for the actual setting.
3.0
PCB
PCB Support Pin
(Shows the time of PCB transfer.)
Previously-placed
Components Unallowed
Range
Component
3.0
3.0 3.0
4
Max. 25.4
PCB Support Pin (Several Places)
Notes: (a) The pin can be shifted at "20 mm" pitch.
(The shifting is partly possible at "10 mm" pitch.)
(b) Set the support pins such that they do not touch
the already placed components.
(c) The figure shows that the PCB is being supported.
(Front Side of Machine)
Max. 30
1. Scope
0708-003
Unit : mm
6
Tg1097-ID-OP
Item Description Special Item

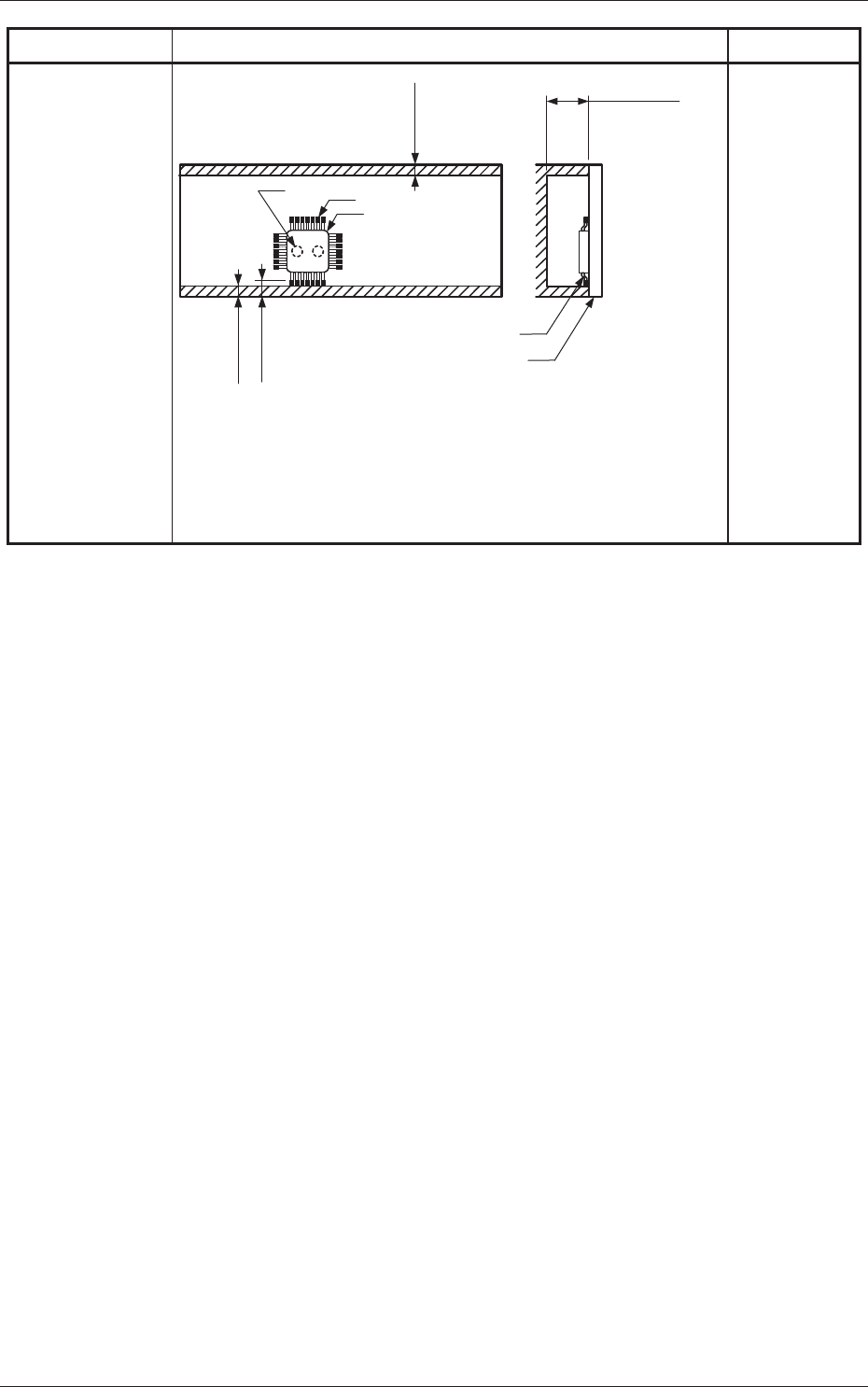

5. Component
Placeable
Range
Unit : mm
Notes :
(a) The above figure shows that the vacuum nozzles are not
protruding from the outer shapes of components.
(b) Components cannot be placed in the shadowed area.
Components cannot be placed in the range (0.5 mm)
around the opening such as a hole.
0708-003
2. Specifications
QFP
Min. 3.5
Min. 3.8
Min. 3.5
Solder Paste
Glue
QFP
PCB
Max. 25.4
Upper
Surface of PCB
(Front Side of Machine)
