38 Tg1097-ID-OP 0708-002 1 1.2 Understanding of Maintenance Items on Each Section 1 1.2 Understanding of Maintenance Items on Each Section Clariﬁed in this session are each individual spots of the machine to be maintaine…

Tg1097-ID-OP

0708-002

11. Maintenance Spots

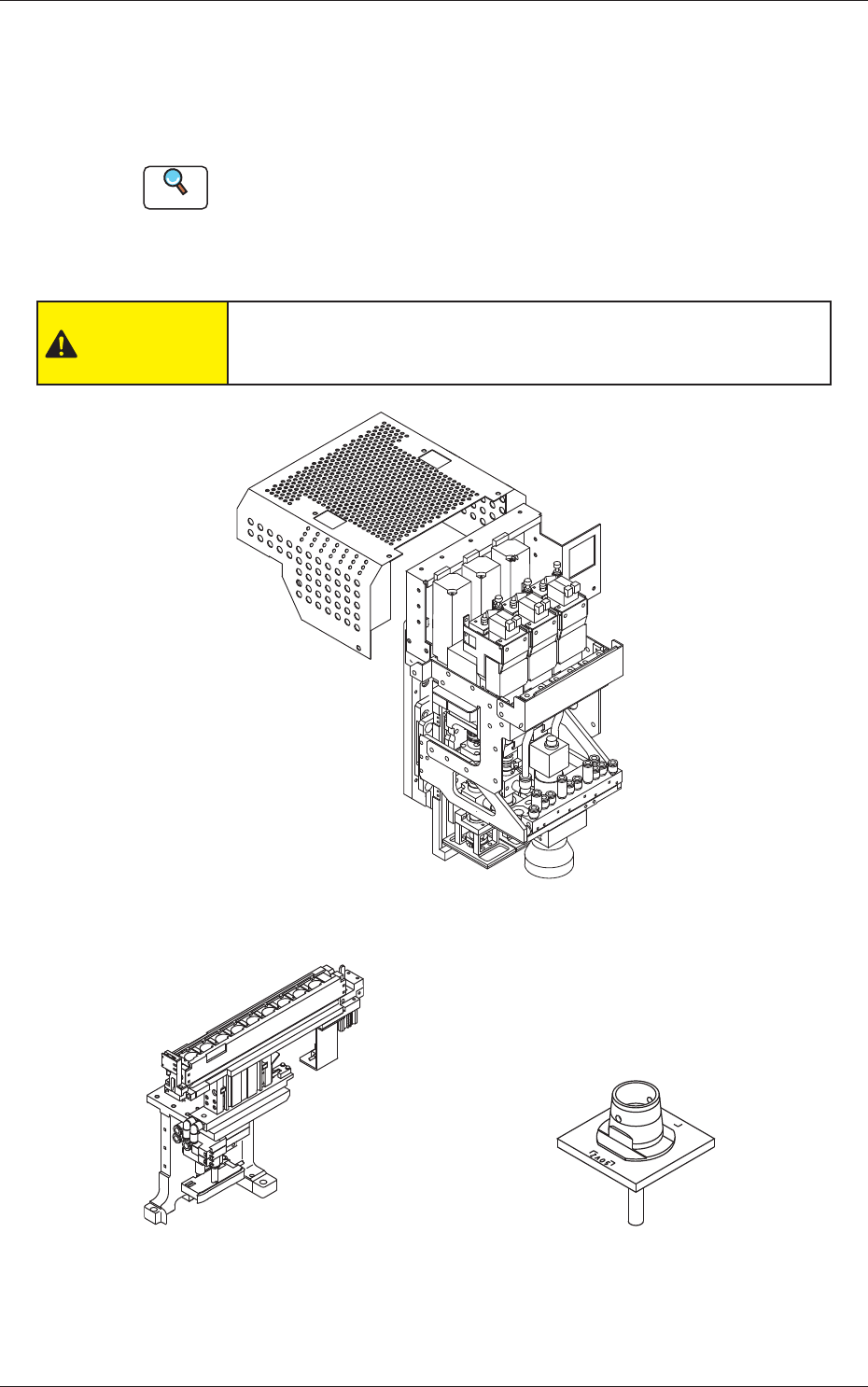

11.1 Whole View

Reference

Refer to "11.3 Inspection, Cleaning, and Lubrication Spots" and the

subsequent items for the detailed information on the spots of each

section to be maintained and how to maintain them.

CAUTION

• After the maintenance work, be sure to attach the cover back

in place.

Fig. 10 Placement Head

Fig. 11 Nozzle Stocker Fig. 12 Vacuum Nozzle

Tg1097-ID-OP

0708-002

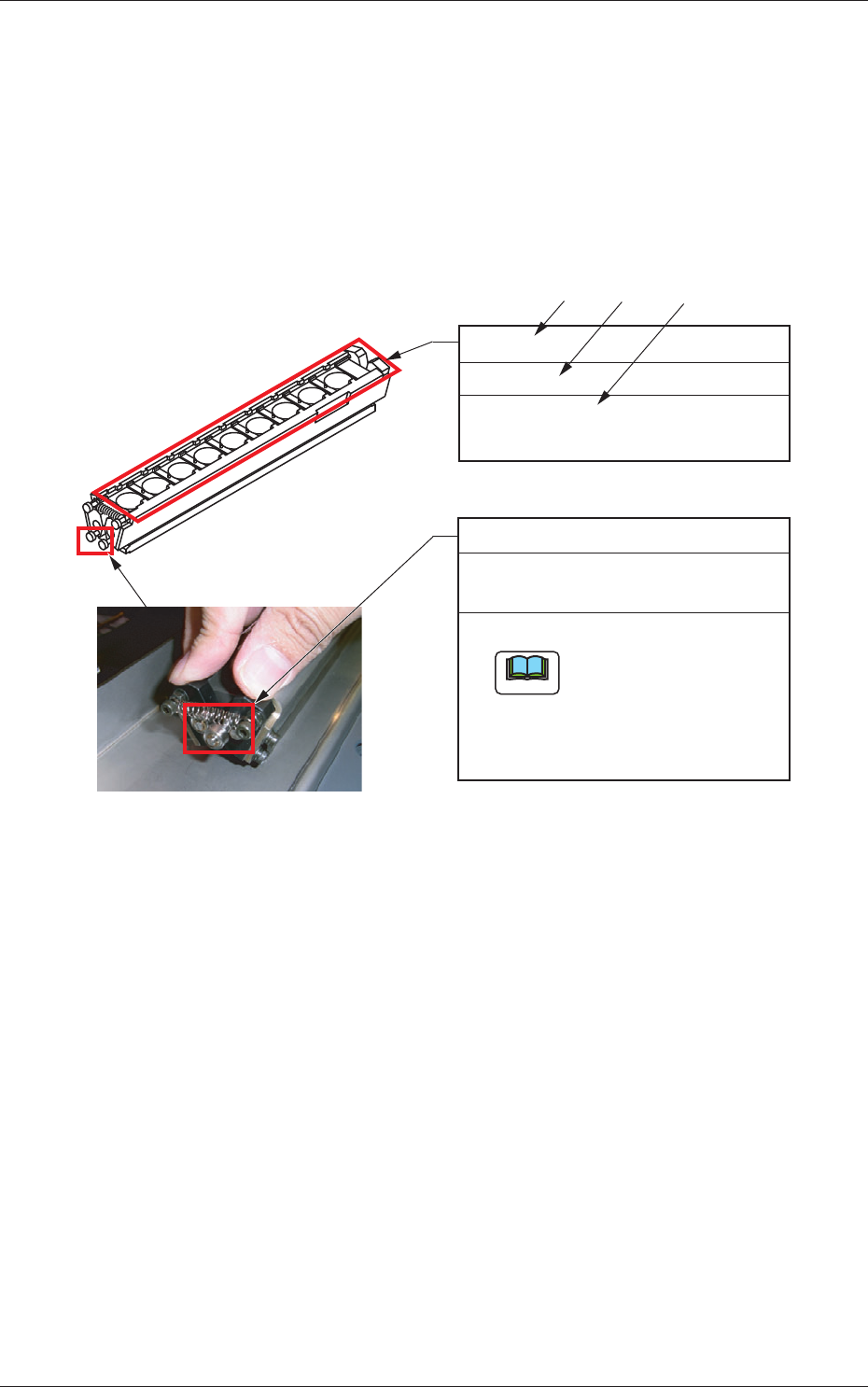

11.2 Understanding of Maintenance Items on Each Section

Clariﬁed in this session are each individual spots of the machine to be

maintained.

Refer to "10. Maintenance Check List" for periodic maintenance.

View of Inspection, Cleaning, and Lubrication Spots

(Example of Identiﬁcation)

Nozzle Storage Section

Every Month Cleaning

Wipe off dirt and dust with a rag.

[1] [2] [3]

Cam Follower

Every Month Cleaning and Lubrication

(DAPHNE EPONEX GREASE No. 1)

Note

(1) Wipe off old grease with an oiled rag.

Take ample care not to leave

the waste threads after the

old grease is wiped off.

(2) Apply new grease by hand or with

a brush.

Fig. 13

[1]:

Maintenance Spot

[2]:

Cycle and Contents of Maintenance

[3]:

Details of Maintenance

Tg1097-ID-OP

0708-002

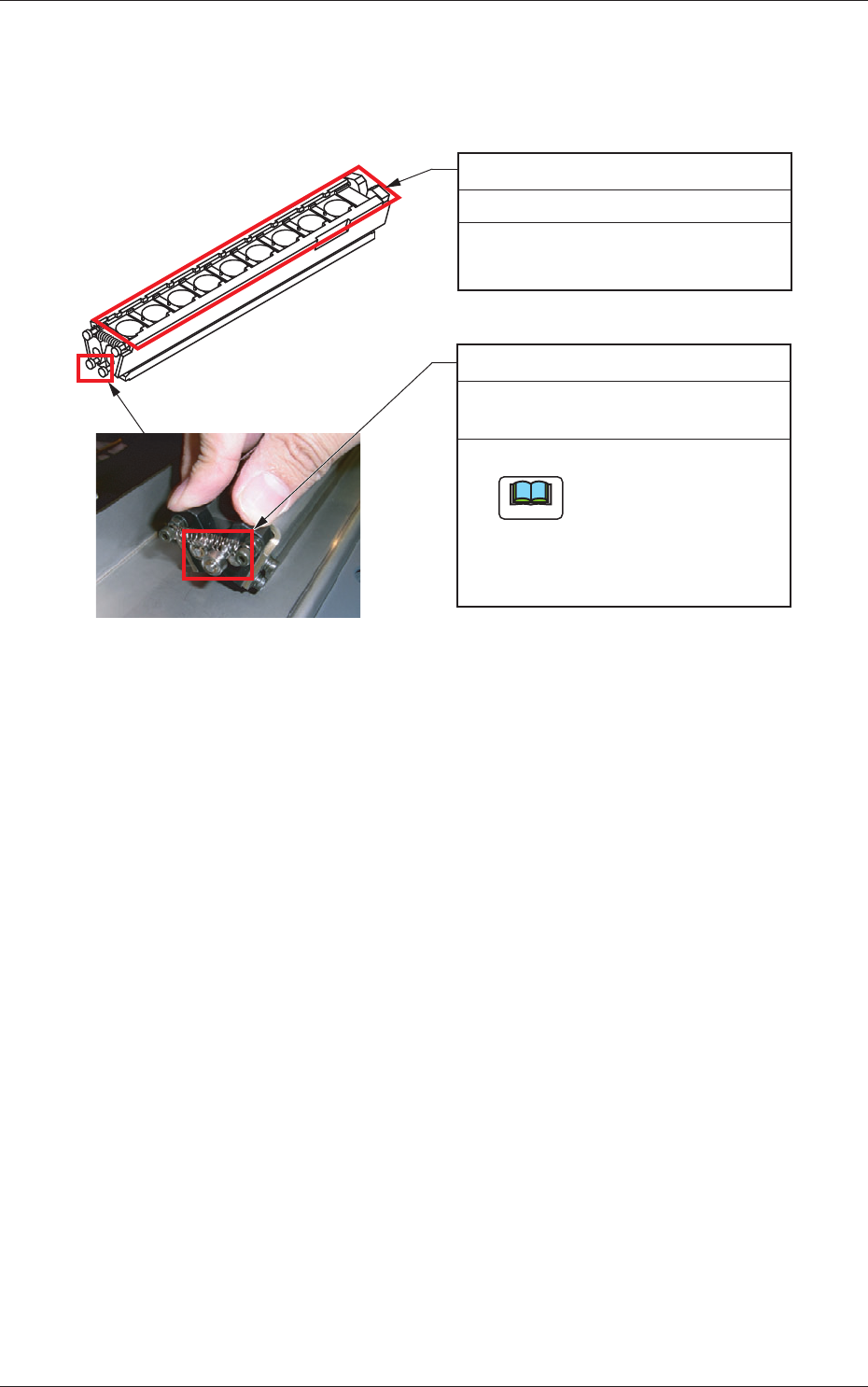

11.3 Inspection, Cleaning, and Lubrication Spots

11.3.1 Nozzle Stocker

(1) Wipe off old grease with an oiled rag.

Take ample care not to leave

the waste threads after the

old grease is wiped off.

(2) Apply new grease by hand or with

a brush.

Nozzle Storage Section

Every Month Cleaning

Wipe off dirt and dust with a rag.

Cam Follower

Every Month Cleaning and Lubrication

(DAPHNE EPONEX GREASE No. 1)

Note

Fig. 14 Nozzle Stocker
