23 Tg1097-ID-OP 0708-003 8.3 Nozzle Stocker Offset 8.3 Nozzle Stocker Offset This procedure teaches the offset to secure the nozzle stocker position (machine coordinate reference). The inclination in direction X from the…

Tg1097-ID-OP

0708-003

•

Rotation Angle

Z-axis Angle Deviation

Fig.7-3

8.2 Head Rotation Center Offset/Basis Mark Position Teaching

Tg1097-ID-OP

0708-003

8.3 Nozzle Stocker Offset

This procedure teaches the offset to secure the nozzle stocker position

(machine coordinate reference). The inclination in direction X from the

recognition mark for the recognized nozzle stocker section, is calculated

and the values are reﬂected automatically on the nozzle stocker offset in

directions X and Y.

(1) When the [OTHERS] button is pressed on the "TEACHING"

submenu bar, the menu bar for the other teaching functions pops

up.

(2) Press the [NOZ STK OFFSET] button on the pop-up menu bar.

[5]

[1]

[2]

[3]

[4]

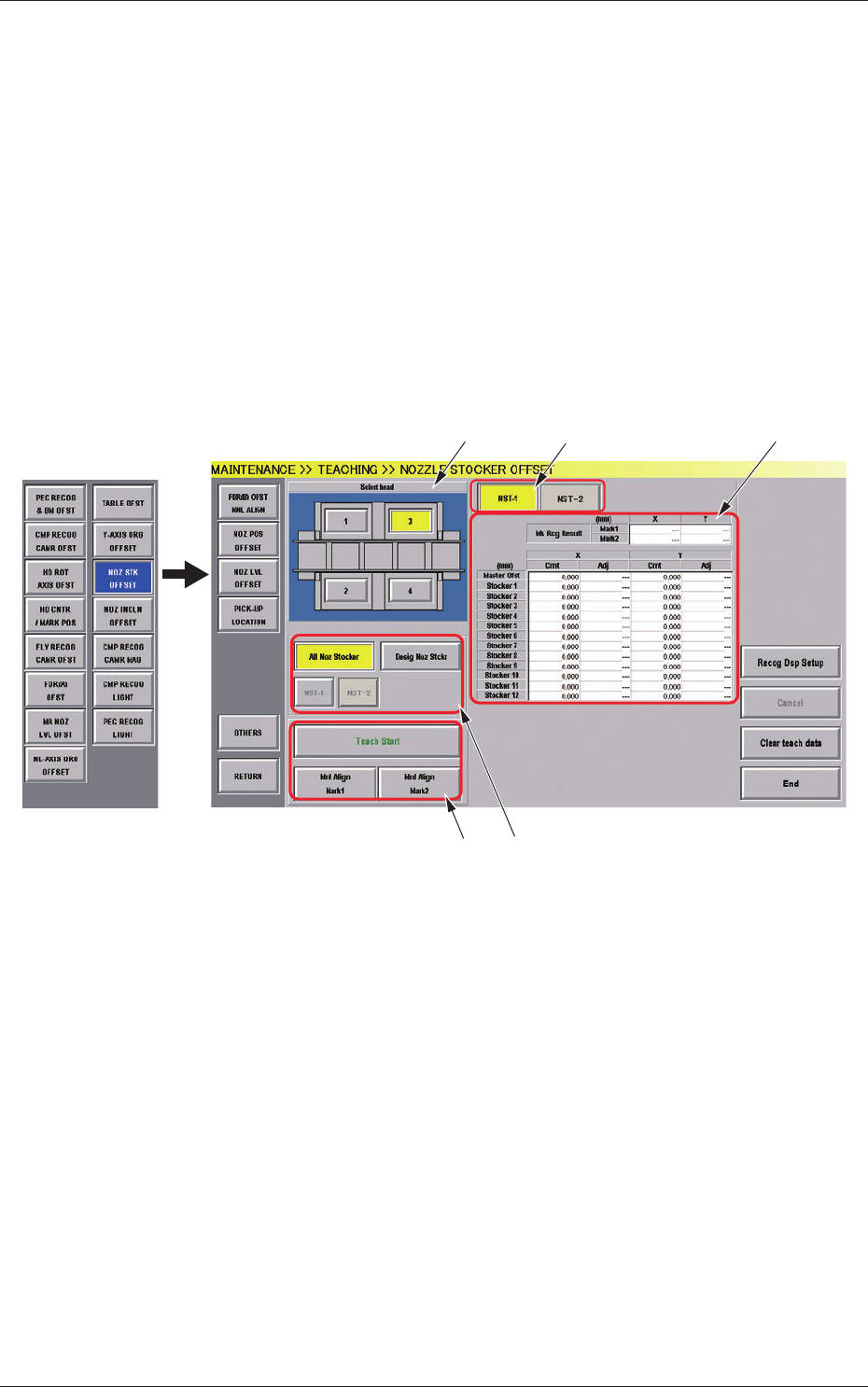

Fig.7-4 "NOZZLE STOCKER OFFSET" Window

[1] Select Head Button

The button images showing the head positions are displayed.

Using these images, the PEC recognition camera to be used in the

teaching, is selected.

[2] Nozzle Stocker Select Button

[NST-1], [NST-2] Button

Pressing the [NST-1] or [NST-2] selects the nozzle stocker for

which the offset is displayed.

Tg1097-ID-OP

0708-003

[3] "Offset" Display

The offset value (pulse value (mm)) for the selected nozzle stocker is

displayed.

Master Offset :

It shows the deviation from the nozzle stocker designed position

(machine coordinate reference).

The recognition mark (inside) on the nozzle stocker section

is recognized and the values are reﬂected automatically in the

values in X and Y.

Stocker (1 to 9) :

This section shows the data for each stocker to correct the

deviation from the nozzle stocker designed position.

The recognition mark on the nozzle stocker section is recognized

and the inclination in direction X is calculated.

Then the results are reﬂected automatically on the values in X

and Y of the nozzle stocker position.

Cmt

: Offset values before teaching

Adj

: Offset values obtained as the result of teaching

[4] Nozzle Stocker Selection Button

[All Noz Stocker] Button

The teaching results are reﬂected on all the nozzle stockers.

[Desig Noz Stocker] Button

The teaching results are reﬂected on the designated nozzle

stocker.

[NST-1], [NST-2] Button

Pressing the [NST-1] or [NST-2] selects the nozzle stocker to be

taught.

8.3 Nozzle Stocker Offset
