60
Tg1097-ID-OP

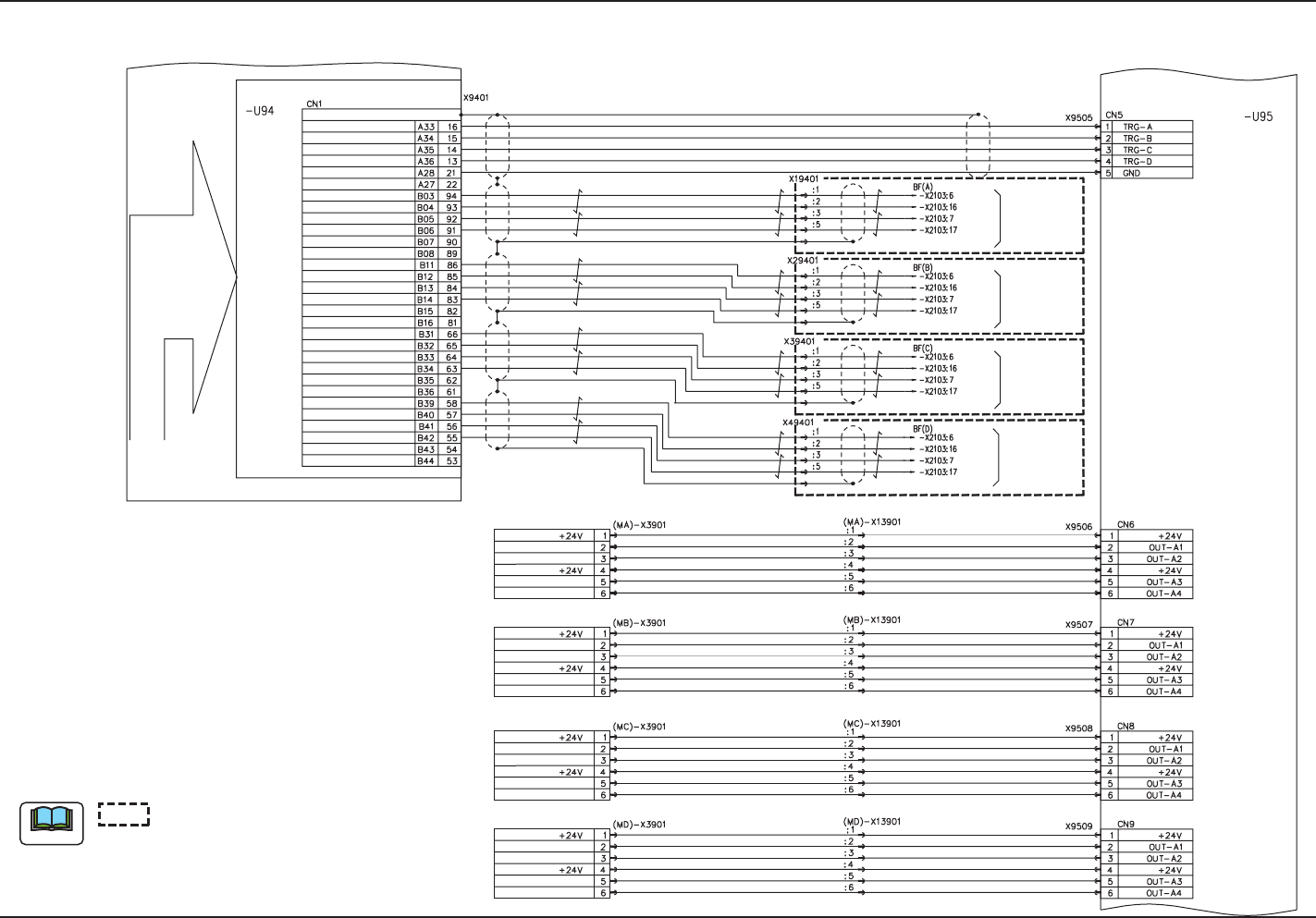

Recognition Connection Diagram (4)
0708-001 -(M803WR--A2001)
Recognition Connection Diagram (4)
shows the circuit when the
multi-functional head is mounted.
Note
Counter Board (UB07)
Bus
Recognition Box
CH0 Single Shot Output
CH1 Single Shot Output
CH2 Single Shot Output
CH3 Single Shot Output
GND
GND
CH0 Actuation A Phase Input +
CH0 Actuation A Phase Input -
CH0 Actuation B Phase Input +
CH0 Actuation B Phase Input -
CH0 Actuation Z Phase Input +
CH0 Actuation Z Phase Input +
CH1 Actuation A Phase Input +
CH1 Actuation A Phase Input -
CH1 Actuation B Phase Input +
CH1 Actuation B Phase Input -
CH1 Actuation Z Phase Input +
CH1 Actuation Z Phase Input +
CH2 Actuation A Phase Input +
CH2 Actuation A Phase Input -
CH2 Actuation B Phase Input +
CH2 Actuation B Phase Input -
CH2 Actuation Z Phase Input +
CH2 Actuation Z Phase Input +
CH3 Actuation A Phase Input +
CH3 Actuation A Phase Input -
CH3 Actuation B Phase Input +
CH3 Actuation B Phase Input -
CH3 Actuation Z Phase Input +
CH3 Actuation Z Phase Input +
(MA)-E39
PCB Recognition Lighting
(Beam A)
(MD)-E39
PCB Recognition Lighting
(Beam D)
(MB)-E39
PCB Recognition Lighting
(Beam B)
(MC)-E39
PCB Recognition Lighting
(Beam C)
PCB Recognition Lighting (Ring)
PCB Recognition Lighting (Coaxial)
PCB Recognition Lighting (OP)
(Reserved)
PCB Recognition Lighting (Ring)
PCB Recognition Lighting (Coaxial)
PCB Recognition Lighting (OP)
(Reserved)
PCB Recognition Lighting (Ring)
PCB Recognition Lighting (Coaxial)
PCB Recognition Lighting (OP)
(Reserved)
PCB Recognition Lighting (Ring)
PCB Recognition Lighting (Coaxial)
PCB Recognition Lighting (OP)
(Reserved)
Shell
Shell
Shell
Shell
A Phase
/A Phase
B Phase
/B Phase
To XA Axis -U24
A Phase
/A Phase
B Phase
/B Phase
To XB Axis -U24
A Phase
/A Phase
B Phase
/B Phase
To XC Axis -U24
A Phase
/A Phase
B Phase
/B Phase
To XD Axis -U24
Lighting Control Board (UB08)
Connector Case
61
Tg1097-ID-OP

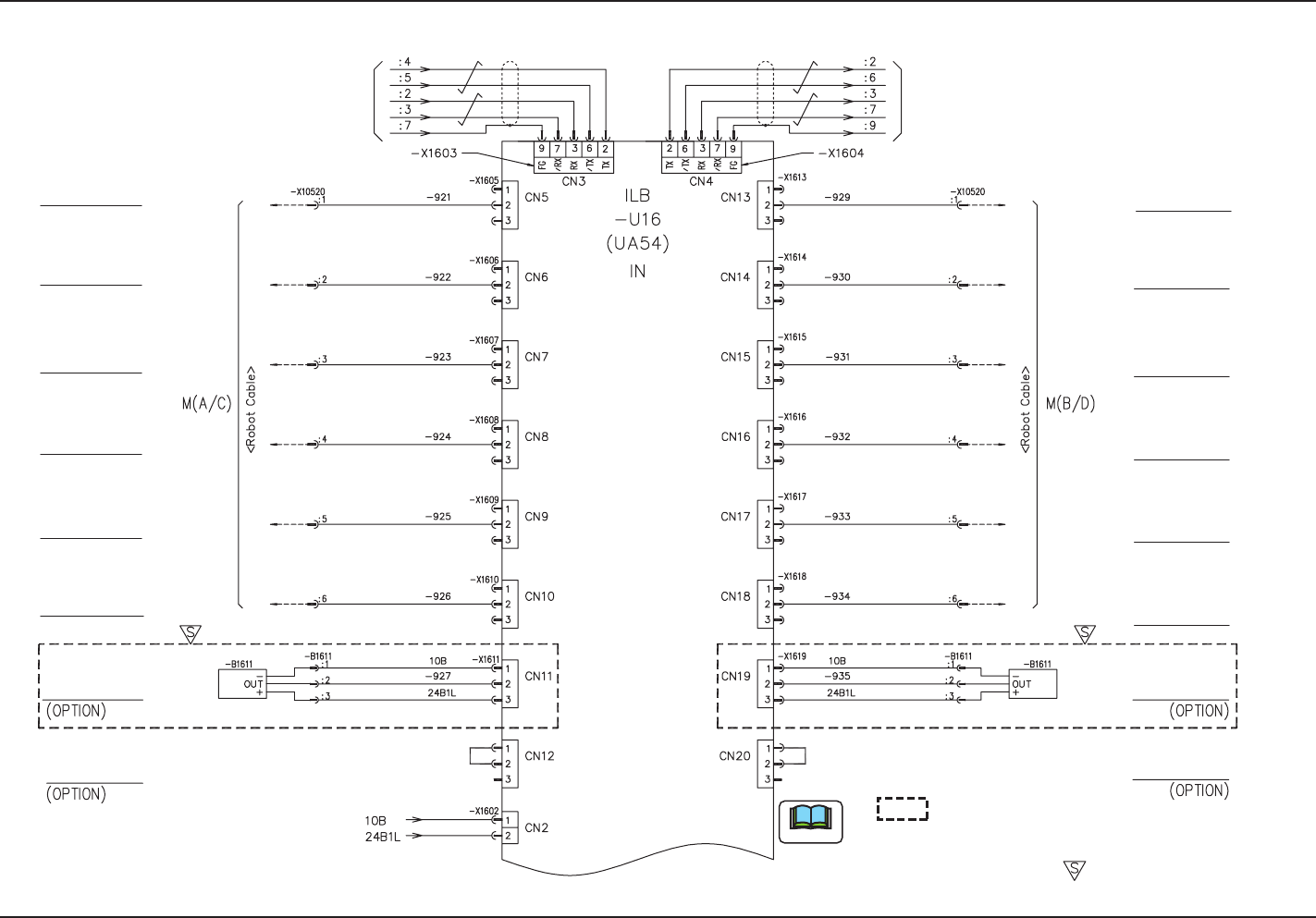

UA54 ILB-IN 1 (Multi-Functional Head)
0708-001 -(M803WM--A2015)
UA54 ILB-IN 1 (Multi-Functional Head)
(a) shows the circuit when the multi-functional head
is mounted. The pass line input connector for the head
not to be used, will be shortcut between "1" and "2".
(b) The section with the mark shows the circuit for
G-S003-06 and 07 (nozzle stocker for multi-functional
head)
-X0710(CN10)
-X0502(CN4)
-U05(UA54)ILB
-U07(UA53)I/F
Front Head
Excessive
Press-in Detection 3
Front Head
Excessive
Press-in Detection 2
Front Head
Excessive
Press-in Detection 1
Front Head
Nozzle 3 Pass Line
Rear Head
Excessive
Press-in Detection 3
Rear Head
Excessive
Press-in Detection 2
Rear Head
Excessive
Press-in Detection 1
Rear Head
Nozzle 3 Pass Line
Front Head
Disengaged Nozzle
Stocker Detection 1
Front Head
Disengaged Nozzle
Stocker Detection 2
Rear Head
Disengaged Nozzle
Stocker Detection 1
Rear Head
Disengaged Nozzle
Stocker Detection 2
Rear Head
Nozzle 2 Pass Line
Rear Head
Nozzle 1 Pass Line
Front Head
Nozzle 1 Pass Line
Front Head
Nozzle 2 Pass Line
Note
62
Tg1097-ID-OP

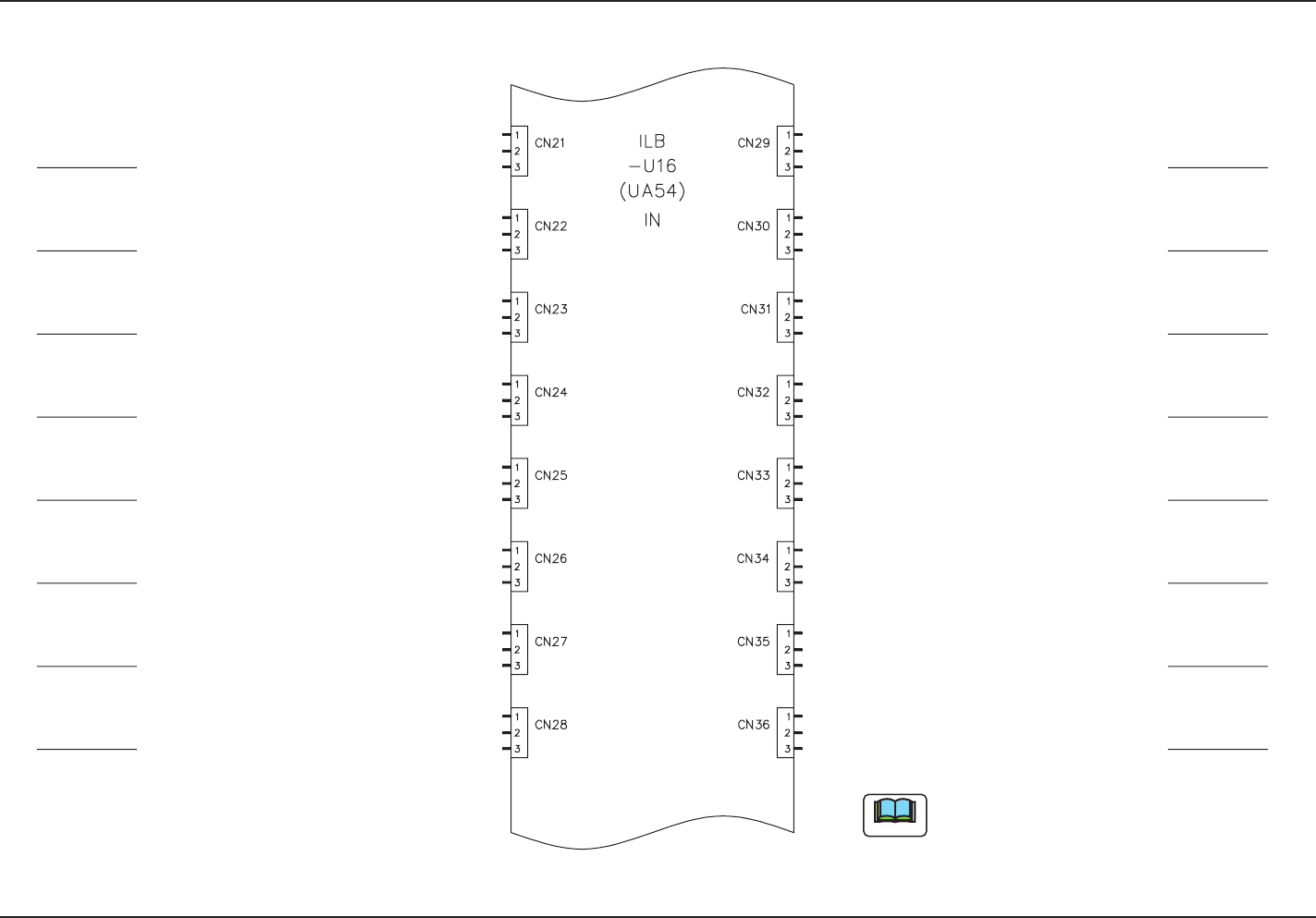

UA54 ILB-IN 2 (Multi-Functional Head)
0708-001 -(M803WM--A2010)
UA54 ILB-IN 2 (Multi-Functional Head)
It shows the circuit when the multi-functional
head is mounted.
Note
