62 Tg1097-ID-OP UA54 ILB-IN 2 (Multi-Functional Head) 0708 - 001 -(M 803 WM--A 2010 ) UA54 ILB-IN 2 (Multi-Functional Head) It shows the circuit when the multi-functional head is mounted. Note
61
Tg1097-ID-OP
UA54 ILB-IN 1 (Multi-Functional Head)
0708-001 -(M803WM--A2015)
UA54 ILB-IN 1 (Multi-Functional Head)
(a) shows the circuit when the multi-functional head
is mounted. The pass line input connector for the head
not to be used, will be shortcut between "1" and "2".
(b) The section with the mark shows the circuit for
G-S003-06 and 07 (nozzle stocker for multi-functional
head)
-X0710(CN10)
-X0502(CN4)
-U05(UA54)ILB
-U07(UA53)I/F
Front Head
Excessive
Press-in Detection 3
Front Head
Excessive
Press-in Detection 2
Front Head
Excessive
Press-in Detection 1
Front Head
Nozzle 3 Pass Line
Rear Head
Excessive
Press-in Detection 3
Rear Head
Excessive
Press-in Detection 2
Rear Head
Excessive
Press-in Detection 1
Rear Head
Nozzle 3 Pass Line
Front Head
Disengaged Nozzle
Stocker Detection 1
Front Head
Disengaged Nozzle
Stocker Detection 2
Rear Head
Disengaged Nozzle
Stocker Detection 1
Rear Head
Disengaged Nozzle
Stocker Detection 2
Rear Head
Nozzle 2 Pass Line
Rear Head
Nozzle 1 Pass Line
Front Head
Nozzle 1 Pass Line
Front Head
Nozzle 2 Pass Line
Note
62
Tg1097-ID-OP
UA54 ILB-IN 2 (Multi-Functional Head)
0708-001 -(M803WM--A2010)
UA54 ILB-IN 2 (Multi-Functional Head)
It shows the circuit when the multi-functional
head is mounted.
Note
63
Tg1097-ID-OP

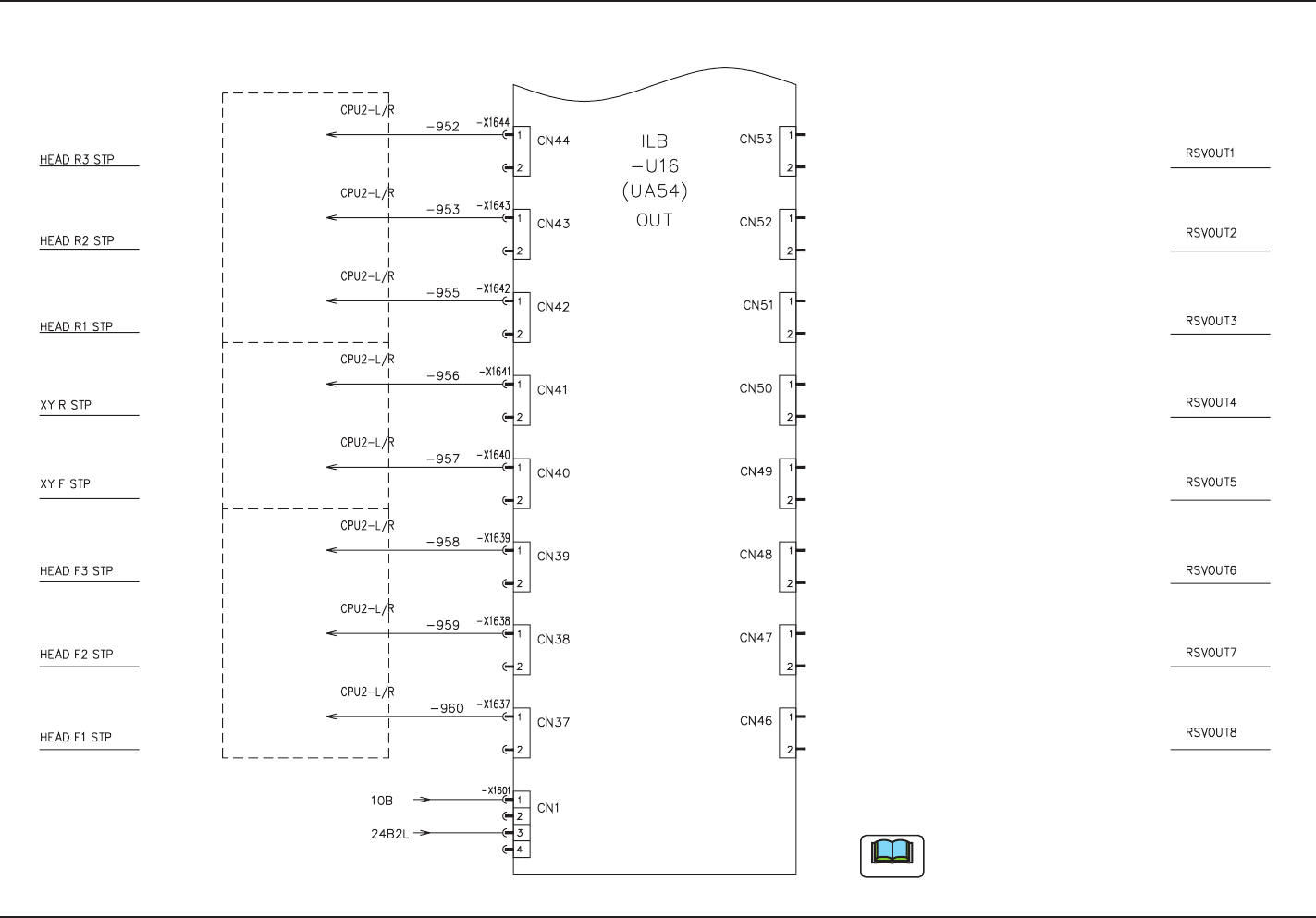

UA54 ILB-OUT (Multi-Functional Head)
0708-001 -(M803WM--A2011)
UA54 ILB-OUT (Multi-Functional Head)
It shows the circuit when the multi-functional
head is mounted.
Note
Motion Control PCB -U82
Motion Control PCB -U83
Motion Control PCB -U83
Motion Control PCB -U83
Motion Control PCB -U83
Motion Control PCB -U83
Motion Control PCB -U82
Motion Control PCB -U83
to -X8203:5
to -X8303:2
to -X8303:4
to -X8303:3
to -X8303:27
to -X8303:27
to -X8203:6
to -X8303:29
