42 Tg1097-ID-OP 0708-002 V acuum Filter Every Month Inspection Remove the vacuum filter using the vacuum filter replacing jig (attached) and check the dirt. If the vacuum filter is extremely dirty , replace it with new o…
41
Tg1097-ID-OP
0708-002
11.3 Inspection, Cleaning, and Lubrication Spots
11.3.3 Placement Head

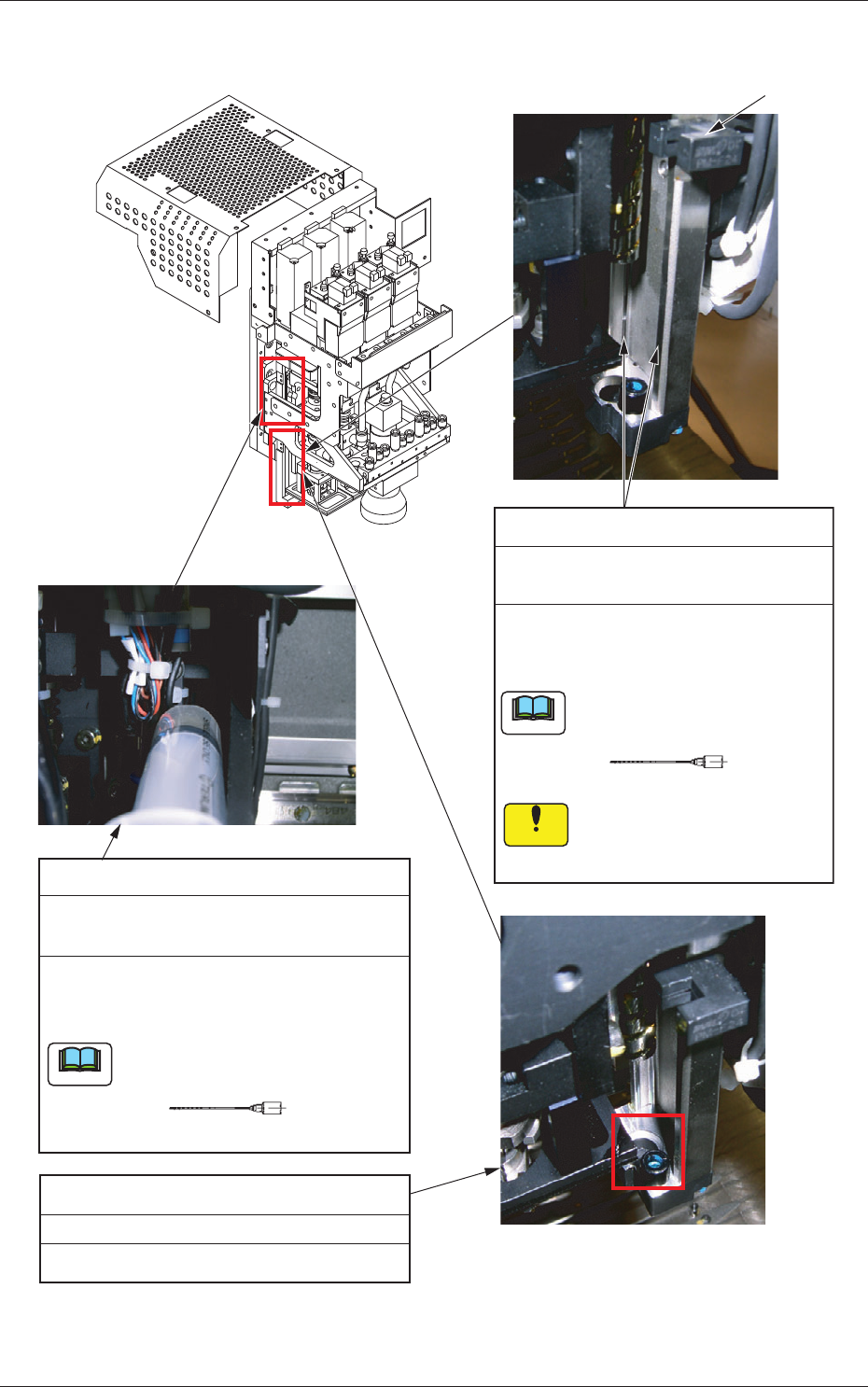

Linear Guides (3 places)
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Apply new grease using a syringe.
Lubrication should be applied every 3
months after the initial month.
The nozzle to be used is the nozzle
No. 19 (brown).
Take care so that any grease
is not attached on the sensor
when apply grease.
Saucer (3 places)
Every 3 Months Cleaning
No.19
Ball Screw
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Apply new grease using a syringe.
Lubrication should be applied every 3 months
after the initial month.
The nozzle to be used is the nozzle
No. 19 (brown).
No.19
Sensor
Notice
Note
Note
Wipe off old grease with an oiled rag.
Fig. 16 Placement Head
42
Tg1097-ID-OP
0708-002

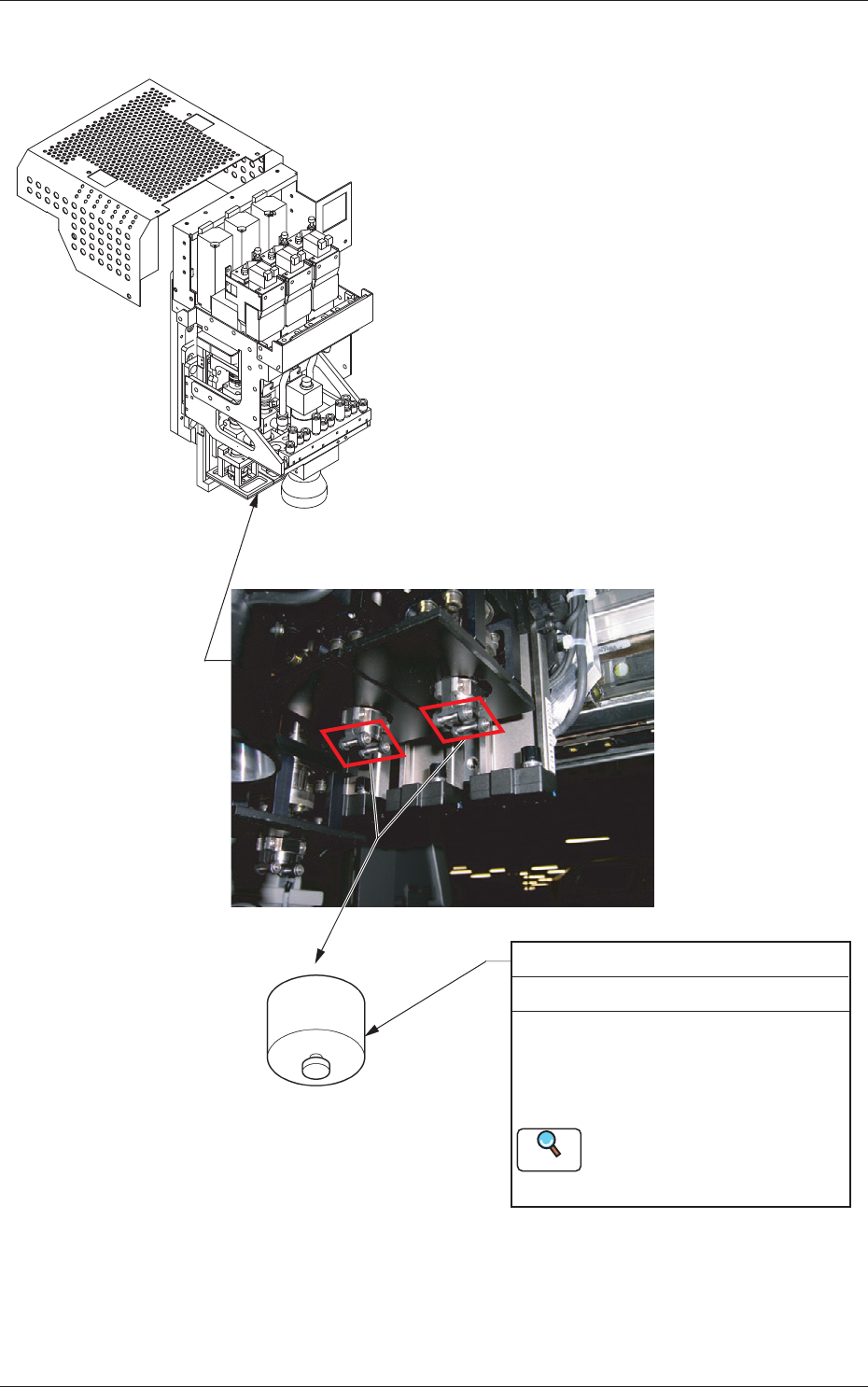

Vacuum Filter
Every Month Inspection
Remove the vacuum filter using the vacuum
filter replacing jig (attached) and check the
dirt. If the vacuum filter is extremely dirty,
replace it with new one.
Refer to "12. Replacement
Procedure of Vacuum Filter" for
details.
Reference
Fig. 17
11.3 Inspection, Cleaning, and Lubrication Spots
43
Tg1097-ID-OP
0708-002
12. Replacement Procedure of Vacuum Filter
12. Replacement Procedure of Vacuum Filter

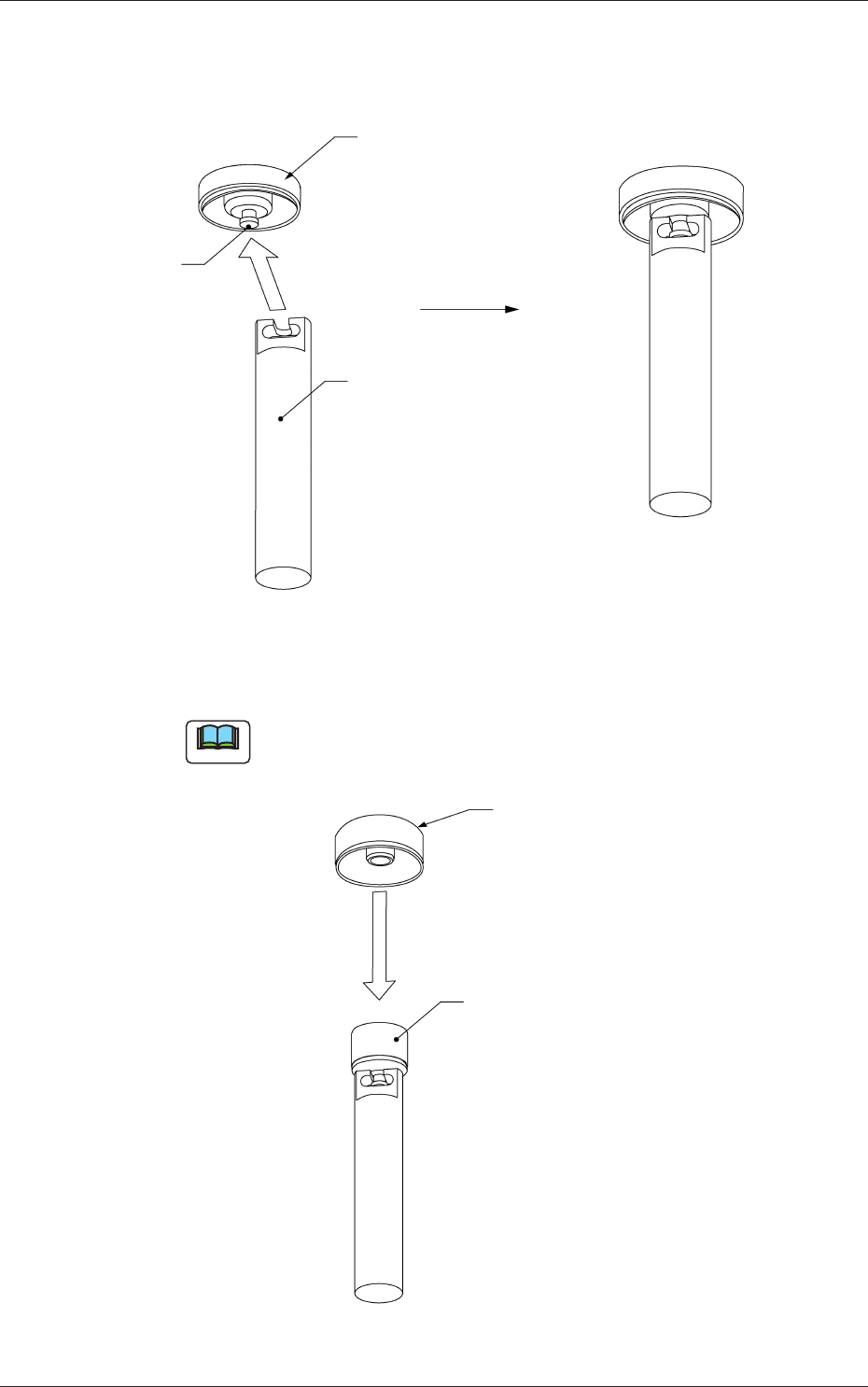

(1) Engage the vacuum filter replacement jig with the hook of the cap.
Placement Head
Vacuum Filter Replacement Jig
Cap
Fig. 18
Fig. 19
(2) Bring the vacuum filter replacement jig straight down and pull out the
cap from the placement head.
Note
The vacuum filter replacement jig should not come off from the cap.
Placement Head
Vacuum Filter
Fig. 20
