43 Tg1097-ID-OP 0708-002 12. Replacement Procedure of V acuum Filter 12. Replacement Procedure of V acuum Filter (1) Engage the vacuum filter replacement jig with the hook of the cap. Placement Head V acuum Filter Replace…
42
Tg1097-ID-OP
0708-002
Vacuum Filter
Every Month Inspection
Remove the vacuum filter using the vacuum
filter replacing jig (attached) and check the
dirt. If the vacuum filter is extremely dirty,
replace it with new one.
Refer to "12. Replacement
Procedure of Vacuum Filter" for
details.
Reference
Fig. 17
11.3 Inspection, Cleaning, and Lubrication Spots
43
Tg1097-ID-OP
0708-002
12. Replacement Procedure of Vacuum Filter
12. Replacement Procedure of Vacuum Filter
(1) Engage the vacuum filter replacement jig with the hook of the cap.
Placement Head
Vacuum Filter Replacement Jig
Cap
Fig. 18
Fig. 19
(2) Bring the vacuum filter replacement jig straight down and pull out the
cap from the placement head.
Note
The vacuum filter replacement jig should not come off from the cap.
Placement Head
Vacuum Filter
Fig. 20
44
Tg1097-ID-OP
0708-002

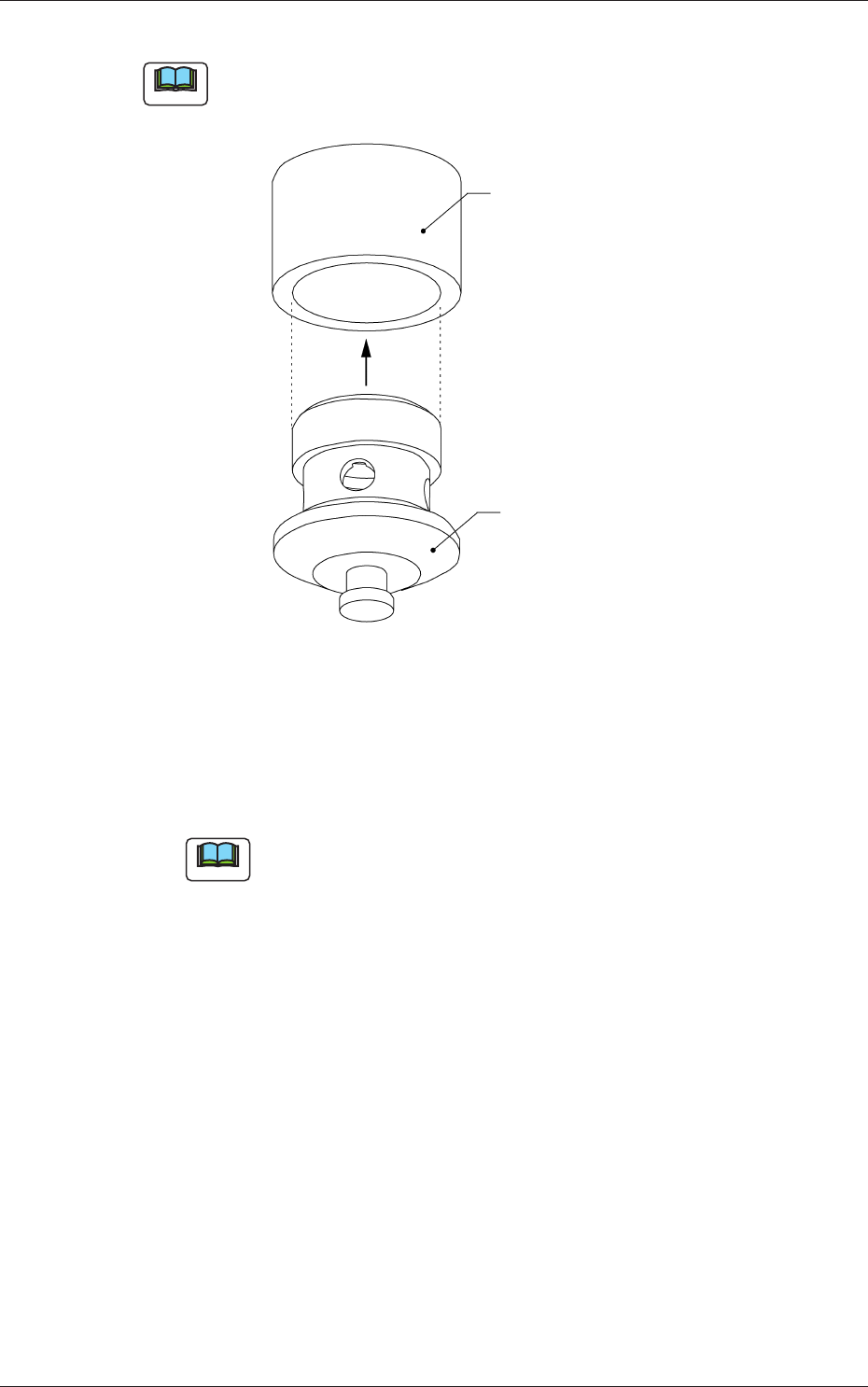

(3) Detach the vacuum filter from the cap.
Note
Do not throw away the cap.
Vacuum Filter
Cap
Fig. 21
(4) Attach a new vacuum filter to the cap.
(5) Engage the vacuum filter replacement jig with the hook of the cap and
push the cap straight into the placement head in the reverse order of cap
detachment.
Note
Push the cap into the placement head as far as possible.
(6) Follow the reverse procedure of the jig engagement (engagement
procedure for vacuum filter replacement jig) to slide it out horizontally
from the hook of the cap.
12. Replacement Procedure of Vacuum Filter
