xix
Safety instructions
n
Caution instruction
c



n
Applicable machines All YG and
All YS series machines
,
Close cover before operating FDD or USB memory drive
90K41-000540
n
Caution instruction
c


machine or cause faulty operation.
n
Applicable machines All machines
AC208V INPUT
Use correct voltage
91118-LC-00
xx
Safety instructions
3.3 Label positions
Thefollowingwarning/cautionlabelsareattachedtotheYAMAHAproductstoensuresafeandcorrectuse.
Checkthattheinformationoneachlabelisclearlylegibleandcomplywiththeinstructions.
n
NOTE
Basically, labels are attached to the positions shown below, although they may differ slightly depending on the
machine model.
n

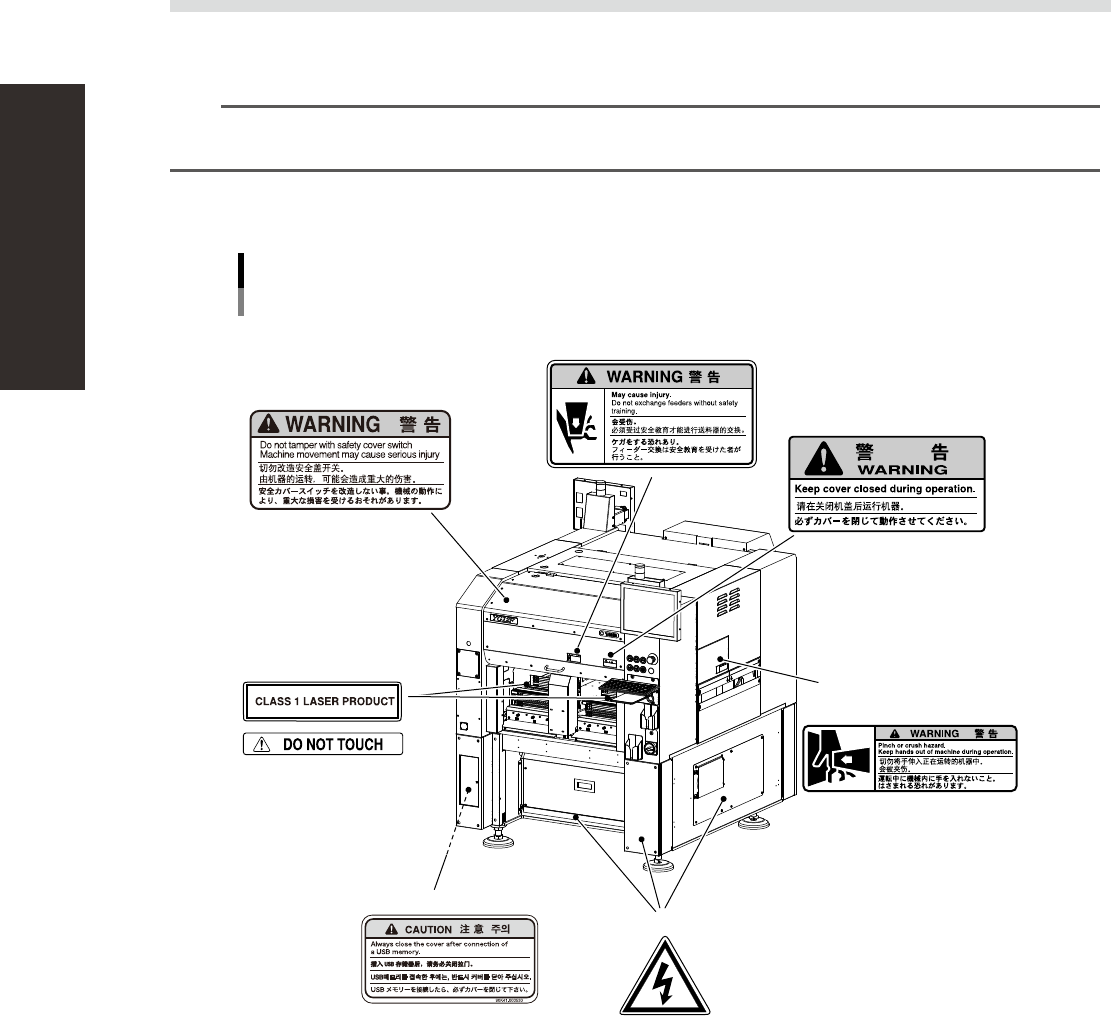

Label positions (YG12F)
Warning/caution labels
Front
■ Open/close cover inner side
■ Open/close cover
■ Open/close cover
■ Feeder setup section
■ Conveyor opening
(right and left sides)
■ Lower panels and panel inner side
■ Panel inner side
91201-M7-00
xxi
Safety instructions
n
Label positions (YG12F)
Warning/caution labels
Rear
■ Open/close cover
■ Open/close cover
■ Open/close cover
■ Open/close cover
■ Fixed 60-feeder plate
■ Open/close cover inner side
■ Conveyor opening
(right and left sides)
■ Conveyor opening
(right and left sides)
■ Lower panels and
panel inner side
■ Lower panels and panel inner side
■ Feeder setup section
91202-M7-00
