2-6 2 Daily maintenance items 3. Cleaning the camera transparent cover Dirt or dust par ticles sticking to the transparent cover of the multi-view camera can cause recognition errors. Periodic inspection and cleaning are…
2-5
2
Daily maintenance items

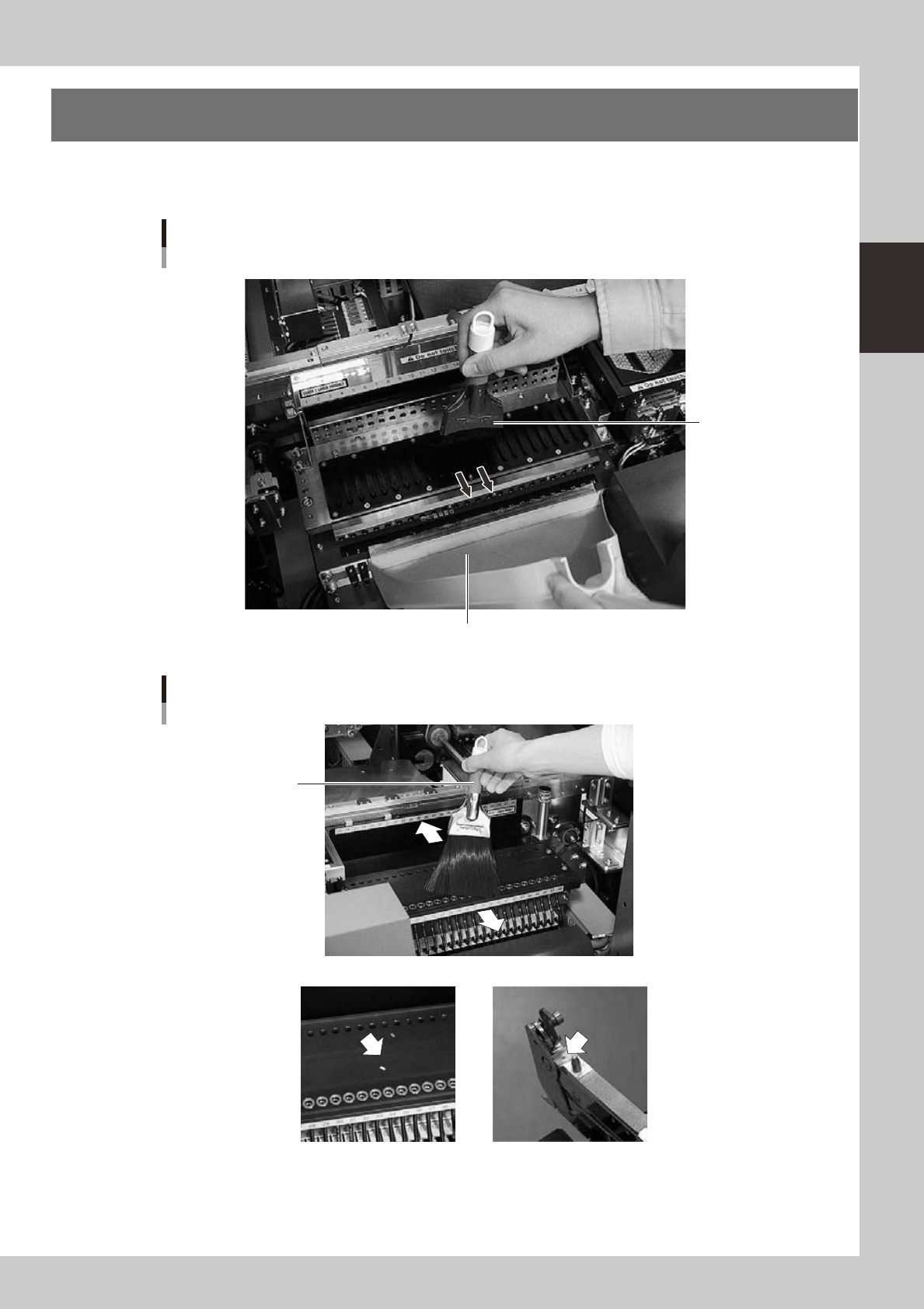

2. Cleaning the feeder plate
Clean the feeder plate by using the brush supplied with the machine. Chips or foreign matter falling on
the feeder plate might bite into the surface during feeder setting and cause the pickup position to deviate.
Periodic inspection and cleaning are recommended to prevent this problem.
Cleaning brush
Cleaning the feeder plate
In case of YS12F
Dustpan
53205-L7-10
Chip on the plate
Attached chip
Cleaning brush
Cleaning the feeder plate
In case of YG12F
53206-M7-00
2-6
2
Daily maintenance items
3. Cleaning the camera transparent cover
Dirt or dust particles sticking to the transparent cover of the multi-view camera can cause recognition errors.
Periodic inspection and cleaning are recommended to prevent this problem.
e
To ensure safety, make sure that the machine power switch is off or the emergency stop button is pressed
before starting work.
1
Remove dust on the transparent
cover with the lens blower brush.
53207-L6-00
TIP
A lens blower brush is available as an option.
2
Wipe the transparent cover with a
lint-free cloth.
Apply a few drops of lens cleaner to a
lint-free cleaning cloth or paper towel and
wipe the transparent cover.
53209-L6-00
n
NOTE
Use a lint-free cleaning cloth or paper wiper.
A lens cleaner is supplied with the machine. Do not use
other type of cleaner.
Blowing off dust with blower brush
Step 1
Lens blower brush
Wiping the transparent cover
Step 2
Lent-free cleaning cloth or paper wiper
Chapter 3 Periodic maintenance items
Contents
1. Weekly inspection 3-1
1.1 Checking and cleaning the nozzles 3-1
1.1.1 Checking and cleaning the spring-action parts 3-1
1.1.2 Checking the nozzle leaf springs 3-3
1.1.3 Cleaning the nozzle top end 3-3
1.2 Checking the conveyor sensor condition and operation 3-4
1.3 Checking the board clamp condition and operation 3-5
1.3.1 Checking the board clamp condition 3-5
1.3.2 Checking the board clamp operation 3-5
6
2.1 Cleaning the nozzle air path (monthly) 3-6
2.2 Inspecting each axis (monthly) 3-7
8
2.3.1 Cleaning and greasing the X, Y and W axis ball screws 3-8
2.3.2 Cleaning and greasing the X, Y and W axes linear guides 3-11
2.4
3-13
2.5
Inspecting and cleaning the board conveyor belt (bimonthly)
3-15
3. Three-month inspection 3-16
6
3.1.1 Checking the ejector vacuum pressure 3-17
3.1.2 Checking the blow valve operation (each head) 3-18
3.1.3 Checking the cleaning blow valve operation (for all heads) 3-18
3.2 Cleaning and lubricating the inside of the spline shaft 3-19
3.2.1 Cleaning the inside of the spline shaft 3-19
3.2.2 Checking the negative pressure 3-22
3.3
Checking the spline shaft movement and lubricating the slide section
3-23
3.4 Checking the SC-axis flex cable (YS12P) 3-24
5
3.6 Cleaning and greasing the hexagon spline 3-27
