3-31 3 Periodic maintenance items 4.4 Checking the nozzle station sensor condition (1 year) … option Whenthemachineisequippedwithanozzlestation(option),checkthenozzlestationsensorstoseeifthey areworki…
3-30
3
Periodic maintenance items
4.3 Cleaning and replacing the blow station filter (1 year) … option
Thissectiondescribeshowtocleanandreplacethefilterusedinthemachinesequippedwithablowstation
(option).
c
of the blow station by the user will void the warranty.
1
Turn off the air supply and the
power to the machine.
1. Quit the software and turn off the
machine power switch.
2. Turn the air supply/shutoff valve inside
the machine lower left panel to the right,
to stop the air supply.
53346-L6-00
2
Cut the cable ties on the filter.
Using a wire cutter or similar tool, cut the
cable ties that hold the filter unit inside the
blow station stand.
53347-L6-00
3
Disconnect the air hose from one
end of the filter unit and take out
the filter.
1. Disconnect the air hose from one end of
the in-line filter unit.
2. Remove the filter joint caps on both sides
of the filter by rotating them 90 degrees.
3. Pull the transparent case to remove it
and take out the filter.
53348-L6-00
4
Clean the filter.
Use an air blow gun to blow air through the
filter from the inside and from the outside. If
the filter is excessively dirty and cannot be
cleaned, replace it with a new filter.
• Inlinefilter(unit)
KGR-M9934-01X INLINE FILTER
• Filter
KGR-M9934-FOX FILTER, SPARE
Shutting off the air supply
Step 1
Air supply/shutoff valve
Cutting the cable tie
Step 2
Cable tie
Wire cutter In-line filter unit
Taking out the filter
Step 3
Air hose
Filter
Transparent filter case
In-line filter unit
Filter joint caps
3-31
3
Periodic maintenance items

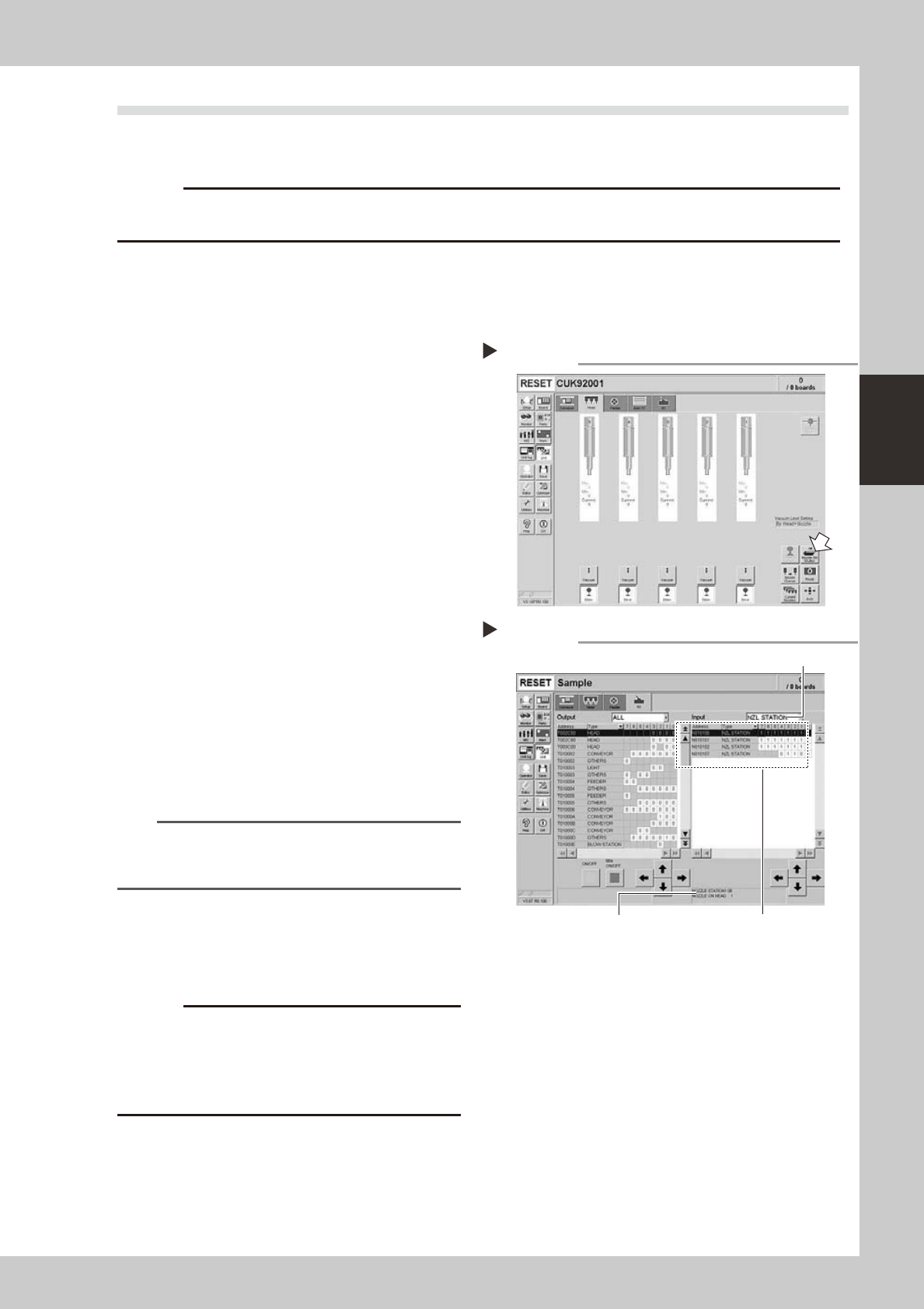

4.4 Checking the nozzle station sensor condition (1 year) … option
Whenthemachineisequippedwithanozzlestation(option),checkthenozzlestationsensorstoseeifthey
areworkingcorrectly.
c
operation may be interrupted due to a nozzle detection error.
e
1
Press the emergency stop button.
The machine should be in emergency stop
to ensure safety during work.
2
Open the nozzle station shutter.
1. Open the [Unit]-[Head] tab.
2. Press the [Nozzle Stn Shutter] button to
open the nozzle station shutter.
54303-L6-10
3
Check the detection status of the
nozzle station sensors.
Check to see if the nozzle station sensors
detect the presence or absence of nozzles.
1. Open the [Unit]-[I/O] tab.
2. From the "Input" drop-down list, select
"NZL STATION".
3. While extracting a nozzle from the nozzle
station and returning it to the same
position, check whether the
corresponding sensor detects the nozzle
correctly.
The detection status on the screen should
read "1" when the nozzle is extracted
from the nozzle station, and should read
"0" when the nozzle is in the nozzle
station.
54306-L6-10
TIP
The nozzle station position No. where a nozzle was
extracted or inserted is displayed on the lower part of
the "Input" status screen.
4
Close the nozzle station shutter.
On the [Unit]-[Head] tab, press the [Nozzle
Stn Shutter] button to close the nozzle station
shutter.
c
If the detection status of a nozzle station sensor is
cleaning of the nozzle station sensors by the user will
void the warranty.
Opening the shutter
Step 2
Checking the nozzle detection status
Step 3
Select "NZL STATION".
Nozzle station position No. is
displayed here.
Shows the presence or absence
of nozzles detected by sensors.
3-32
3
Periodic maintenance items
4.5 Inspecting and cleaning the controller filter (1 year)
Afanisinstalledonthelowerpartofthecontrollertocoolthecircuitboardsinsidethecontroller.Turningon
themainpowerstartsacontinualsupplyofair.Thefilterremovesdustfromtheairtakeninthroughthefan.
Accumulateddustmaycausefaultyoperation,socleanthefilterperiodically.
1
Turn off the air supply and the
power to the machine.
Quit the software and turn off the machine
power switch. Then turn the air supply/shutoff
valve inside the machine lower left panel to
the right.
53346-L2-00
2
Open the air release valve inside
the tape cutter.
Discharge any remaining air that is
accumulated inside the tape cutter.
c
tape cutter must be discharged to free the tape cutter
blade.
3
Remove the front tape cutter ducts.
Use a Phillips screwdriver to remove the
screws securing the left and right tape
cutter ducts, and remove the ducts.
(Remove a total of 6 screws.)
c
Removing the tape cutter ducts exposes the tape cutter
blade. Coming in contact with the blade may cause
4
Remove the front lower panel to
access to the controller.
Remove the front panel under the machine
front base, where the controller is installed.
5
Prepare the vacuum ASSY.
Connect the vacuum assembly (KHY-M88V0-
A0X) to the air connector of an upstream or
downstream machine.
53350-L2-00
6
Start the cleaning work.
1. Turn the air switch on the vacuum ASSY
to the ON position.
2. Pass the top end through the slit of the
filter cover. The cleaning portions are
located on the front, left, and right sides.
7
Close the air release valve inside
the tape cutter.
8
Turn on the machine power and
start the air supply.
Turn on the machine power switch and also
start the air supply by turning the air supply/
shutoff valve inside the machine lower left
panel to the left.
Turning off the air supply
Step 1
Air supply/shutoff valve
Cleaning work
Step 6
Vacuum ASSY
Filter cover
Air switch
