4-8 4 How to replace consumable parts 4.2 Y -axis linear guide and ball screw Y-axis lubrication points Grease nipple for Y -axis ball screw Grease nipples (2 places each on front and rear) for Y -axis linear guide Greas…
4-7
4
How to replace consumable parts
4. Lubrication points
This section describes lubrication points, intervals and procedures.
n
Grease
Usethefollowingspecifiedgrease.
Greasename :NSL
PartNo. :K48-M3856-00X
4.1 X-axis linear guide and ball screw
X-axis lubrication points
Linear guide and ball screw
X-axis linear guide
Grease nipples (small) 2 places
X-axis linear guide
Grease nipples (large) 2 places
X-axis ball screw
Grease nipples (large) 1 place
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Linear guide 4
Once every
2 months
Grease gun: Bend type nozzle
Ball screw 1 Grease gun: Standard nozzle
53435-M7-00
4-8
4
How to replace consumable parts
4.2 Y-axis linear guide and ball screw
Y-axis lubrication points
Grease nipple for Y-axis
ball screw
Grease nipples (2 places
each on front and rear)
for Y-axis linear guide
Grease nipple for Y-axis
ball screw
Grease nipples for
Y-axis linear guide
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Linear guide 4
Once every
2 months
Grease gun: Standard nozzle
Ball screw 2
53436-M7-00
4.3 PU-axis linear guide and ball screw
PU-axis lubrication points
Grease gun:
Manual lubrication:
Ball screw Ball screwBall guide Ball guide
Lubrication section Lubrication point Interval Procedure
Ball guide 2
Once every
2 months
Manual lubrication
Ball screw 2
53437-M7-00
4-9
4
How to replace consumable parts

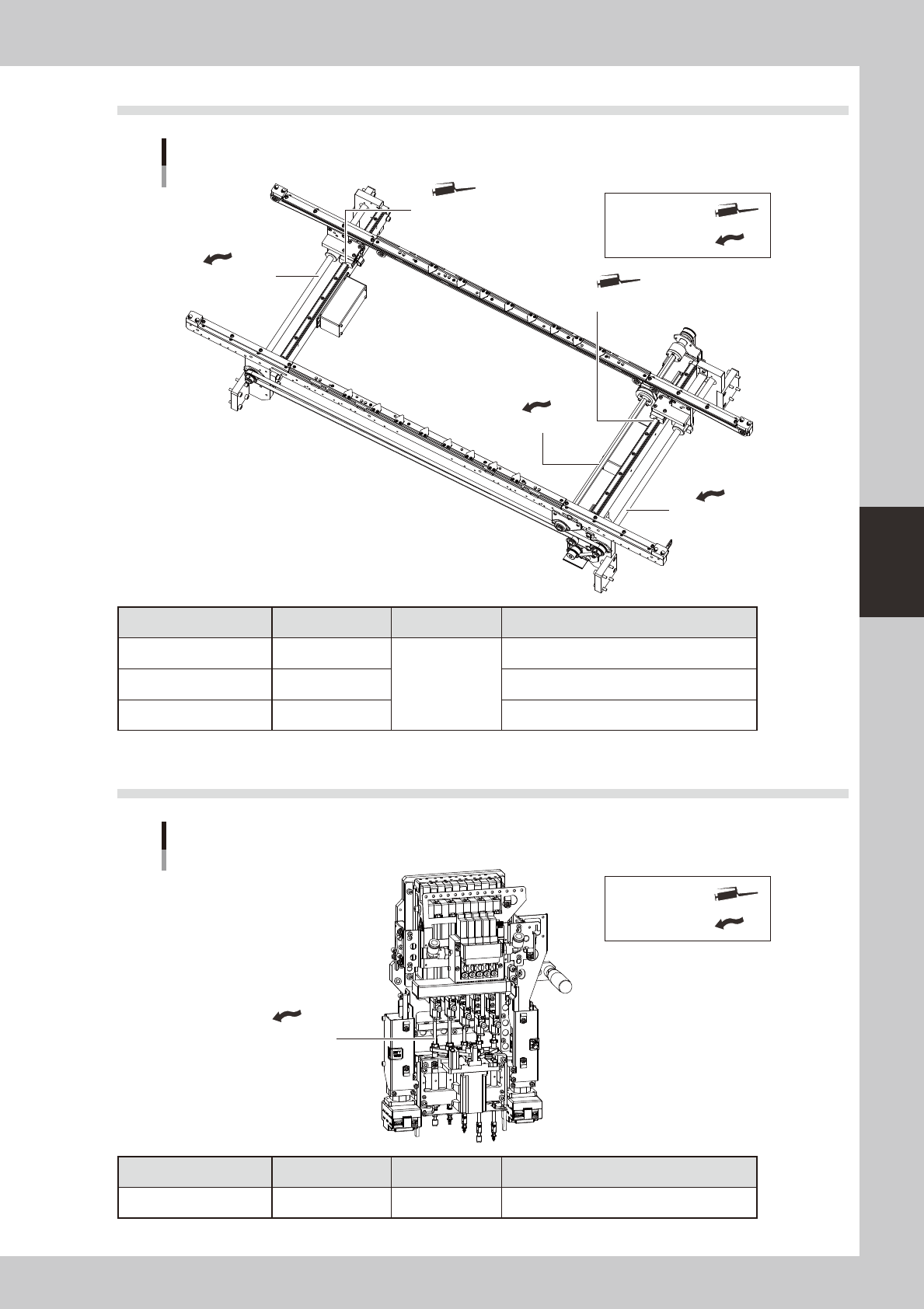

4.4 Conveyor W-axis linear guide and ball screw
W-axis lubrication points
W-axis ball screw
W-axis ball screw
W-axis linear guide
W-axis linear guide
W-axis hexagon spline
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Linear guide 2
Once every
6 months
Grease gun: Standard nozzle
Ball screw 2 Grease gun: Standard nozzle
Hexagon spline 1 Manual lubrication
53438-M7-00
4.5 Head spline shaft
Z-axis lubrication points
Grease gun:
Manual lubrication:
Z-axis spline shaft
Lubrication section Lubrication point Interval Procedure
Z-axis spline shaft 5 3 months Manual lubrication (thin coat)
53439-M7-00
