3.3 Label positions

Thefollowingwarning/cautionlabelsareattachedtotheYAMAHAproductstoensuresafeandcorrectuse.

Checkthattheinformationoneachlabelisclearlylegibleandcomplywiththeinstructions.

NOTE

Basically, labels are attached to the positions shown below, although they may differ slightly depending on the

machine model.

Label positions (YG12F)

Warning/caution labels

Front

■ Open/close cover inner side

■ Open/close cover

■ Feeder setup section

■ Conveyor opening

(right and left sides)

■ Lower panels and panel inner side

■ Panel inner side

91201-M7-00

xxi

Safety instructions

Label positions (YG12F)

Warning/caution labels

Rear

■ Open/close cover

■ Fixed 60-feeder plate

■ Open/close cover inner side

■ Conveyor opening

(right and left sides)

■ Conveyor opening

(right and left sides)

■ Lower panels and

panel inner side

■ Lower panels and panel inner side

■ Feeder setup section

91202-M7-00

xxii

Safety instructions

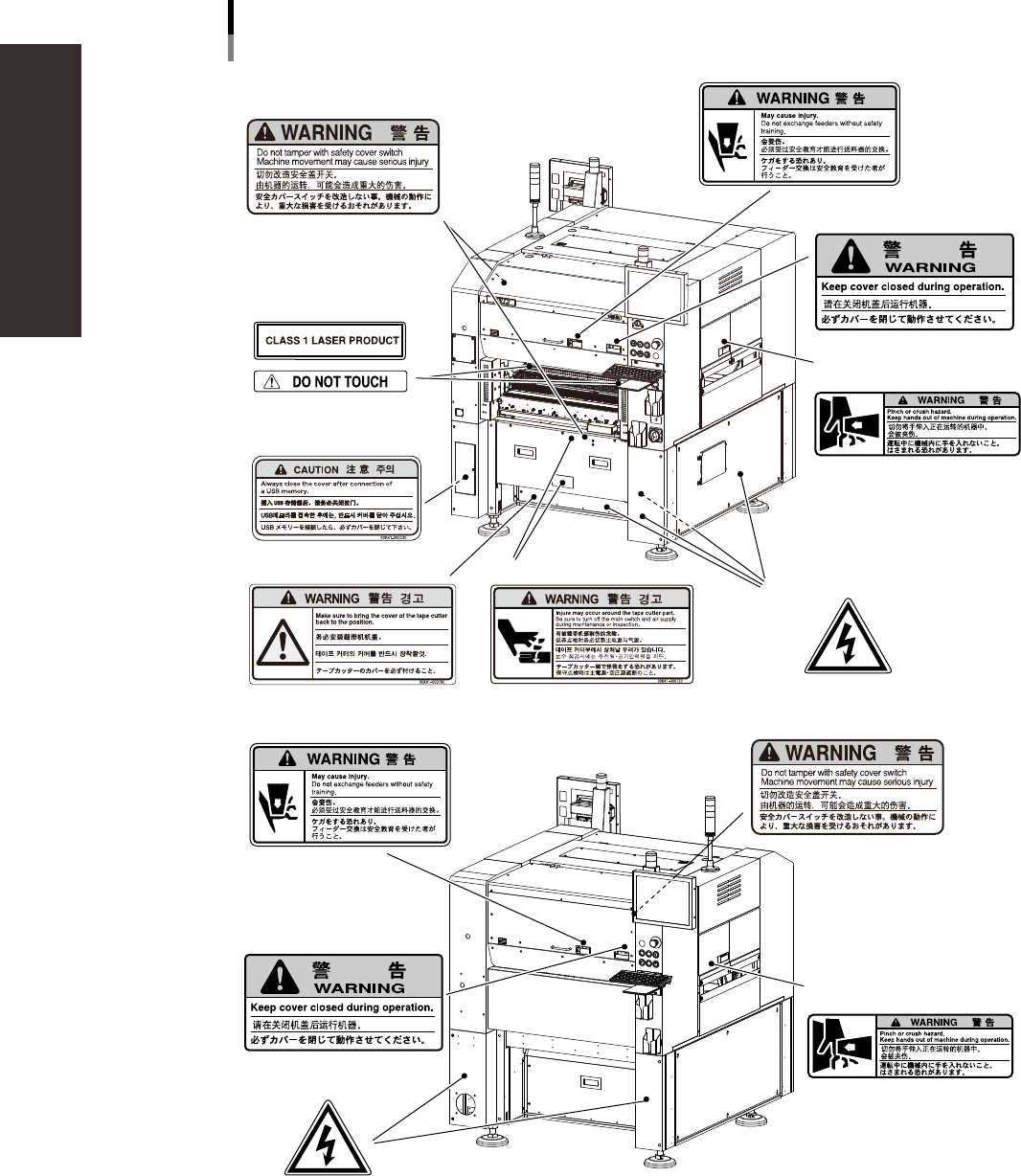

Label positions (YS12P)

Warning/caution labels

YS12P

<Front>

<Rear>

■ Open/close cover inner side

(machine with rear cover)

■ Feeder setup section

■ Conveyor opening

(right and left sides)

■ Cutter section

■ Cutter duct section

■ Open/close cover

■ Lower panels and

panel inner side

■ Lower panels and

panel inner side

■ Panel inner side

■ Open/close cover

(machine with rear cover)

■ Open/close cover

(machine with rear cover)

■ Conveyor opening

(right and left sides)

91201-L6-00
