xxv Safety instructions n Label positions (A TS15) W arning/caution labels A TS15 (YS12F , YG12F) ■ Open/close cover inner side ■ Door opening section 91201-R7-00
xxiv
Safety instructions
n

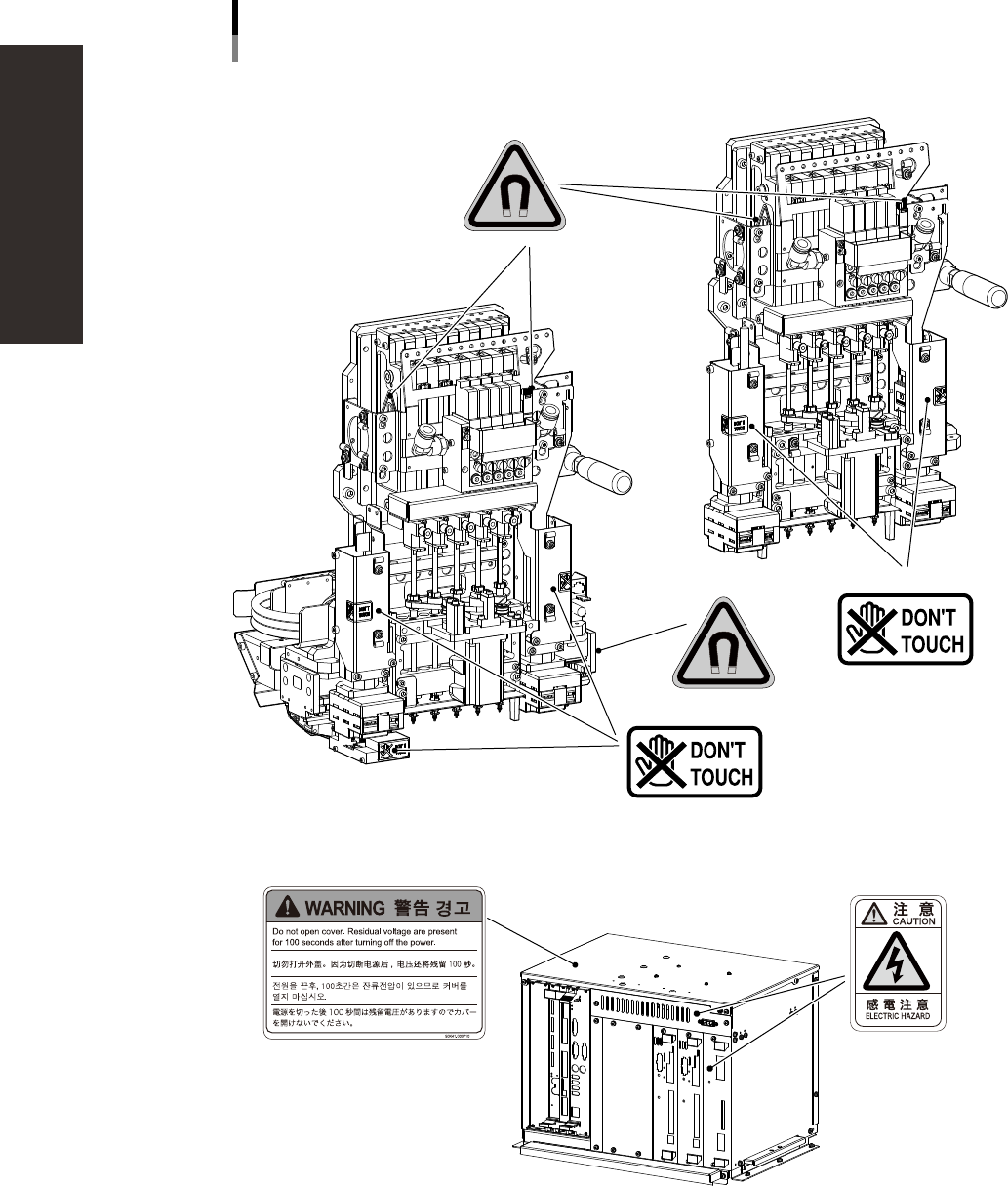

Label positions (Head assembly and Controller)
YS12P
YS12F / YG12F
90K41-000720
90K41-000720
Warning/caution labels
■ Head assembly
■ Controller
■ Top of controller
■ SC-axis linear scale section
■ Z-axis linear scale section
■ Camera unit
■ Camera unit
■ Controller front panel
91204-M7-00
xxv
Safety instructions
n
Label positions (ATS15)
Warning/caution labels
ATS15 (YS12F, YG12F)
■ Open/close cover inner side
■ Door opening section
91201-R7-00
General Contents
Introduction
1. About this manual 1
2
Chapter 1 Maintenance
1
1.1 Essential conditions and working environment 1-1
1.2 Importance of periodic inspections and cleaning 1-1
2. Preparing for maintenance tasks 1-2
2.1 Consumable parts and replaceable parts (for repairs) 1-2
2.1.1 Consumable parts 1-2
2.1.2 Replaceable parts (for repairs) 1-4
5
2.2.1 Cleaning tools 1-5
2.2.2 Lubricating tools and grease 1-7
2.3 Required tools 1-9
Chapter 2 Daily maintenance items
1
1. Checking the nozzle 2-2
1.1 Check with software 2-2
1.2 Checking the nozzles visually 2-4
2. Cleaning the feeder plate 2-5
3. Cleaning the camera transparent cover 2-6
Chapter 3 Periodic maintenance items
1. Weekly inspection 3-1
1.1 Checking and cleaning the nozzles 3-1
1.1.1 Checking and cleaning the spring-action parts 3-1
1.1.2 Checking the nozzle leaf springs 3-3
1.1.3 Cleaning the nozzle top end 3-3
1.2 Checking the conveyor sensor condition and operation 3-4
1.3 Checking the board clamp condition and operation 3-5
1.3.1 Checking the board clamp condition 3-5
1.3.2 Checking the board clamp operation 3-5
6
2.1 Cleaning the nozzle air path (monthly) 3-6
