2.1.2 Replaceable parts (for repairs)
Theterm"Replaceableparts"inthismanualindicatespartsthatmightcauseamachinestoppageastheseparts
losetheirfunctionsbutdonotrequiremachineadjustmentafterreplacementwork.Methodsforreplacingthe
followingpartsaredescribedinthismanual.

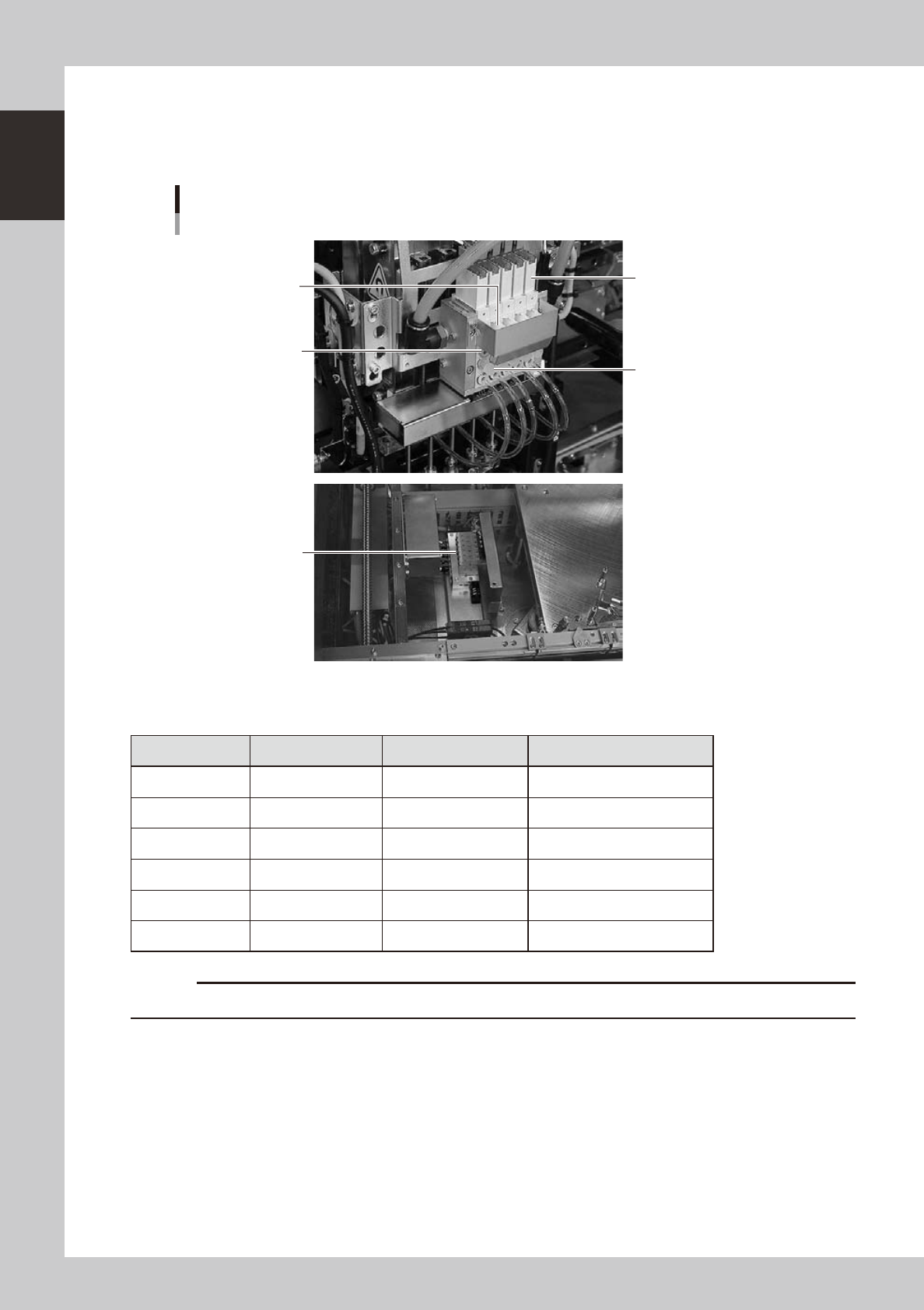

Replaceable parts
Replace if broken
Solenoid valve
Exhaust port
Plug for bit replacement
Plug for filter replacement
Valve for conveyor unit
53102-L6-00
n
Replaceable parts list
Replaceifbroken
Product Name Parts List Designation Parts No. Note
Bit for ejector BIT KHY-M7154-00X Bit for ejector replacement
Ejector and blow valve VALVE KHY-M7153-00X For ejector and blow operation
Cleaning blow valve VALVE KGS-M37P1-00X For cleaning blow operation
Conveyor valve VALVE (SPARE) KHW-M8582-40X For conveyor unit
Feeder valve VALVE KIT KGA-M37P0-00X For feeder drive (YG12F)
Feeder joint JOINT ASSY KJV-M3407-A0X Feeder air supply joint (YG12F)
c


1-5
1
Maintenance
2.2 Maintenance tools
2.2.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Nozzle tip cleaning tape
53103-L6-00
n
Cleaning tools
Partssuppliedwithmachine
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X
c


1-6
1
Maintenance
Cleaning tools
Optional parts
Nozzle cleaning wire handle
Air blow gun
Cotton swab sticks
Lens blower brush
Lens cleaner
Spline shaft cleaning kit
Vacuum ASSY
CLEANER, VISION SET
53104-L2-00
n
Cleaning tools
Optionalparts
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X Special Tool
Air blow gun AIR GUN ASSY KU4-M8590-00X
Cotton swab sticks SWAB KGA-M3802-00X
CLEANER, VISION
SET
(KHW-M3801-A0X)
Lens blower brush BLOWER KGA-M3803-00X
Lens cleaner CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X For cleaning (vacuum)
