3-14 3 Periodic maintenance items 5 Apply the new grease b y hand. Ball screw Apply as much as 2 cm of new grease to you r f inger , and r ub it e venly i nto the ball screw gr ooves. Ball guide Apply as much as 2 cm of …
3-13
3
Periodic maintenance items
2.4
Inspecting, cleaning and greasing the PU (push-up) shaft (bimonthly)
Thepush-upshaftisdesignedtopreventflexingorwarpingoftheboardduringclampingandisimportant
becauseitpreventsdepressingoftheboardduringcomponentmounting.
Thepush-upshaftalsopreventsdeviationsinthecomponentmountingaccuracyduetotheboarddepressing
duringcomponentmounting,soitisimportanttoregularlycleanandinspectthepush-upshafttoensureit
operatescorrectly.
c
of the push-up shaft by the user will void the warranty.
1

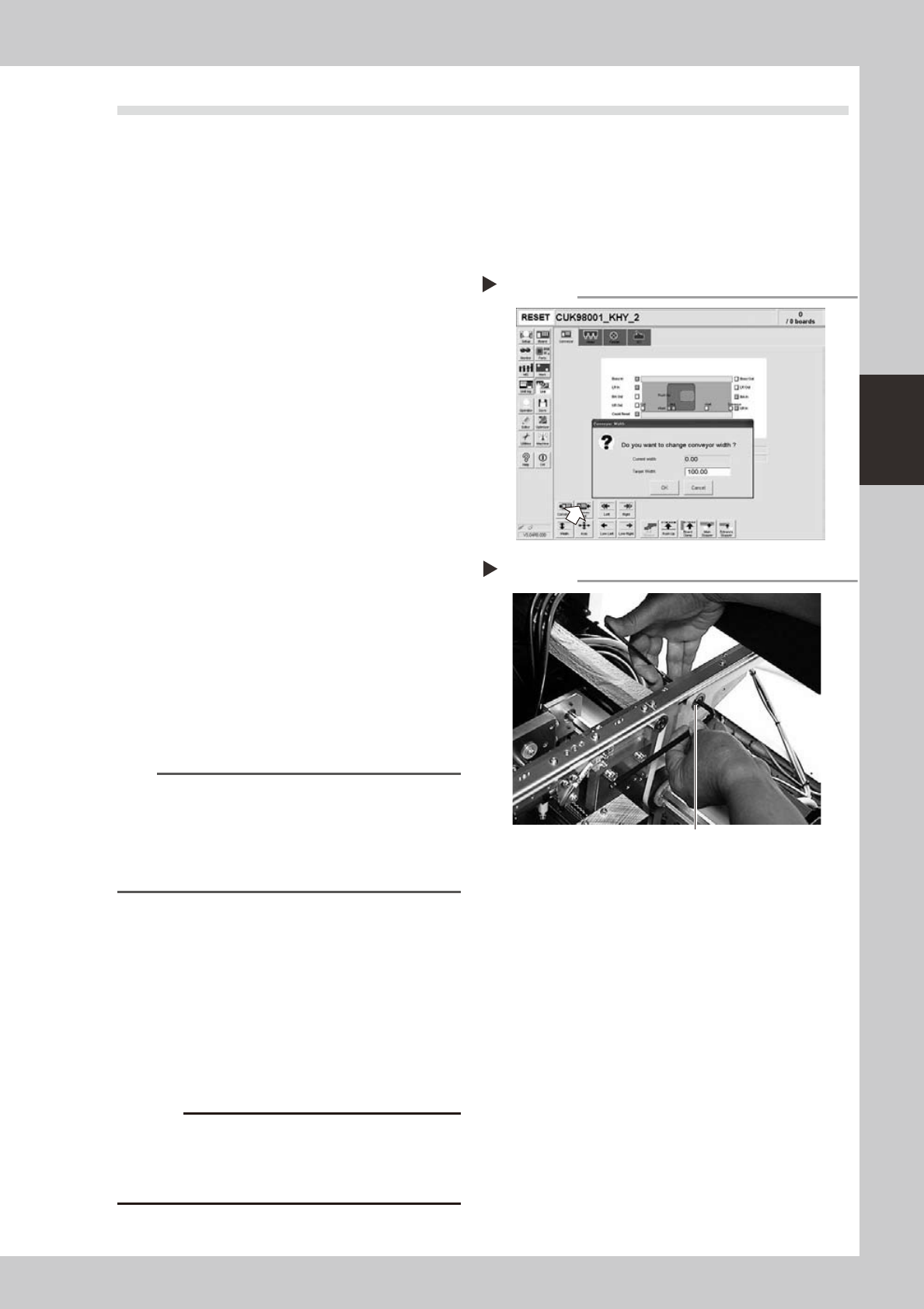

Set the conveyor width to
maximum.
Press the [Width] button to display the
"Conveyor Width" dialog. Enter the maximum
conveyor width from the specifications and
press [OK]. The conveyor is changed to the
width that was just entered.
54310-L6-00
e
2
Remove the push-up plate.
Press the emergency stop button and then
remove the push-up plate using a hex
wrench.
c
The push-up plate is heavy so use plenty of caution
during handling.
3
Raise the push-up unit.
Cancel emergency stop and raise the
push-up unit manually.
e
4
Remove the old grease by hand.
After pressing the emergency stop button,
thoroughly remove the old grease from the
two ball screws and the two ball guides by
hand.
Setting the conveyor width
Step 1
3-14
3
Periodic maintenance items
5
Apply the new grease by hand.
Ball screw
Apply as much as 2 cm of new grease to
your finger, and rub it evenly into the ball
screw grooves.
Ball guide
Apply as much as 2 cm of new grease to
your finger, and coat it evenly on the ball
guides.
53331-L6-00
6
Raise and lower the push-up unit
manually.
After cancel emergency stop, raise and
lower the push-up unit several times
manually to spread the grease evenly. After
the grease is well spread, raise the push-up
unit and leave it in that state.
e
7
Wipe away excess grease by hand.
After pressing the emergency stop button,
wipe away excess grease by hand.
Again raise and lower the push-up unit
several times manually and if there is no
problem then lower the push-up unit.
8
Reinstall the pushup plate to its
original position.
Reinstall in the reverse procedure of step 2.
c
The push-up plate is heavy so use plenty of caution
during handling.
Applying the grease
Step 5
Ball guides (2 places)
Ball screws (2 places)
3-15
3
Periodic maintenance items
2.5 Inspecting and cleaning the board conveyor belt (bimonthly)
Asthebeltwearsaway,slippagesmayoccurthatpreventsecurelyconveyingtheboards.Itistherefore
necessarytomakeperiodicchecksforwearoftheconveyorbelt.
Beltwearmayalsocausetroublesuchaserroneousdetectionoftheconveyorsensorduetodustfrombelt
wearaccumulatingonthesensorsurface,ordustfrombeltwearaccumulatinginthebeltguidegroovesmay
causethebelttostick,etc.
1
Change the conveyor width to a
convenient width for maintenance
work.
1. Press the [Width] button to display the
"Conveyor Width" dialog.
2. In the "Target Width" box, enter a width
large enough for maintenance work
(about 200mm) and press [OK].
The conveyor is changed to the width
that was just entered.
54304-L6-00
e
2
Loosen the tension on the conveyor
belt.
Press the emergency stop button and then
use a 4mm and 5mm hex wrenches to
loosen the belt tension.
53332-L6-00
3
Remove the conveyor belt.
Remove the conveyor belt from the pulley
and the belt groove of the board guide.
4
Check for wear on the board
conveying side of the conveyor belt.
After removing the belt in step 3, check for
wear on the board conveying side of that
conveyor belt.
TIP
About half (3 to 4 mm) the belt width is used for board
conveying. If the board conveying side of the conveyor
belt is worn, then you can still reuse the belt by switching
the used side with the opposite side. However, this will
cause errors after long-term use, so early belt
replacement is recommended.
5
Clean the pulley and the belt
groove on the board guide.
Using a vacuum cleaner or similar device,
suction up the belt wear dust deposited in
the belt groove or on the sensor surface. Also
use a vacuum cleaner while brushing debris
away with the brush supplied with the
machine.
Also clean the pulley and other parts for the
conveyor belt.
c
sometimes adhere to and darken the outer
Changing the conveyor width
Step 1
Step 2
Tensioner bolt
Loosening the tension on the belt
