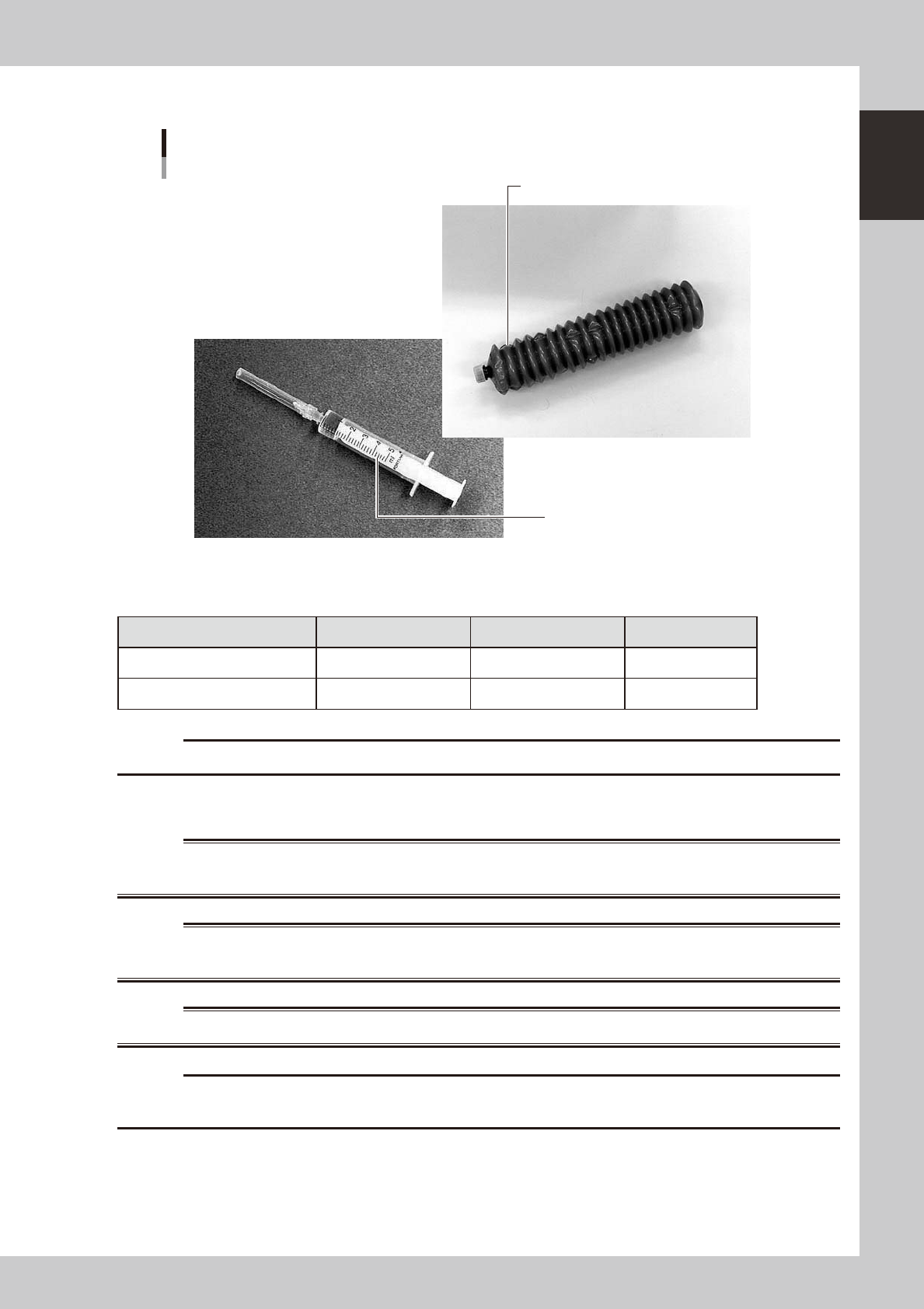

1-7
1
Maintenance
2.2.2 Lubricating tools and grease
Lubricating and greasing tools
Parts supplied with machine
Lithium-based grease NSL
Oil syringe for nozzle holder
53105-L6-00
n
Lubricating and greasing tools
Partssuppliedwithmachine
Product Name Parts List Designation Parts No. Note
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g
Oil syringe for nozzle holder SYRINGE, OIL KV8-M8870-00X Turbine oil VG32
c


n
Precautions when handling grease
w
WARNING


w
WARNING


w
WARNING

c




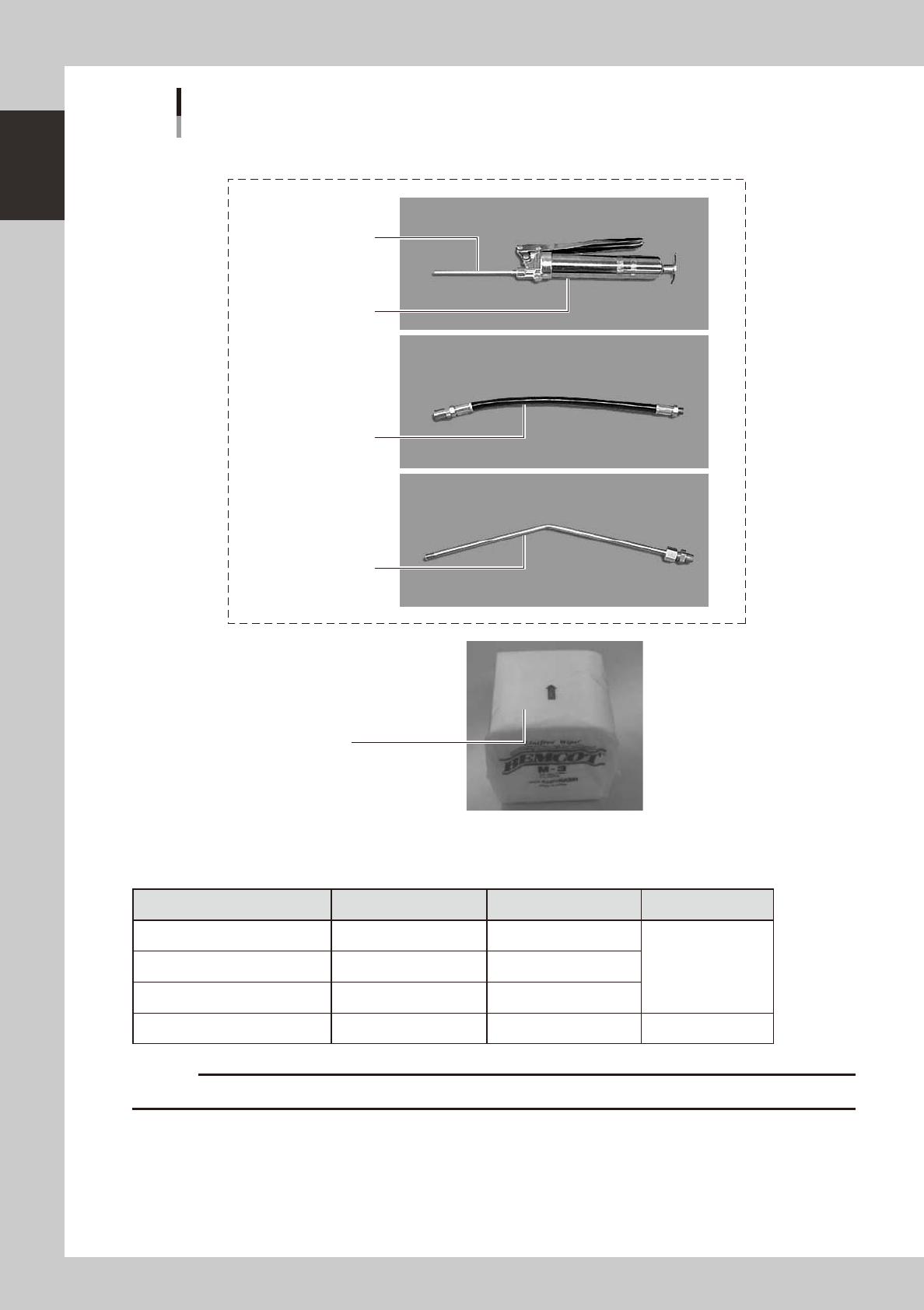

1-8
1
Maintenance
Standard nozzle
Cleaning wiper
Grease gun set
Lubricating and greasing tools
Optional parts
Grease gun
Grease gun nozzle
(flexible type)
Grease gun nozzle
(bent type)
53107-L6-00
n
Lubricating and greasing tools
Optionalparts
Product Name Parts List Designation Parts No. Note
Grease gun (with standard nozzle) GREASE GUN K48-M3852-00X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (exible type) GREASE NOZZLE K48-M3857-00X
Nozzle (bent type) GREASE NOZZLE K48-M3854-00X
Cleaning wiper WIPER KGS-M3840-00X
c


1-9
1
Maintenance
2.3 Required tools
Prepare the following tools and items necessary for maintenance.
n
Tool list
: Supplied with machine, : Options
Name Description Remarks
Phillips screwdriver Large, small D-2
Slotted (flat-blade) screwdriver Large, small
Phillips precision screwdriver
#0, #1 (Used to replace nozzle leaf springs and air
valves.)
Hex wrench set 1 set HEX, WRENCH SET
Tweezers Used to replace ejector filters.
Grease gun Used to supply grease
Air blow gun Used for cleaning
Ultrasonic cleaner Used to clean nozzles.
Precision wrench set Used for maintenance of spline shafts.
Oil syringe for nozzle holder Used to supply turbine oil (VG32).
Nozzle cleaning wire Used to clean nozzle holes and spline holes.
Vacuum assembly Used to clean the surface of the feeder plate.
n
Other tool list
: Supplied with machine, : Options
Name Description
Grease (lithium-based grease: NSL) Used to lubricate X, Y and W axes.
Turbine oil (VG32) Used to lubricate nozzles.
Cleaning paper Use lint-free cleaning paper or cloth that does not leave dust or residue.
Cleaning alcohol Use IPA (isopropyl alcohol) or ethanol.
Paper cup or tray Used for cleaning spline shaft.
Marker pen Used for marking when replacing conveyor belt.
Cotton swab stick Used to clean camera lens, half mirror and lighting unit.
Lens cleaner Used to clean camera lens and lighting unit.
Lens blower brush Used to clean camera lens and lighting unit.
Cleaning kit Used for cleaning spline shaft.
n
Safety goggles and mask
Name Description
Dust-proof goggles
Always wear these goggles and mask when using an air blow gun or IPA.
Dust-proof mask
