Programmers Manual
| 7
1.1.5. Tool Bar
Work Area
Specify a work area.
Paint Area
Specify a paint area.
Flash
*Select flash(es).
Trace
*Select trace(s).
Pad
*Select pad(s).
2)
Unselect
Cancel a previous selection.
※ Note: You can select more than one item by dragging your mouse.
Zoom In
Zoom in the main view.
Zoom Out
Zoom out the main view.
3)
Zoom to Fit
Set the zoom ratio of the main
view to 100%.
※ Note: After selecting "Zoom In", specify a zoom area by dragging your mouse.
Inside Pad
Indicate whether flashes and
traces will be displayed inside a
pad.
Rotate
90: Rotate the main view
clockwise by 90°.
Rotate
-90: Rotate the main view counter-
clockwise by 90°.
Mirror
X: Move the main view
symmetrically along the X-axis.
Mirror
Y: Move the main view
symmetrically along the Y-axis.
4)
Array Board
Enter or edit array board data.
New
Load a Gerber file to create a new work file.
Open
Open a work file(*.gpd ).
Save
Save a work file(*.gpd ).
1)
Export
Create a pad file(*.pad ).
8 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
Add Fiducial
Enter fiducial data( currently not used)
Edit Fiducial
Edit fiducial data( currently not used).
Add Check Point
Add a check point.
Edit Check Point
Edit a check point.
5)
Edge-Trace
Retrieve only the contour lines of
the selected flash(es) and trace(s)
to create a trace.
1.1.6. Status Bar
The X-coordinate of the mouse
pointer.
The Y-coordinate of the mouse
pointer.
The coordinate unit.
Available Units: mm and inches
1)
Show the current operation
mode.
Programmers Manual
| 9

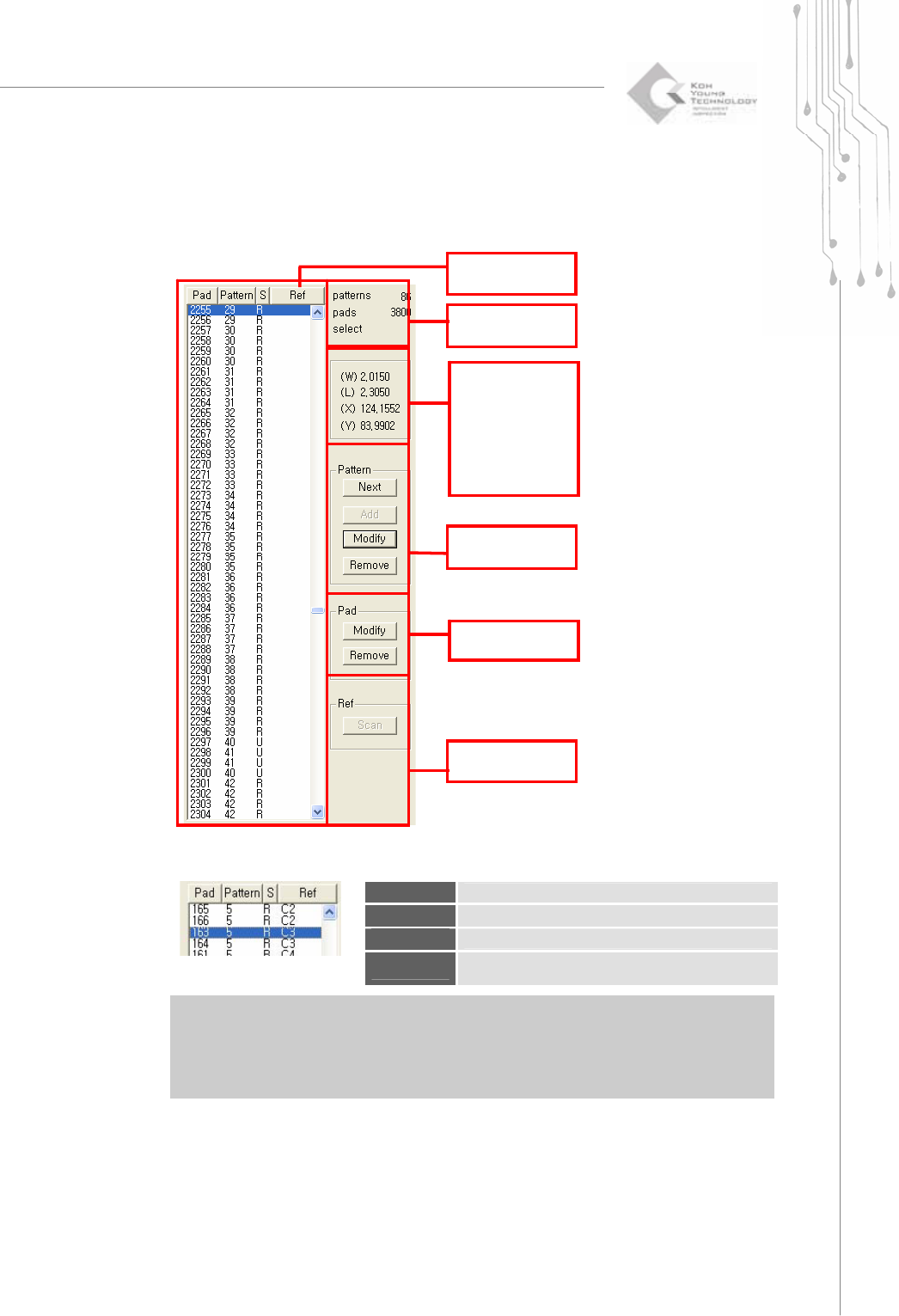

1.1.7. Pad Bar
1) Full Display of the Pad Bar.
2) Pad List
Pad
Sort the list in ascending order of pad numbers.
Pattern
Sort the list in ascending order of pattern numbers.
S
Sort the list in ascending order of shape numbers.
Ref
Sort the list in ascending order of reference codes.
※ Note: The available shape types are as follows:
y R – Rectangle,
y C-Circle,
y D-Rounded Rectangle,
Pad List
Quantity Data
The Data for the
Selected
Pattern and
Pad
Pattern
Pad
Ref
