Program mers Manual | 1 9 The "Expo rt" windo w will appe ar as follows : Click the OK butt on. ※ Note : If you change the t ext editor to CEditor in setting menu, CEdit or will be run automaticall y .
18 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems

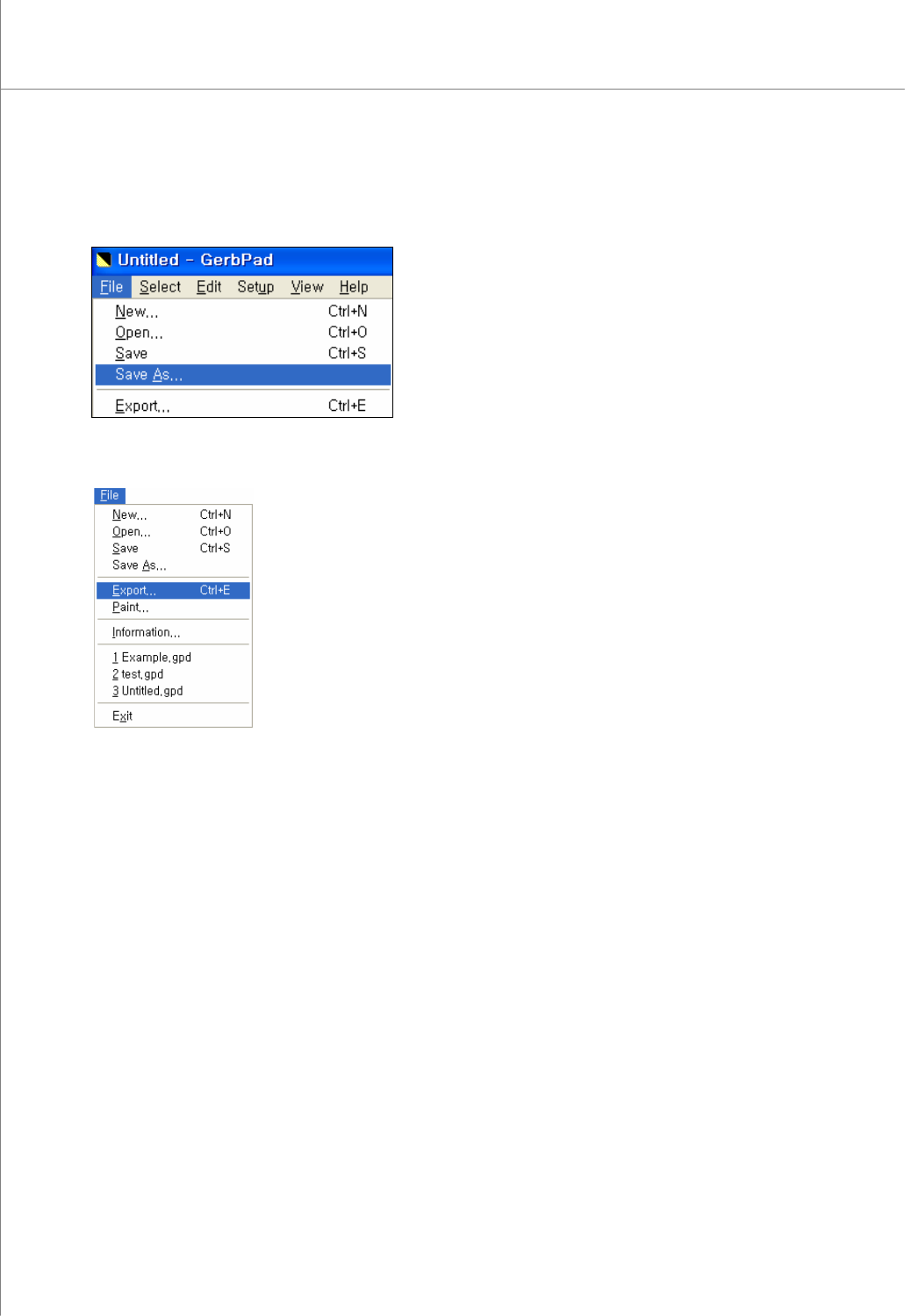

13) Select “File ▶ Save As" in order to save it as “*.gpd”.
14) Select "File ▶ Export" from the menu bar.
Programmers Manual
| 19

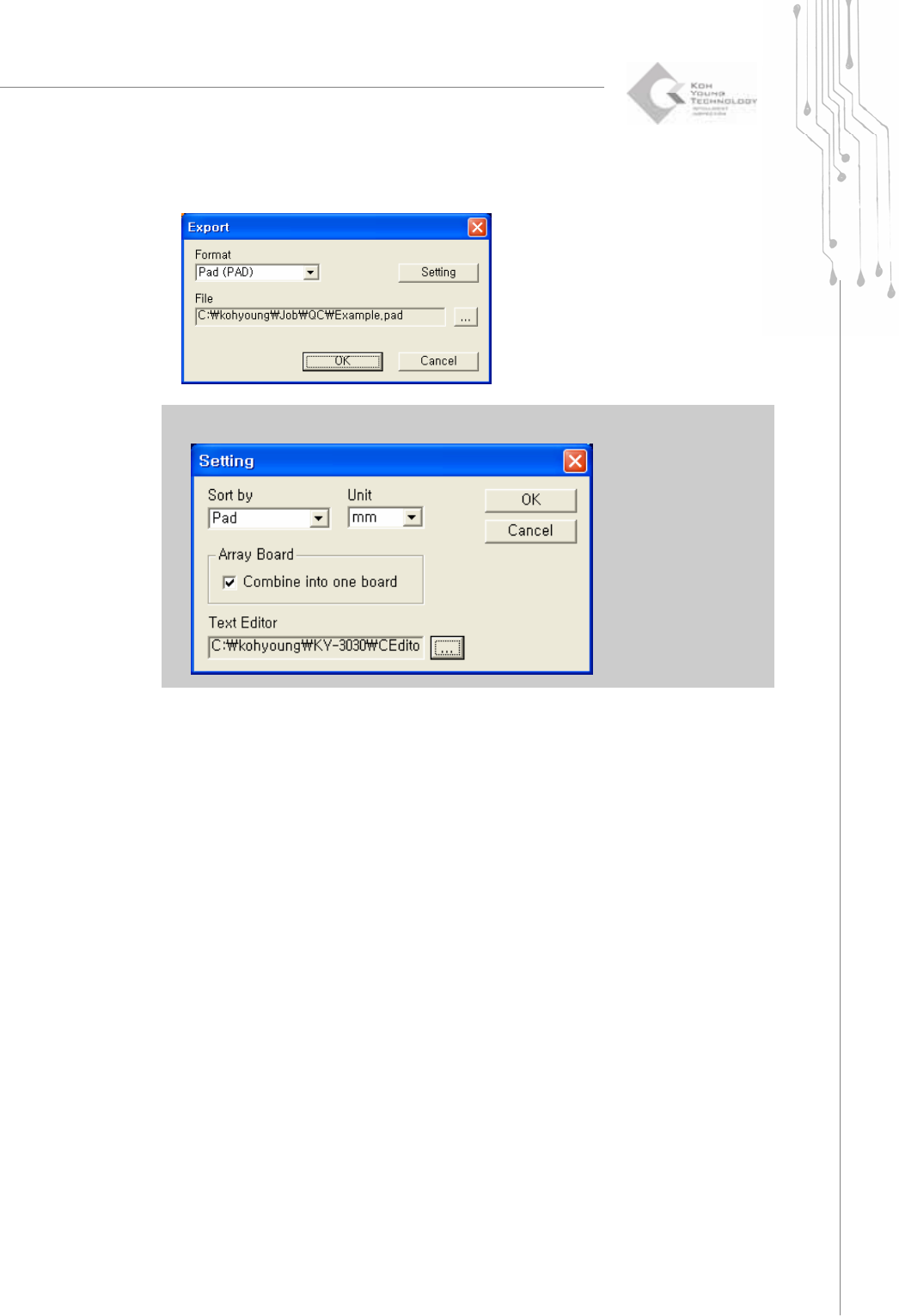

The "Export" window will appear as follows: Click the OK button.
※ Note : If you change the text editor to CEditor in setting menu, CEditor will be run automatically.
20 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
1.3. Menu Options
1.3.1. File
1) New (Ctrl + N)
Load a Gerber file to create a new work file.
All work data not saved will be lost.
Shortcut Key: Ctrl + N

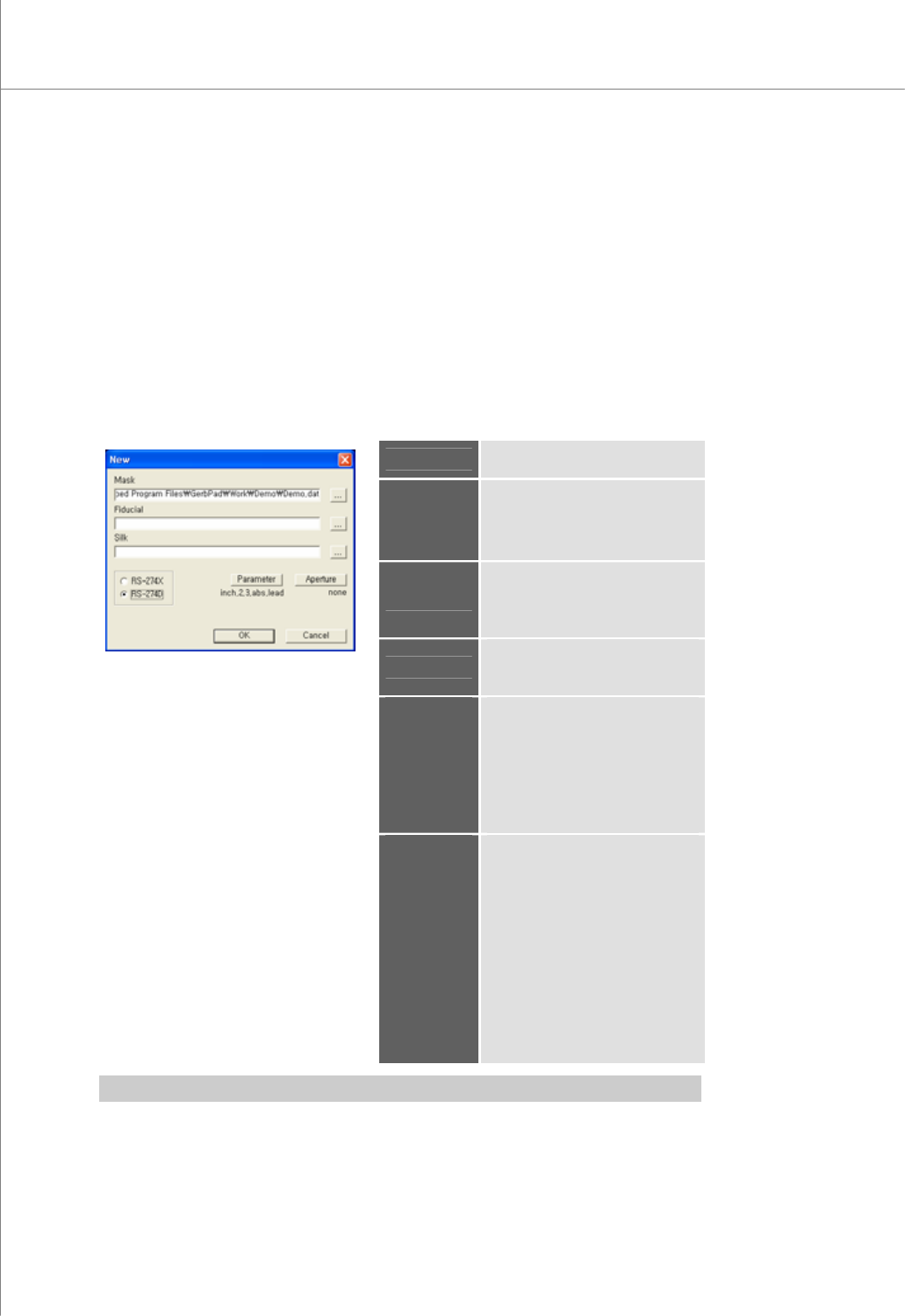

The “New” Dialog Box
Mask
Specify a path for a stencil mask
file.
Fiducial
Specify a path for a fiducial file.
※ Note: This is needed only
when fiducial marks exist in
another file.
Silk
Specify a path for a silk file.
This is needed for entering a part
reference code with silk data.
Format
Select a Gerber file format.
Available Formats: RS-274X, RS-
274D
Parameter
If the Parameter dialog box
appears,
select or specify Gerber
parameters.
※ Note: It is activated only when
the Gerber format is set to "RS-
274D".
Aperture
If the "Aperture" dialog box
appears,
load aperture data.
The load status is indicated under
the button as follows:
set: Aperture data has been
loaded.
none: Aperture data has not been
loaded.
※ Note: Activated only when the
Gerber format is set to "RS-
274D".
※ Note: You should specify Gerber parameters before loading aperture data.
