Programmers Manual
| 27
7) Information
Open the "Information" dialog box to display information on the current work file.

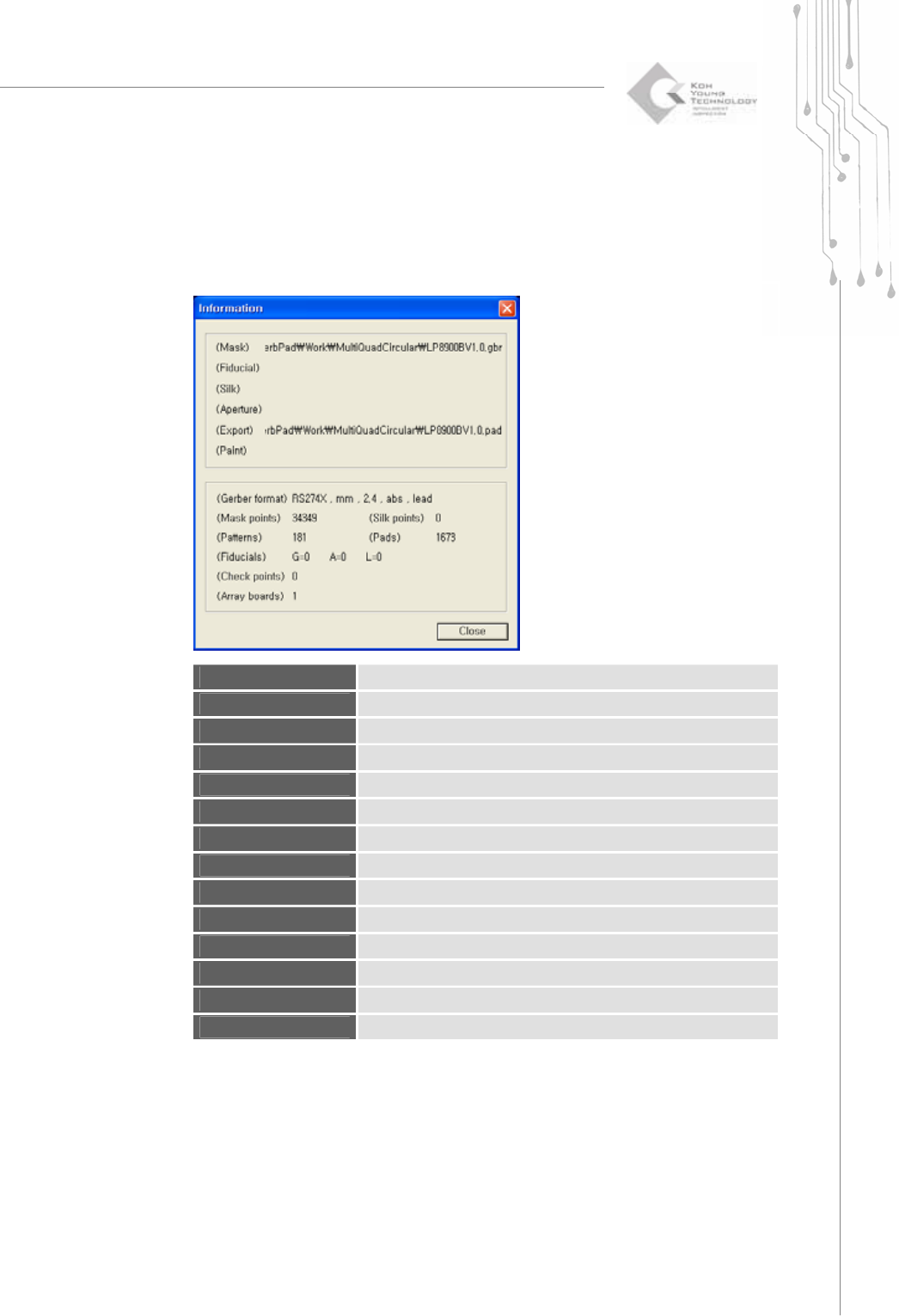

The “Information” Dialog Box
(Mask)
The path for a mask Gerber file
(Fiducial)
The path for a fiducial Gerber file
(Silk)
The path for a silk Gerber file
(Aperture)
The path for an aperture file
(Export)
The path for a pad file
(Paint)
The path for a picture file
(Gerber Format)
The Gerber file format and parameters
(Mask points)
The number of points in a mask Gerber file
(Silk points)
The number of points in a silk Gerber file
(Patterns)
The number of patterns
(Pads)
The number of pads
(Fiducials)
The number of each fiducial type (G: global, A: array, L: local)
(Check Points)
The number of check points
(Array Boards)
The number of array boards
28 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
8) Exit (Alt + X)
Exit the program.

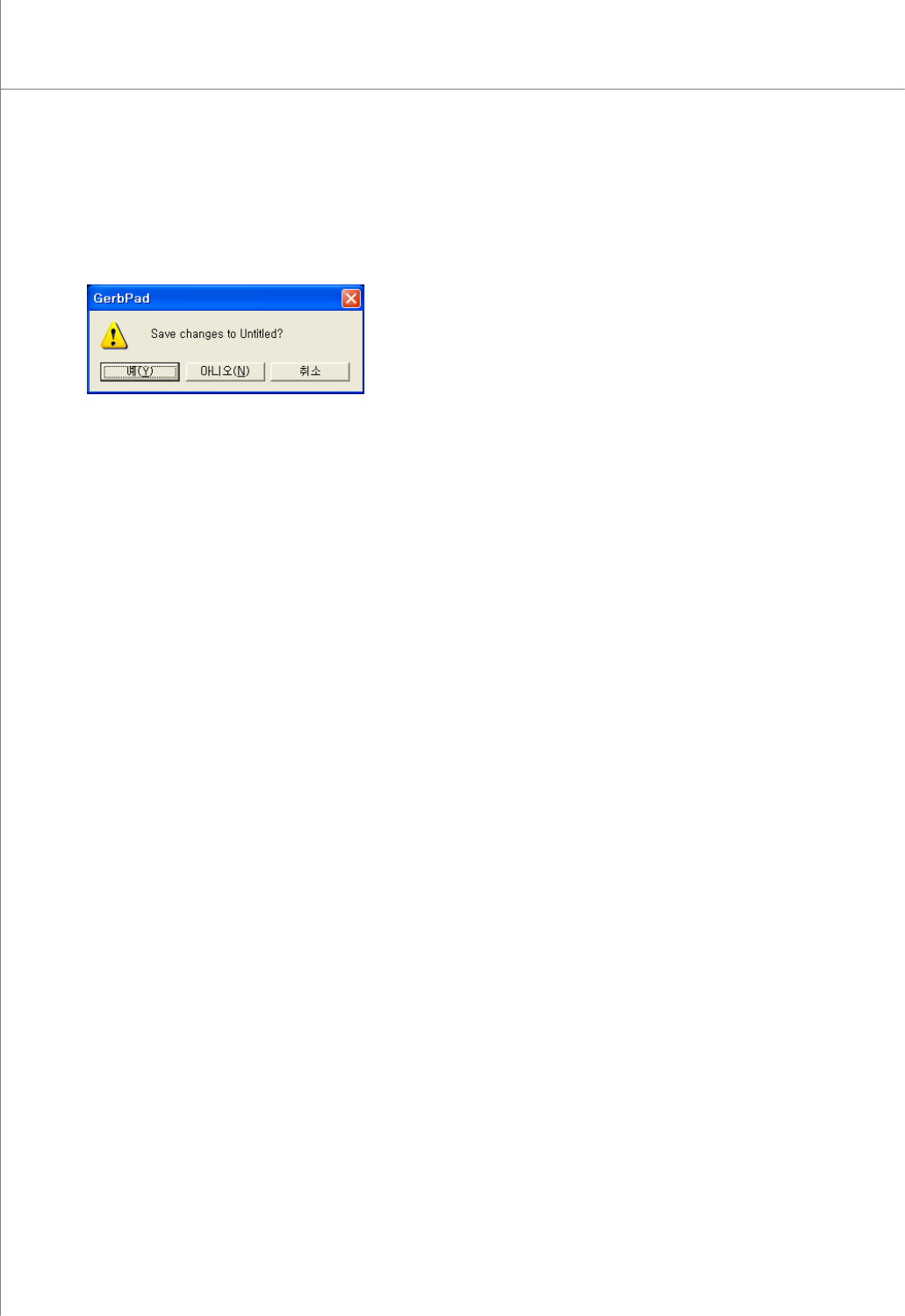

If you exit the program without saving your data, the save confirmation window
appears as follows:
Click the Yes button to save the file and exit the program.
Click the No button to exit the program without saving the file.
Click the Cancel button to return to the previous screen.
Programmers Manual
| 29
1.3.2. Select
1) Flash (Ctrl + F)
Change the mouse pointer mode to Flash Selection mode.
You can select flash(es) to perform the following tasks:
1) To add a pattern : Choose "Edit ▶ Add Pattern" in the menu bar.
2) To set the origin : Choose "Setup ▶ Origin" in the menu bar.
3) To add a fiducial : Choose "Setup ▶ Add Fiducial" in the menu bar.
4) To create an edge trace : Choose "Edit ▶ Edge Trace" in the menu bar.
You can select or unselect flash(es) as follows:
1) To select a flash: Click your mouse over a flash.
2) To select all flashes: Drag your mouse around the flashes that you want to select.
All flashes contained in the rectangle created by the mouse drag will be selected.
3) To unselect a flash: Click your mouse again over the selected flash.
4) To unselect all flashes: Choose "Select ▶ Unselect" in the menu bar or use “ESC”.
※ Note: In Flash Selection mode, you cannot select a flash that has already been registered as a
pad.

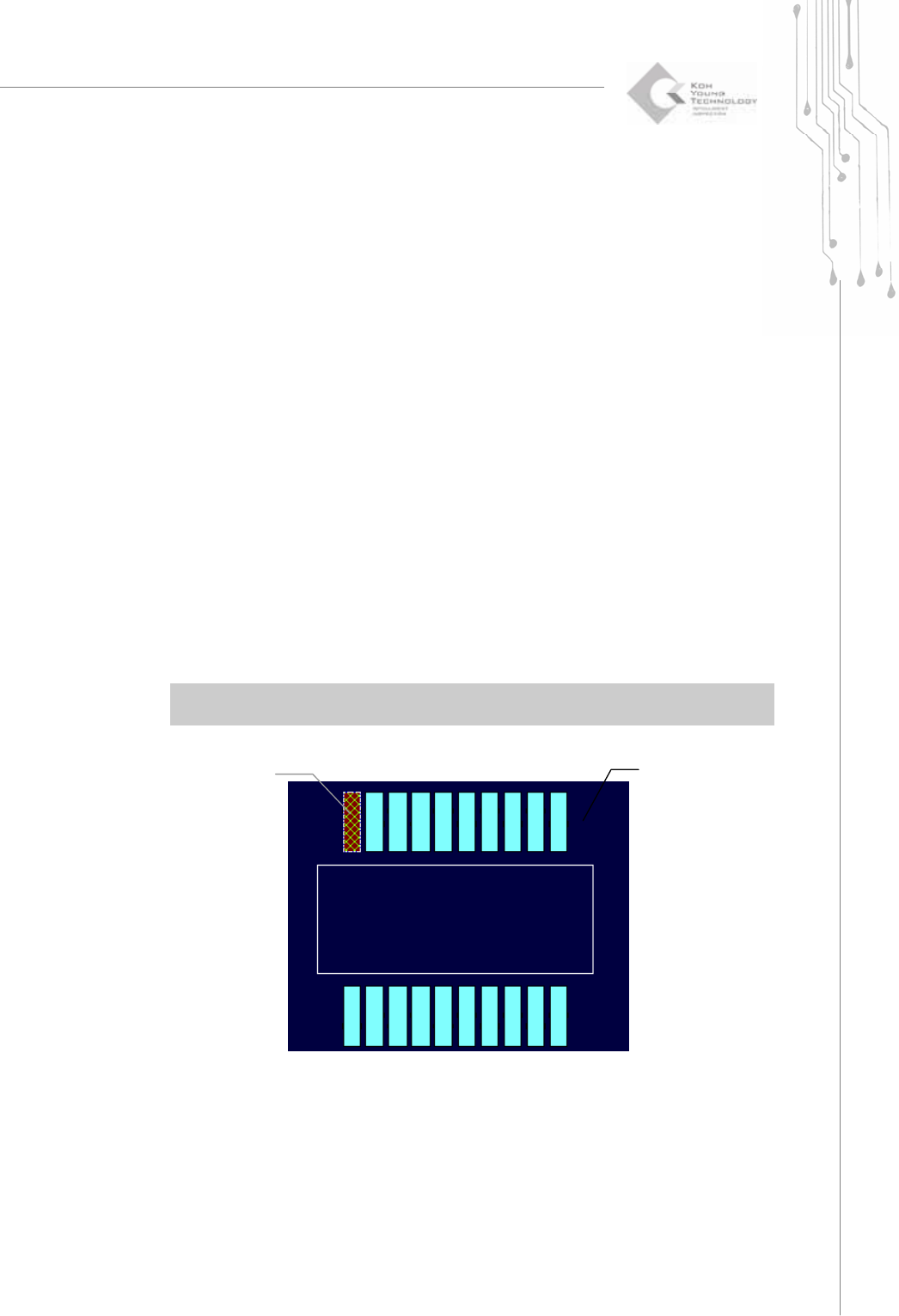

A Selected Flash
A Flash
