Add Fiducial
Enter fiducial data( currently not used)
Edit Fiducial
Edit fiducial data( currently not used).
Add Check Point
Add a check point.
Edit Check Point
Edit a check point.
5)
Edge-Trace
Retrieve only the contour lines of
the selected flash(es) and trace(s)
to create a trace.
1.1.6. Status Bar
The X-coordinate of the mouse
pointer.
The Y-coordinate of the mouse
pointer.
The coordinate unit.
Available Units: mm and inches
1)
Show the current operation
mode.
Programmers Manual
| 9
1.1.7. Pad Bar
1) Full Display of the Pad Bar.
2) Pad List
Pad
Sort the list in ascending order of pad numbers.
Pattern
Sort the list in ascending order of pattern numbers.
S
Sort the list in ascending order of shape numbers.
Ref
Sort the list in ascending order of reference codes.
※ Note: The available shape types are as follows:
y R – Rectangle,
y C-Circle,
y D-Rounded Rectangle,
Pad List
Quantity Data
The Data for the
Selected
Pattern and
Pad
Pattern
Pad
Ref
10 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
y O-Oblong,
y U-Undefined,
y P- Sloped Rectangle (A pad sloped by clockwise),
y N- Sloped Rectangle (A pad sloped by counterclockwise)

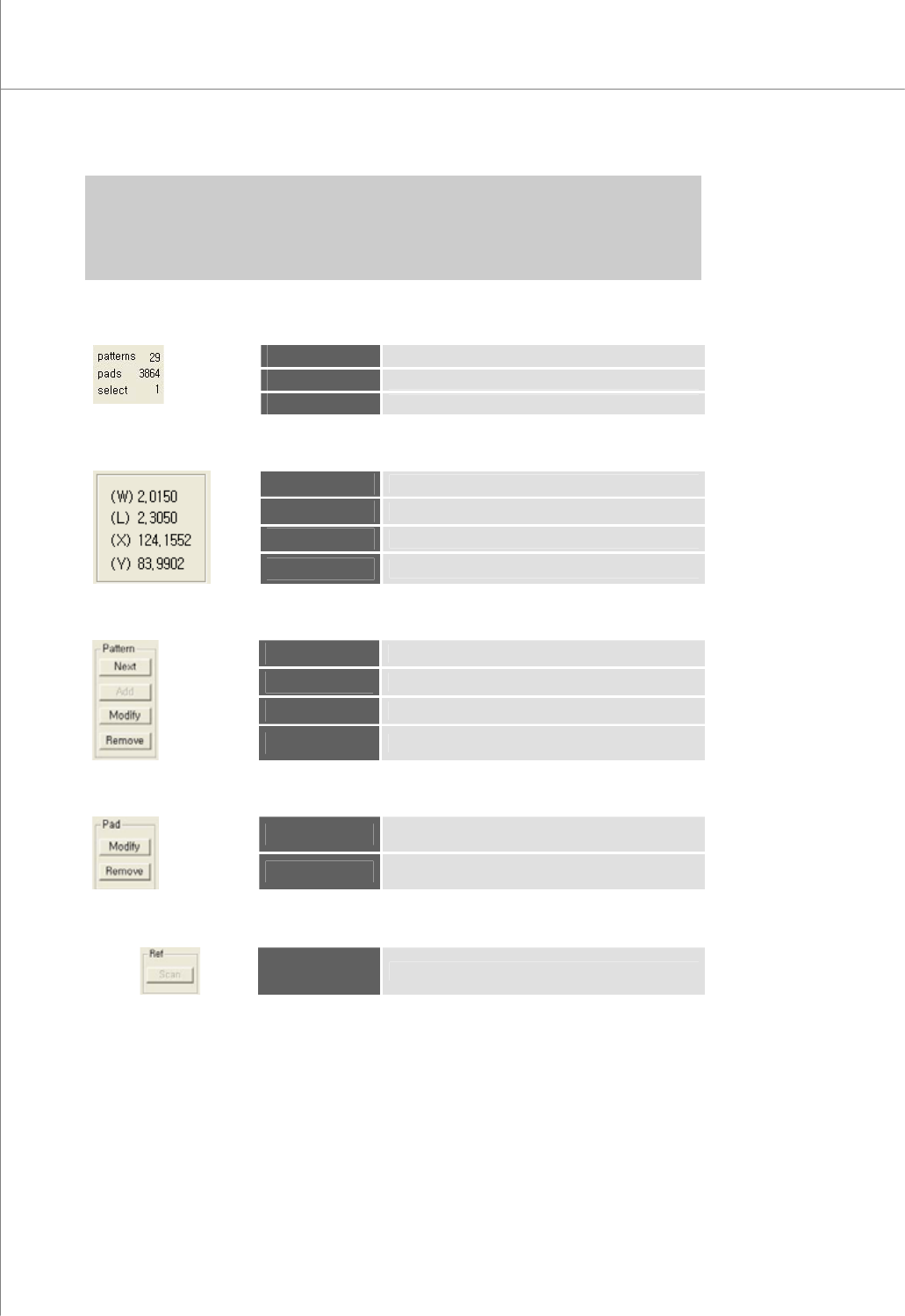

3) Quantity Data
patterns
The total number of patterns
pads
The total number of pads
select
The number of the selected pads
4) The Data for the Selected Pad
(W)
The width of the pad
(L)
The Length of the pad
(X)
The center point (X-coordinate) of the pad
(Y)
The center point (Y-coordinate) of the pad
5) Pattern
Next
Select a pad for the next pattern number.
Add
Add a pattern.
Modify
Modify the selected pattern(s).
Remove
Remove the selected pattern(s).
6) Pad
Modify
Modify the selected pad(s).
Remove
Remove the selected pad(s).
7) Ref
Scan
Scan reference codes for a part.
