PART NAME REMARKS Q'TY 25 ｶｰﾄﾘｯｼﾞ部<52mm, R80X6> CARTRIDGE S ECT.<52mm,R80X6> ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 214 104693021407 PACK STAND ﾊﾟｯｸｽﾀﾝﾄﾞ 6 215 104693013701 BASKET ﾊﾞｽｹｯﾄ 1 21…

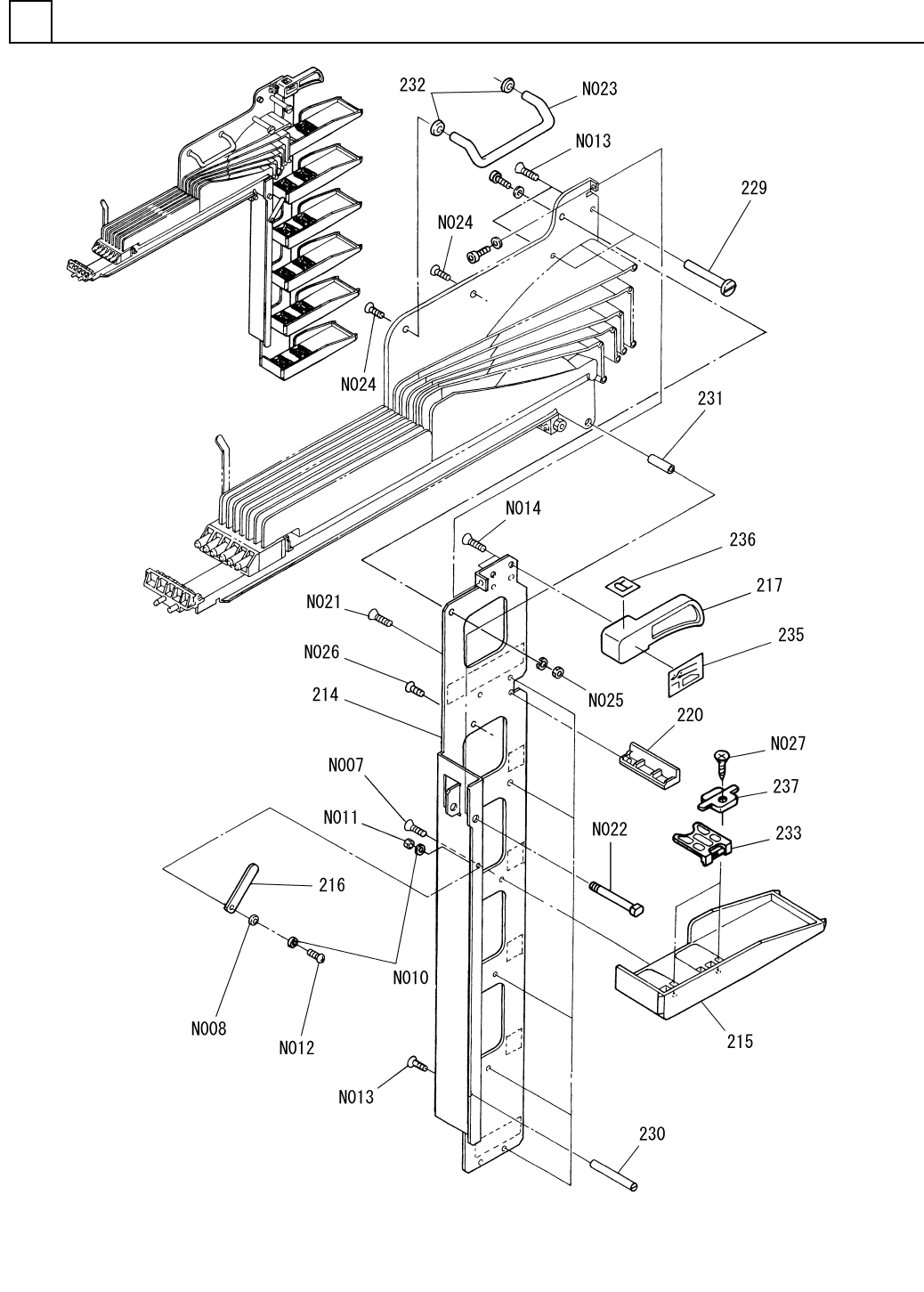

ｶｰﾄﾘｯｼﾞ部<52mm,R80X6>
CARTRIDGE SECT.<52mm,R80X6>
25
F10469-30-200-AJ_01-2
M241
PART NAME
REMARKS
Q'TY
25
ｶｰﾄﾘｯｼﾞ部<52mm,R80X6>
CARTRIDGE SECT.<52mm,R80X6>
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1214 104693021407
PACK STAND ﾊﾟｯｸｽﾀﾝﾄﾞ
6
215 104693013701
BASKET ﾊﾞｽｹｯﾄ
1
216 1046930116
PLATE ﾌﾟﾚｰﾄ
1217 102072901701
HANDLE ﾊﾝﾄﾞﾙ
1220 1020730028
PLATE ﾌﾟﾚｰﾄ
2
229 104693012902
TAPE GUIDE ﾃｰﾌﾟｶﾞｲﾄﾞ
1
230 104693013002
TAPE GUIDE ﾃｰﾌﾟｶﾞｲﾄﾞ
1231 1046930131
COLLAR ｶﾗｰ
2232 1046930132
WASHER ｻﾞｶﾞﾈ
12
233 104693013801
PIN ﾋﾟﾝ
1235 1046930135
LABEL ﾗﾍﾞﾙ
1236 1046930236
LABEL ﾗﾍﾞﾙ
12
237 1046930139
PLATE ﾌﾟﾚｰﾄ
4X25 A2S (Trivalent)
12
N007
N510018756AA
FLUSH HEAD TAPPING SCREW ｻﾗﾀｯﾋﾟﾝﾈｼﾞ
3X3
1
N008
N986YYYY-437
SPACER ｽﾍﾟｰｻ
3 10H A2S (Trivalent)
2
N010
N510018495AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3-6H-4T A2S (Trivalen
1
N011
N510017850AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X10-4.8 A2S (Trivale
1
N012
N510018037AA
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ
M4X8,+,STEEL,T.T.C
3
N013
XSS4+8FT
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
5X20 A2S (Trivalent)
2
N014
N510018757AA
FLUSH HEAD TAPPING SCREW ｻﾗﾀｯﾋﾟﾝﾈｼﾞ
4X10 A2S (Trivalent)
1
N021
N510018753AA
FLUSH HEAD TAPPING SCREW ｻﾗﾀｯﾋﾟﾝﾈｼﾞ
CLBP8-39
1
N022
N986CLBP839
PIN ﾋﾟﾝ
THA-32-3878
1
N023
N982THA3878
DRAWER PULL ﾄｯﾃ
M5X10,+,STEEL,T.T.C
2
N024
XSS5+10FT
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M4-6H-4T A2J (Trivalen
1
N025
N510017855AA
NUT ﾅｯﾄ
M4X8,+,STEEL,C.P
1
N026
XSS4+8FC
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
3X8 A2S (Trivalent)
12
N027
N510018752AA
FLUSH HEAD TAPPING SCREW ｻﾗﾀｯﾋﾟﾝﾈｼﾞ
