PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部4) COVER SECT. (Z-AXIS COVER SECT .-4) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 708 1087102708 SIDE COVER ( L) ｻｲﾄﾞｶﾊﾞｰ(L) 1 718 1087102718 COVER(LEFT) ｶﾊﾞｰ(LEFT) 1 73…

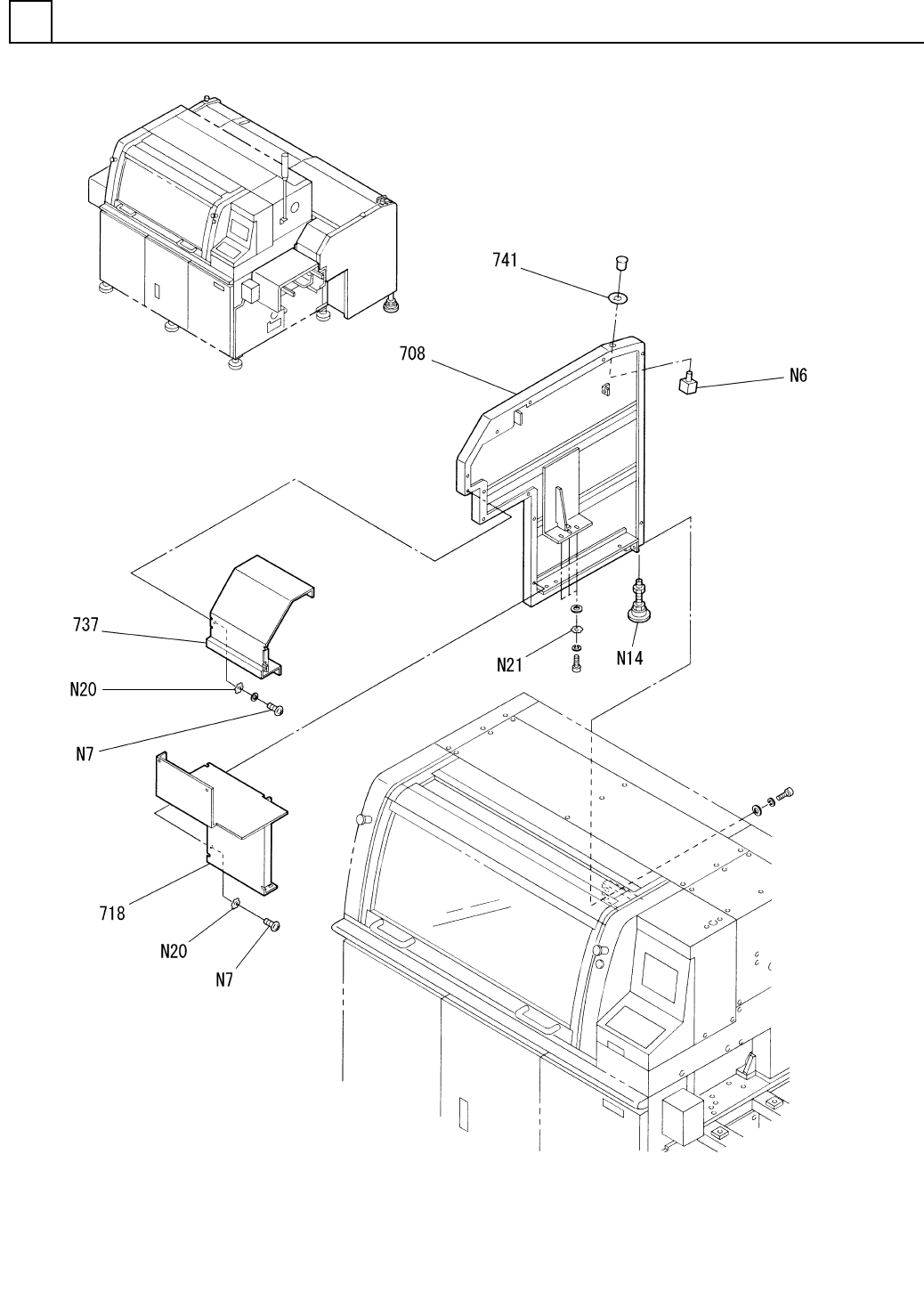

ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部4)
COVER SECT.(Z-AXIS COVER SECT.-4)
2
F10871-02-700-4
M45
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部4)
COVER SECT.(Z-AXIS COVER SECT.-4)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1708 1087102708
SIDE COVER (L) ｻｲﾄﾞｶﾊﾞｰ(L)
1
718 1087102718
COVER(LEFT) ｶﾊﾞｰ(LEFT)
1
737 1087102737
FRONT COVER(LEFT) ﾌﾛﾝﾄｶﾊﾞｰ(LEFT)
1741 3086239031
LABEL ﾗﾍﾞﾙ
M22-PV/K02 S
1
N 6
N306M22PVK02
SWITCH ｽｲｯﾁ
M5X12,+,STEEL,Z.C.T
7
N 7
XST5+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
TM-257-4(6214)
1
N 14
N982TM6214
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
5,B-TYPE,STEEL,Z.C.T
17
N 20
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
6,B-TYPE,STEEL,Z.C.T
3
N 21
XWC6BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
