空圧制御部 (1) PNEUMATIC S YSTEM SECT.(1) 1 F10871-03-000-AE_A -1 P1
Ｐ
空
圧
制
御
部
品
PNEUMATIC PARTS
FHQ000500B
空圧制御部(1)
PNEUMATIC SYSTEM SECT.(1)
1
F10871-03-000-AE_A-1
P1
PART NAME
REMARKS
Q'TY
1
空圧制御部(1)
PNEUMATIC SYSTEM SECT.(1)

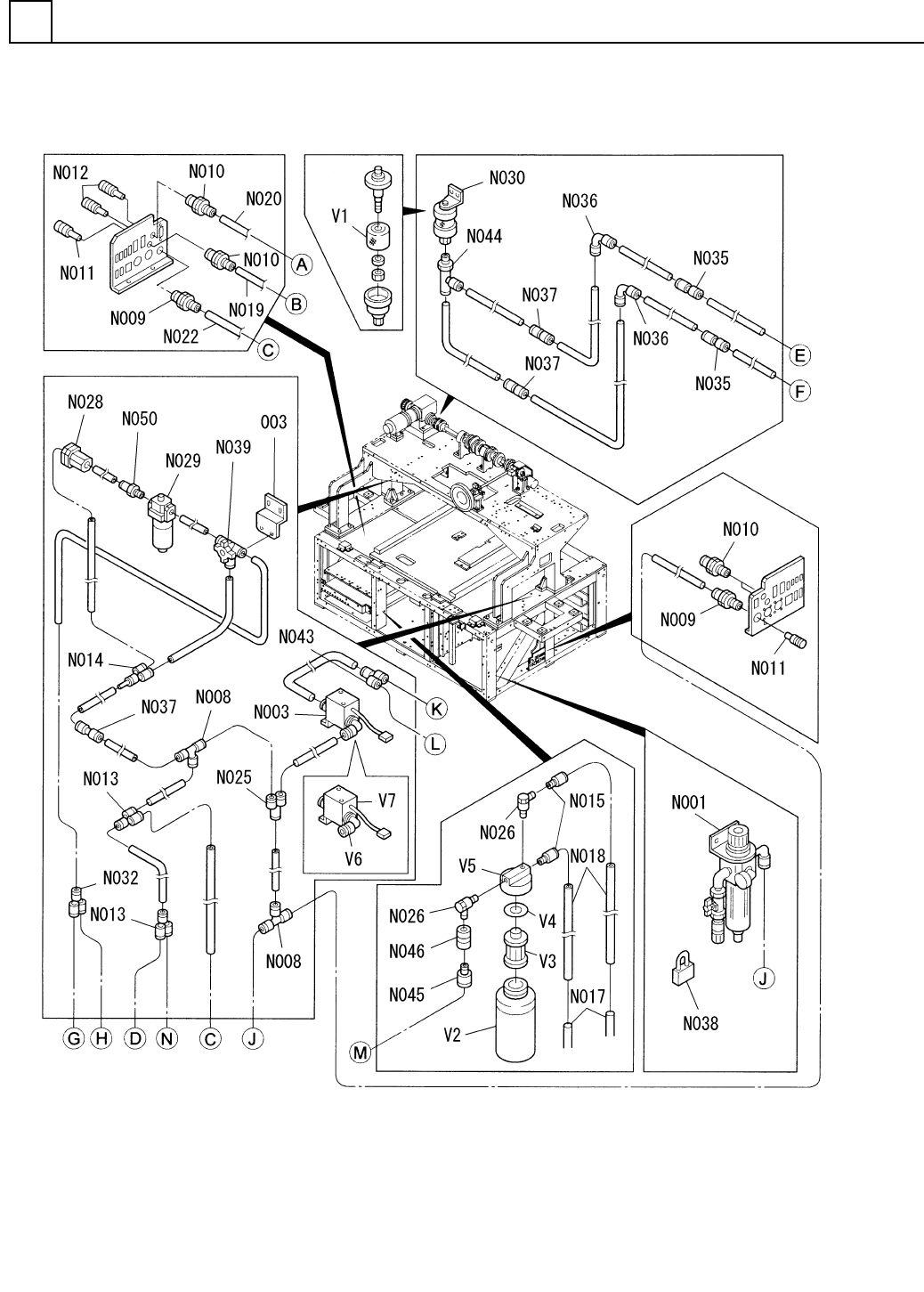

ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087103000
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷﾞｮﾕﾆｯﾄ
1
003 1046951205
BRACKET ﾌﾞﾗｹｯﾄ
NK-80536-2
1
N001
N411NK805362
OIL MIST SEPARATOR WITH/R ｵｲﾙﾐｽﾄｾﾊﾟﾚｰﾀﾚｷﾞｭﾚｰﾀ
NK-80533-1
1
N003
N411NK805331
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KQ2T10-00
2
N008
N431KQ2T1000
FITTING ﾂｷﾞﾃ
KQ2E10-00
2
N009
N431KQ2E1000
FITTING ﾂｷﾞﾃ
KQ2E06-00
4
N010
N431KQ2E0600
FITTING ﾂｷﾞﾃ
KQ2P-10
2
N011
N433KQ2P10
PLUG ﾌﾟﾗｸﾞ
KQ2P-06
2
N012
N433KQ2P06
PLUG ﾌﾟﾗｸﾞ
KQ2U10-00
2
N013
N431KQ2U1000
FITTING ﾂｷﾞﾃ
KQ2X06-08
1
N014
N431KQ2X0608
FITTING ﾂｷﾞﾃ
KQ2H12-03S
2
N015
N431KQ2H-152
FITTING ﾂｷﾞﾃ
D6.0XD10.0
1
N017
N434YYYY-003
TUBE ﾁｭｰﾌﾞ
TF225
1
N018
N434TF225
TUBE ﾁｭｰﾌﾞ
30-06,YELLOW
1
N019
N4356UHY
TUBE ﾁｭｰﾌﾞ
30-06,BLACK
1
N020
N4356UHK
TUBE ﾁｭｰﾌﾞ
30-10,BLACK
1
N022
N435AUHK
TUBE ﾁｭｰﾌﾞ
KQ2U10-99
1
N025
N431KQ2U1099
FITTING ﾂｷﾞﾃ
LN-3-3
2
N026
N431LN33
FITTING ﾂｷﾞﾃ
AKH06B-02S
1
N028
N413AKH0-421
VALVE ﾊﾞﾙﾌﾞ
AL20-02B
1
N029
N510000725AA
LUBRICATOR ﾙﾌﾞﾘｹｰﾀ
AMC220-02B
1
N030
N418AMC2-007
EXHAUST UNIT FOR OIL MIST ｴｷｿﾞｰｽﾄｸﾘｰﾅ
KQ2U06-00
1
N032
N431KQ2U0600
FITTING ﾂｷﾞﾃ
KQ2N06-08
2
N035
N431KQ2N0608
FITTING ﾂｷﾞﾃ
KQ2L08-99
2
N036
N431KQ2L0899
FITTING ﾂｷﾞﾃ
KQ2H08-10
3
N037
N431KQ2H0810
FITTING ﾂｷﾞﾃ
C-555-35
1
N038
N980C55535
KEY ｷｰ
HBV6-6
1
N039
N413HBV66
VALVE ﾊﾞﾙﾌﾞ
KQ2LU10-00
1
N043
N431KQ2L-245
FITTING ﾂｷﾞﾃ
KQ2Z10-02S
1
N044
N431KQ2Z-195
FITTING ｴﾙﾎﾞ
CPP20-12CB
1
N045
N431CPP2-235
FITTING ﾂｷﾞﾃ
CPS20-03B
1
N046
N431CPS2003B
FITTING ﾂｷﾞﾃ
KQ2H06-02S
1
N050
N431KQ2H-180
FITTING ﾂｷﾞﾃ
AMC-EL2
1V 1 N418AMCEL2
ELEMENT ｴﾚﾒﾝﾄ
21590065
1V 2 N45221590065
BOTTLE ﾎﾞﾄﾙ
13242
1
V 3 N45213242
FILTER ELEMENT ﾌｨﾙﾀｴﾚﾒﾝﾄ
13244
2
V 4 N45213244
GASKET ｶﾞｽｹｯﾄ
13243
1V 5 N45213243
CAP ｷｬｯﾌﾟ
KQ2L06-99
1V 6 N431KQ2L0699
FITTING ﾂｷﾞﾃ
VQ31A1-5GZ-C10-F-Q
1
V 7 N411VQ31-936
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
P2
F10871-03-000-AE_A-1
