ｶﾊﾞｰ部(Z軸4) COVER SECT. (Z-AXIS-4) 2 F10871-02-300-AF-4 M29

100%1 / 296
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2
ｶﾊﾞｰ部(Z軸3)
COVER SECT.(Z-AXIS-3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1303 108710230303
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
315 1087102315
FRONT COVER ｶﾊﾞｰ(FRONT)
1
323 1087102323
COVER ｶﾊﾞｰ
1332 1087102332
COVER(R) ｶﾊﾞｰ(R)
1342 1087102342
BRACKET(R) ﾌﾞﾗｹｯﾄ(R)
1
351 3086239031
LABEL ﾗﾍﾞﾙ
M22-PV/K02 S
1
N 6 N306M22PVK02
SWITCH ｽｲｯﾁ
M5X12,+,STEEL,Z.C.T
7N 8 XST5+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4,1-TYPE,STEEL,Z.C.T
6N10 XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
#5104A 10mm
1
N11 N986N051-489
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
D4DS-2AFS S
1N14 N300D4DS2AFS
SWITCH ｽｲｯﾁ
SC-6
1N16 N300SC6
CONNECTOR ｺﾈｸﾀ
TM-257-4(6214)
1
N17 N982TM6214
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
C-158-3
1
N21 N980C1583
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
4,B-TYPE,STEEL,Z.C.T
1N22 XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
5,B-TYPE,STEEL,Z.C.T
13N23 XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
6,B-TYPE,STEEL,Z.C.T
3
N24 XWC6BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
APN122DNS
1
N26 N223APN1-065
LAMP ﾗﾝﾌﾟ
M28
F10871-02-300-AF-3
ｶﾊﾞｰ部(Z軸4)
COVER SECT.(Z-AXIS-4)
2
F10871-02-300-AF-4
M29
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2

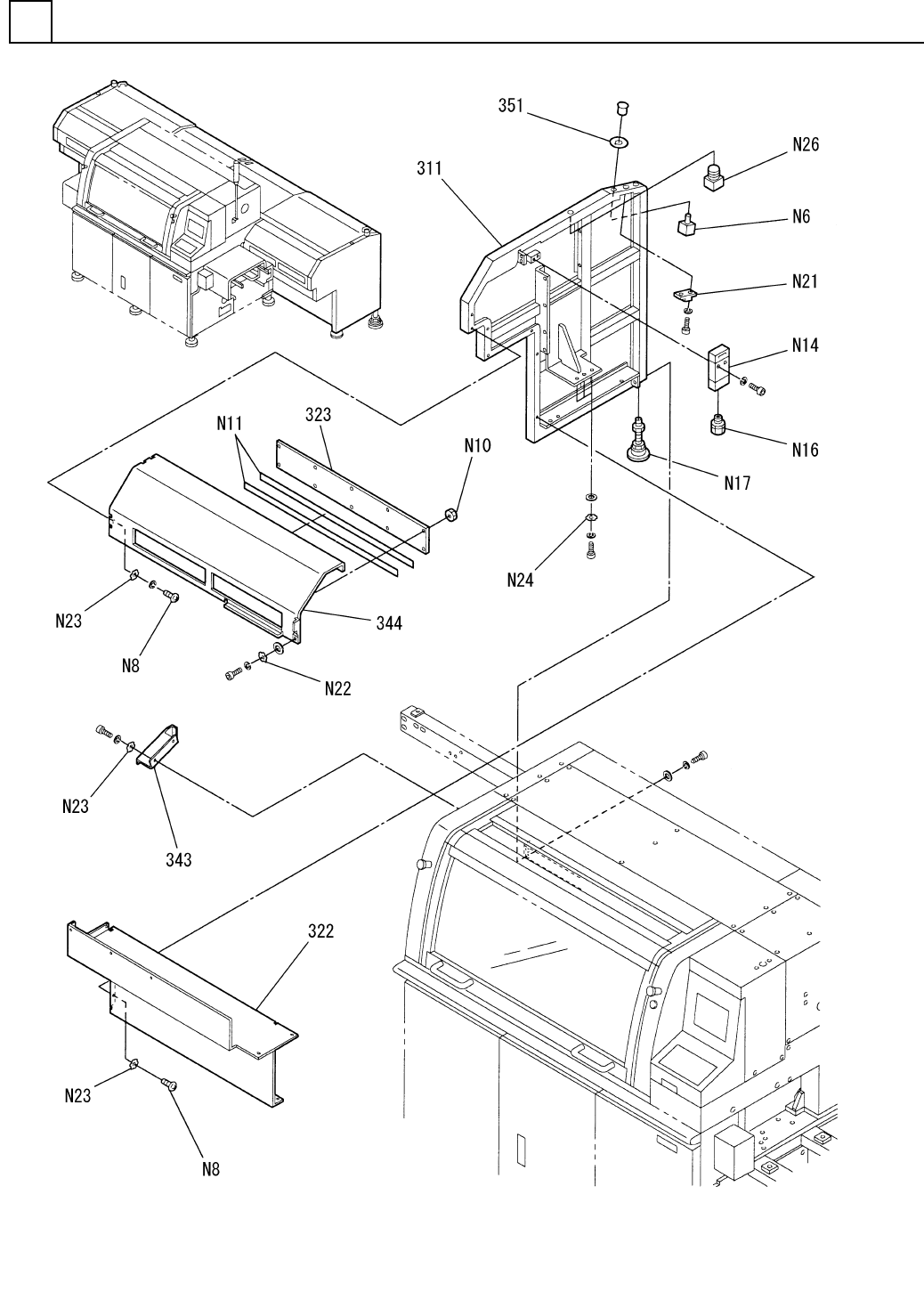

ｶﾊﾞｰ部(Z軸4)
COVER SECT.(Z-AXIS-4)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1311 108710231103
SIDE COVER (L) ｻｲﾄﾞｶﾊﾞｰ(L)
1
322 1087102322
COVER(L) ｶﾊﾞｰ(L)
1
323 1087102323
COVER ｶﾊﾞｰ
1343 1087102343
BRACKET(L) ﾌﾞﾗｹｯﾄ(L)
1344 108710234401
FRONT COVER ｶﾊﾞｰ(FRONT)
1
351 3086239031
LABEL ﾗﾍﾞﾙ
M22-PV/K02 S
1
N 6 N306M22PVK02
SWITCH ｽｲｯﾁ
M5X12,+,STEEL,Z.C.T
7N 8 XST5+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4,1-TYPE,STEEL,Z.C.T
6N10 XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
#5104A 10mm
1
N11 N986N051-489
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
D4DS-2AFS S
1N14 N300D4DS2AFS
SWITCH ｽｲｯﾁ
SC-6
1N16 N300SC6
CONNECTOR ｺﾈｸﾀ
TM-257-4(6214)
1
N17 N982TM6214
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
C-158-3
1
N21 N980C1583
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
4,B-TYPE,STEEL,Z.C.T
1N22 XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
5,B-TYPE,STEEL,Z.C.T
13N23 XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
6,B-TYPE,STEEL,Z.C.T
3
N24 XWC6BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
APN122DNS
1
N26 N223APN1-065
LAMP ﾗﾝﾌﾟ
M30
F10871-02-300-AF-4
