PART NAME REMARKS Q'TY 2 ｶﾊﾞ-部(6) COVER SECT. (6) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 008 108710200803 FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ 1 019 1044059662 LABEL ﾗﾍﾞﾙ 1 024 1083802082 OIL PAN ｵｲﾙﾊﾟﾝ 1 033 1046702086…

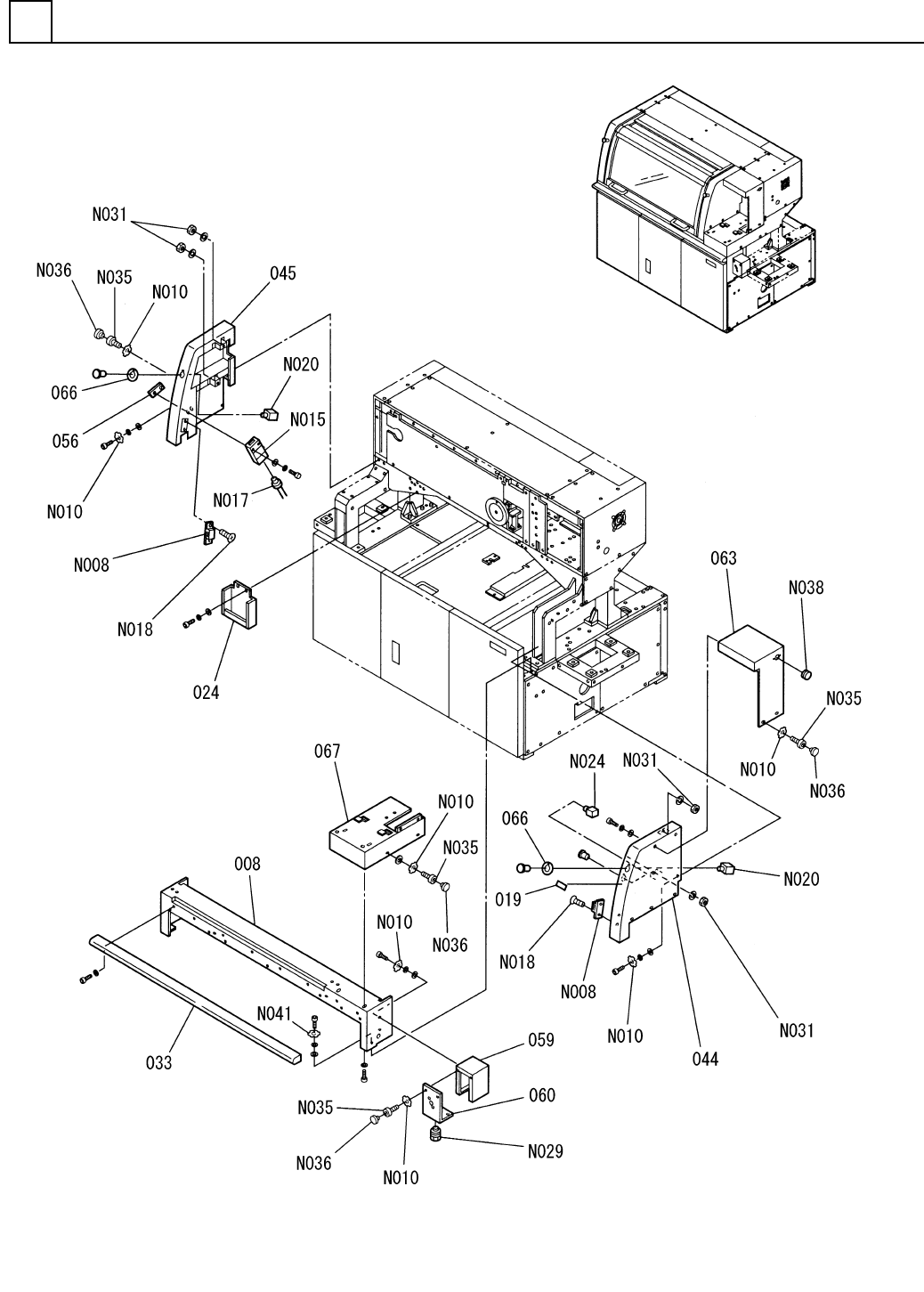

ｶﾊﾞ-部(6)
COVER SECT.(6)
2
F10871-02-000-AJ_01-6
M19
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞ-部(6)
COVER SECT.(6)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1008 108710200803
FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ
1
019 1044059662
LABEL ﾗﾍﾞﾙ
1
024 1083802082
OIL PAN ｵｲﾙﾊﾟﾝ
1033 1046702086
GUIDE ｶﾞｲﾄﾞ
1044 108710204404
SIDE COVER(RIGHT) ｻｲﾄﾞｶﾊﾞｰ(RIGHT)
1
045 108710204504
SIDE COVER(LEFT) ｻｲﾄﾞｶﾊﾞｰ(LEFT)
1
056 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1059 108710205902
BRACKET(SW) ﾌﾞﾗｹｯﾄ(SW)
1060 108710206001
BRACKET(SW) ﾌﾞﾗｹｯﾄ(SW)
1
063 108710206301
COVER(L) ｶﾊﾞｰ(L)
2066 3086239031
LABEL ﾗﾍﾞﾙ
1067 N210028756AA
FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ
C-100-B-2
2
N008
N980C100B2
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
5,B-TYPE,STEEL,Z.C.T
32
N010
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
D4DS-2AFS S
1
N015
N300D4DS2AFS
SWITCH ｽｲｯﾁ
SC-6
1
N017
N300SC6
CONNECTOR ｺﾈｸﾀ
M3X6,+,STEEL,Z.C.T
4
N018
XSS3+6FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M22-PV/K02 S
2
N020
N306M22PVK02
SWITCH ｽｲｯﾁ
M22-D-G-X1/K10 S
1
N024
N302M22D-544
SWITCH ｽｲｯﾁ
V-M32
1
N029
N348VM32
GROMMET ｸﾞﾛﾒｯﾄ
M5,1-TYPE,STEEL,Z.C.T
4
N031
XNG5AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
JB-AM5X8
8
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
8
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
C-30-SG-24A,WHITE
1
N038
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
6,B-TYPE,STEEL,Z.C.T
2
N041
XWC6BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M20
F10871-02-000-AJ_01-6
ｶﾊﾞｰ部(主操作盤）
COVER SECT.(MAIN CONTROL PANEL)
2
F10871-02-200-AE
M21
