ｶﾊﾞ-部(2) COVER SECT. (2) 2 F10871-02-000-AJ_0 1-2 M11

100%1 / 296
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2
ｶﾊﾞ-部(1)
COVER SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1 1087102000
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
1
010 108710201001
SIDE COVER (L) ｻｲﾄﾞｶﾊﾞｰ(L)
1
011 1087102011
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1014 108710201403
FRAME ﾌﾚｰﾑ
1028 108380201601
COVER ｶﾊﾞｰ
1
031 108710203102
BRACKET ﾌﾞﾗｹｯﾄ
1
037 1083802043
BRACKET ﾌﾞﾗｹｯﾄ
1038 1083802044
BRACKET ﾌﾞﾗｹｯﾄ
1051 108710205101
OIL PAN ｵｲﾙﾊﾟﾝ
2
054 1046951696
COVER ｶﾊﾞｰ
1055 1083802081
PLATE ﾌﾟﾚｰﾄ
1056 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1
058 108710205801
BRACKET ﾌﾞﾗｹｯﾄ
1
061 108710206101
SIDE COVER ｻｲﾄﾞｶﾊﾞｰ
4715KL-05W-B20-P00
1
N005
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
5,B-TYPE,STEEL,Z.C.T
17
N010
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
32
N011
XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4,1-TYPE,STEEL,Z.C.T
12
N014
XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
D4DS-2AFS S
1
N015
N300D4DS2AFS
SWITCH ｽｲｯﾁ
SC-6
1
N017
N300SC6
CONNECTOR ｺﾈｸﾀ
PG-47-02(8130)
2
N027
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X12,+,STEEL,Z.C.T
16
N028
XST4+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
4,NYLON
4
N032
N986YYYY-029
WASHER ｻﾞｶﾞﾈ
JB-AM5X8
17
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
17
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
1
N044
N510009488AA
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
PG-59-02
2
N045
N510005954AA
GUARD ｶﾞｰﾄﾞ
M10
F10871-02-000-AJ_01-1

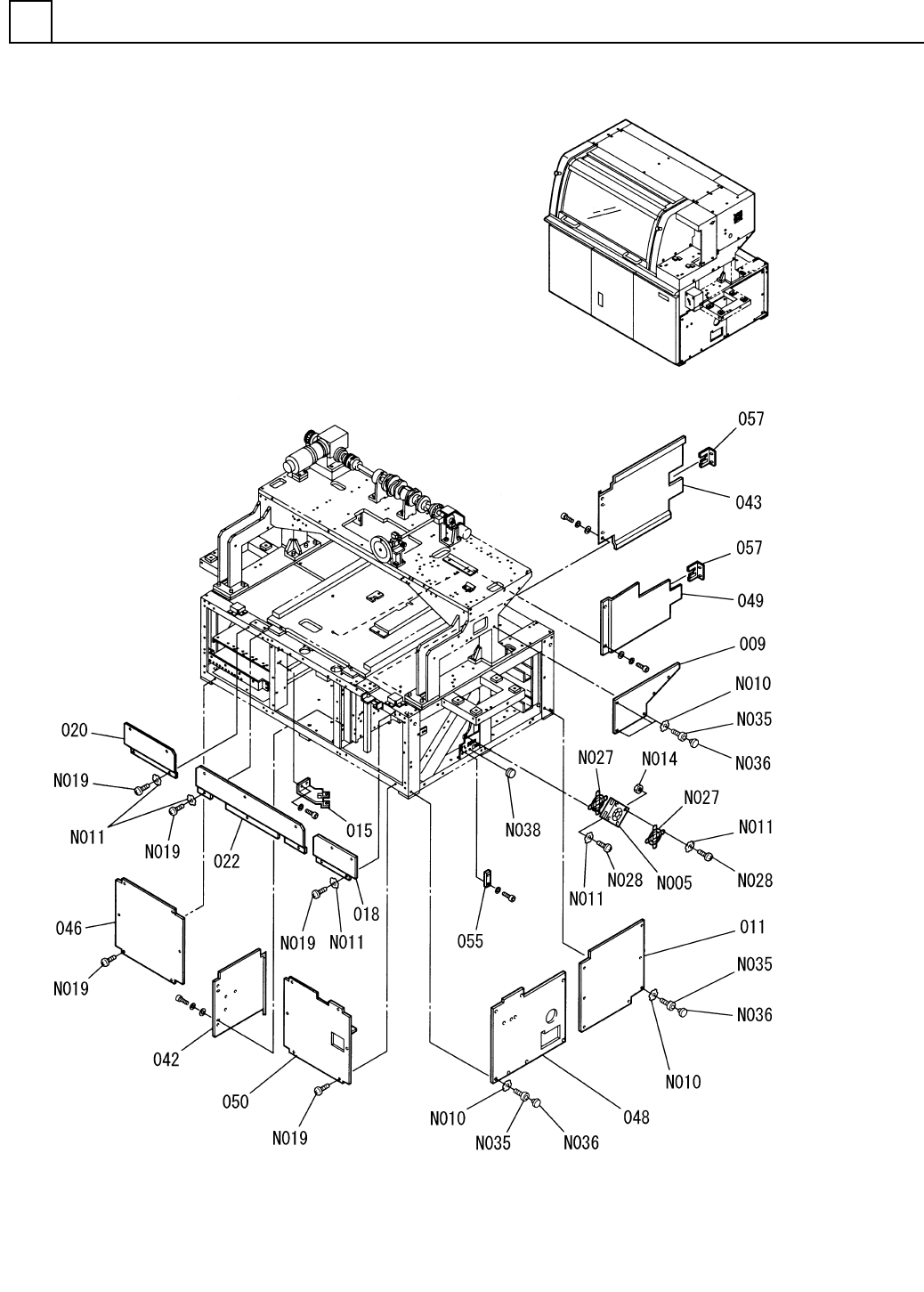

ｶﾊﾞ-部(2)
COVER SECT.(2)
2
F10871-02-000-AJ_01-2
M11
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2
ｶﾊﾞ-部(2)
COVER SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1009 108710200901
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
011 1087102011
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
015 1087102015
BRACKET ﾌﾞﾗｹｯﾄ
1018 108710201801
COVER ｶﾊﾞｰ
1020 108710202002
COVER ｶﾊﾞｰ
1
022 108710202201
COVER ｶﾊﾞｰ
1
042 108710204202
COVER ｶﾊﾞｰ
1043 108350204201
COVER ｶﾊﾞｰ
1046 108710204601
COVER(L) ｶﾊﾞｰ(L)
1
048 108710204801
SIDE COVER ｻｲﾄﾞｶﾊﾞｰ
1049 108380205702
COVER ｶﾊﾞｰ
1050 108710205003
COVER(R) ｶﾊﾞｰ(R)
1
055 1083802081
PLATE ﾌﾟﾚｰﾄ
2
057 1083502043
BRACKET ﾌﾞﾗｹｯﾄ
4715KL-05W-B20-P00
1
N005
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
5,B-TYPE,STEEL,Z.C.T
17
N010
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
16
N011
XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4,1-TYPE,STEEL,Z.C.T
8
N014
XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X10,+,STEEL,Z.C.T
26
N019
XST4+10FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
PG-47-02(8130)
2
N027
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X12,+,STEEL,Z.C.T
8
N028
XST4+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
JB-AM5X8
17
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
17
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
C-30-SG-24A,WHITE
1
N038
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
M12
F10871-02-000-AJ_01-2
